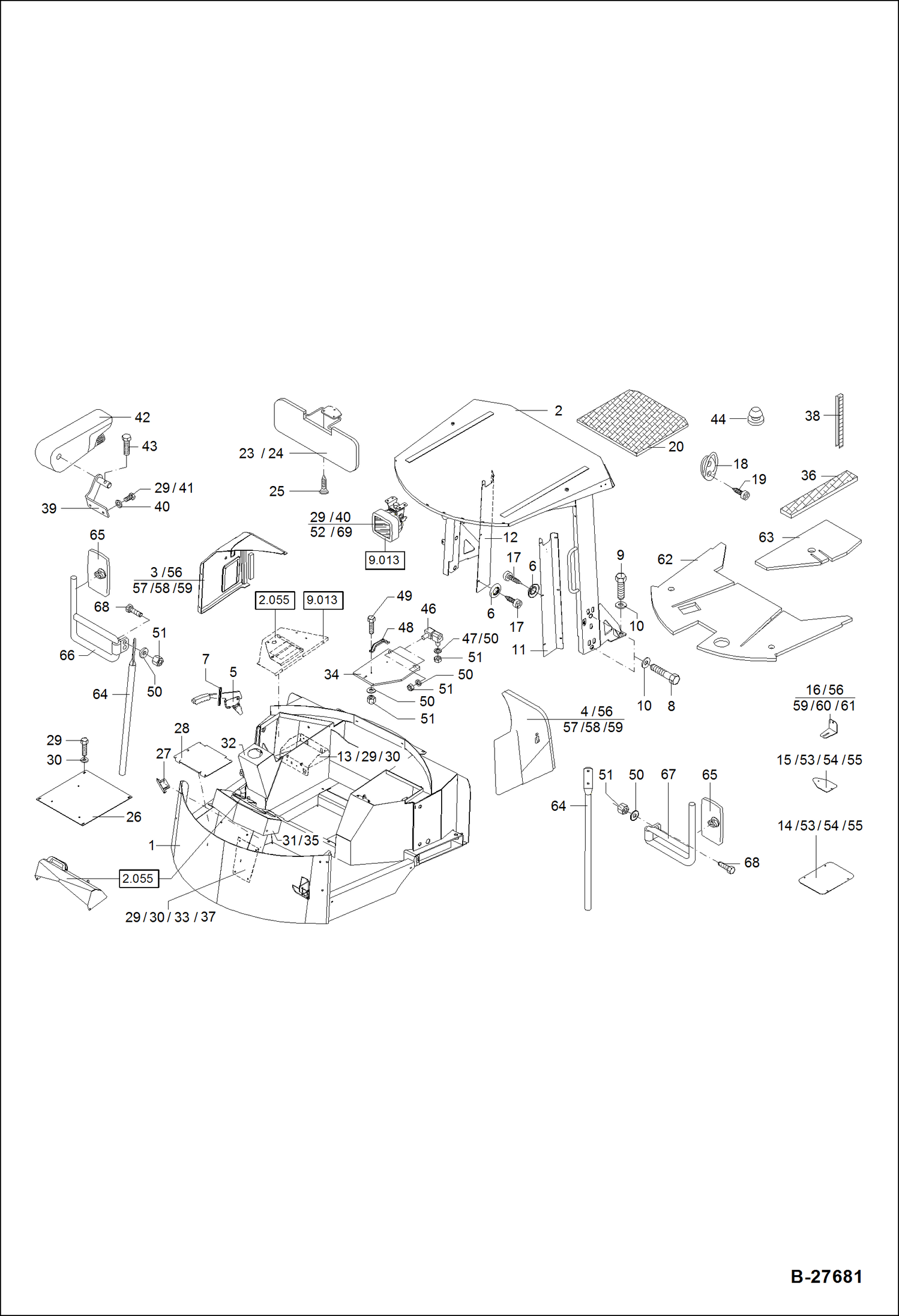

Запчасти Bobcat WL350 CANOPY - PLATFORM MAIN FRAME

1

6452741103

PLATFORM

2

6452741510

CANOPY, PROTECTION ROOF

3

5388665401

COVERING

4

5388665402

COVERING

5

5388665013

HAND BRAKE LEVER

6

5388662047

WASHER

7

5388665403

SEAL

8

1007707353

BOLT M 20X80

9

1008707552

BOLT M 20X40

10

1290707033

WASHER 21X37X3

11

6452741653

COVER, LEFT

12

6452741654

COVER, RIGHT

13

6452741656

BRACKET

14

6452741659

FLAP

15

6452741658

FLAP

16

8452741665

BRACKET Was 6452741665 - A

17

1087311208

BOLT 4.8X22

18

5354244600

HOOK

19

1117707324

BOLT 3,5X16

20

6452741591

INSULATION, CANOPY

23

5354601850

SUN VISOR

24

5354601851

COVER

25

1115707838

BOLT 4.8X16

26

6452741552

CAP

27

6452741581

PLATE, ANGLE

28

6452741580

CAP

29

1008707018

BOLT M 8X20

30

1343707057

WASHER 8,4

31

6452741650

CONSOLE

32

6452741648

CONSOLE

33

6452741655

CAP

34

8452741649

COVER Was 6452741649 - A

35

1069707912

BOLT M 6X16

36

5354640125

NEOPRENE STRIP

37

5050651343

CAP

38

5354600000

EDGE PROTECTION

39

6452741582

HOLDER

40

1290707018

WASHER 8,4

41

5558300004

GUARD CAP

42

5305661702

ARMREST, RIGHT

43

5305661749

BOLT

44

5653093572

BASE, RUBBER

46

5354620100

HINGE

47

1290707014

WASHER 6,4

48

5354576810

HANDLE

49

1008707912

BOLT M6X16

50

1343707055

WASHER 6,4

51

1212251009

NUT M 6

52

1212251011

NUT M 8

53

1045707906

SCREW M4X16

54

1290707010

WASHER 4,3

55

1212251006

NUT M 4

56

5526660001

NUT M 4.8

57

1069907609

BOLT M5X12

58

5526660008

NUT M5

59

1087311208

BOLT M4,8X22

60

1045707909

BOLT M5X16

61

1290707012

WASHER 5,3

62

0452741690

CARPET

63

0452741691

CARPET

64

0452741584

HOLDER

65

5653634770

MIRROR

66

5653634790

ROD, MIRROR RIGHT

67

5653634800

ROD, MIRROR LEFT

68

1008707513

BOLT M 6X25

69

5350661223

WORKING LIGHT Was 5350661215 - A
