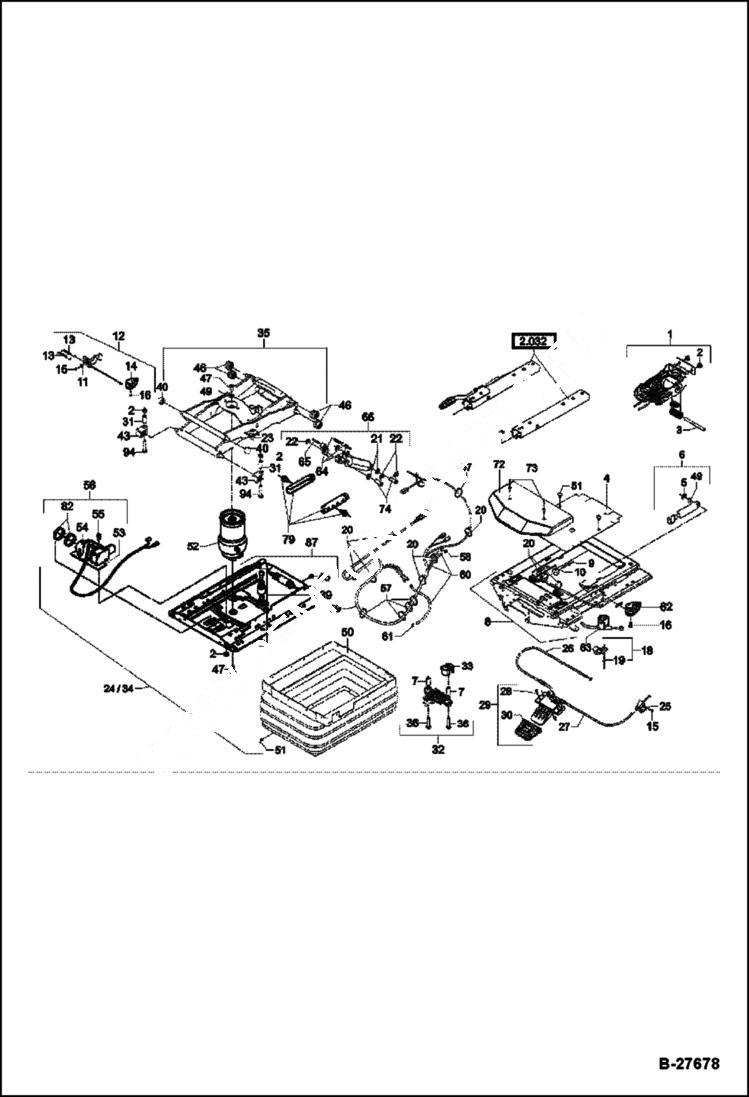

Запчасти Bobcat WL350 OPERATOR SEAT SUSPENSION - MSG 95 MAIN FRAME

1

5305670045

LEVEL CONTROL W/Ref. 2, 3, 15, 20, 25, 45, 51 & 57

2

NUT NLA - M 8

3

PIN NLA

4

5305670046

COVER W/Ref. 51

5

5305670228

WASHER 6,0

6

5305670269

SHOCK ABSORBER CPL. W/Ref. 5, 49 & 51

7

5305670048

BUSHING

8

5305670270

UPPER PART, CPL. W/Ref. 2, 10, 12, 19, 20, 46 & 51

9

1940000939

RIVET 4,8X15,5

10

5305670271

BUMPER CPL. W/Ref. 9

11

5305670209

WASHER 4,3

12

5305670272

STOP DEVICE CPL. W/Ref. 11, 13-15 & 51

13

5305670273

TENSION SPRING

14

5305670164

HANDLE CPL W/Ref. 16

15

BOLT NLA - M 3.5X12

16

5305670166

BOLT M 4X14

18

5305670167

STOP CPL W/Ref. 19 & 51

19

5305670168

RIVET 4X16,9

20

STRAP, TIE NLA

21

WASHER NLA

22

5305670131

WASHER

23

5305670029

STOP

24

5305670274

WEAR PARTS SET Ref. 2,7,10,19,20,23,31,33, 39,40,43,46,47,49,51,55,57,67 & 79

25

BRACKET NLA

26

5305670054

BOWDEN CABLE W/Ref. 28 & 51

27

5305670055

CABLE ASSY W/Ref. 15, 25 ,28 & 51

28

5305670026

BOLT M 5X16

29

5305670056

CONTROL UNIT W/Ref. 28, 30 & 51

30

5305670057

HANDLE

31

5305670171

PIPE

32

5305670275

SPRING CPL. W/Ref. 7, 10, 19, 31, 33, 36 & 51

33

5305670059

BUMPER

34

5305670295

SUSPENSION

35

5305670226

ROCKER CPL W/Ref. 2, 19-23 & 31

36

5305670279

BOLT M 8X30

39

5305670229

BUMPER CPL W/Ref. 2, 37, 38, 49 & 51

40

5305670230

ROLLER

43

5305670175

BEARING

45

BOLT NLA - M 5X10

46

5305670062

TRACK ROLLER

47

BOLT NLA - M 8X20

49

WASHER NLA

50

5305670063

COVERING W/Ref. 51

51

PLUG NLA

52

5305670276

GAS STRUT CPL. W/Ref. 20, 47, 49, 51 & 61

53

PAD, RUBBER NLA

54

BOW NLA

55

BOLT NLA - M 8X12

56

5305670277

COMPRESSOR CPL. W/Ref. 2, 20, 51, 53-55, 57 & 61

57

STRAP, TIE NLA

58

BUSHING NLA

59

5305670067

CABLE W/Ref. 20, 51 & 57

60

5305670278

HOSE CPL. W/Ref. 20, 51, 57, 58 & 61

61

CLAMP, HOSE NLA

62

5305670290

HANDLE W/Ref. 16, 19 & 20

63

5305670291

GUIDE

64

5305670292

SUPPORT W/Ref. 51

65

5305670293

BOWDEN CABLE

66

5305670294

SHOCK ABSORBER CPL. W/Ref. 21, 22, 51, 64 & 74

72

5305670181

COVER W/Ref. 73

73

5305670182

RIVET

74

PIN NLA

79

5305670184

STOP

82

CLAMP, HOSE NLA

87

5305670178

SEAT BOTTOM ASSY W/Ref. 2, 20, 43, 45-47, 51, 55, 79 & 94

94

PIN NLA
