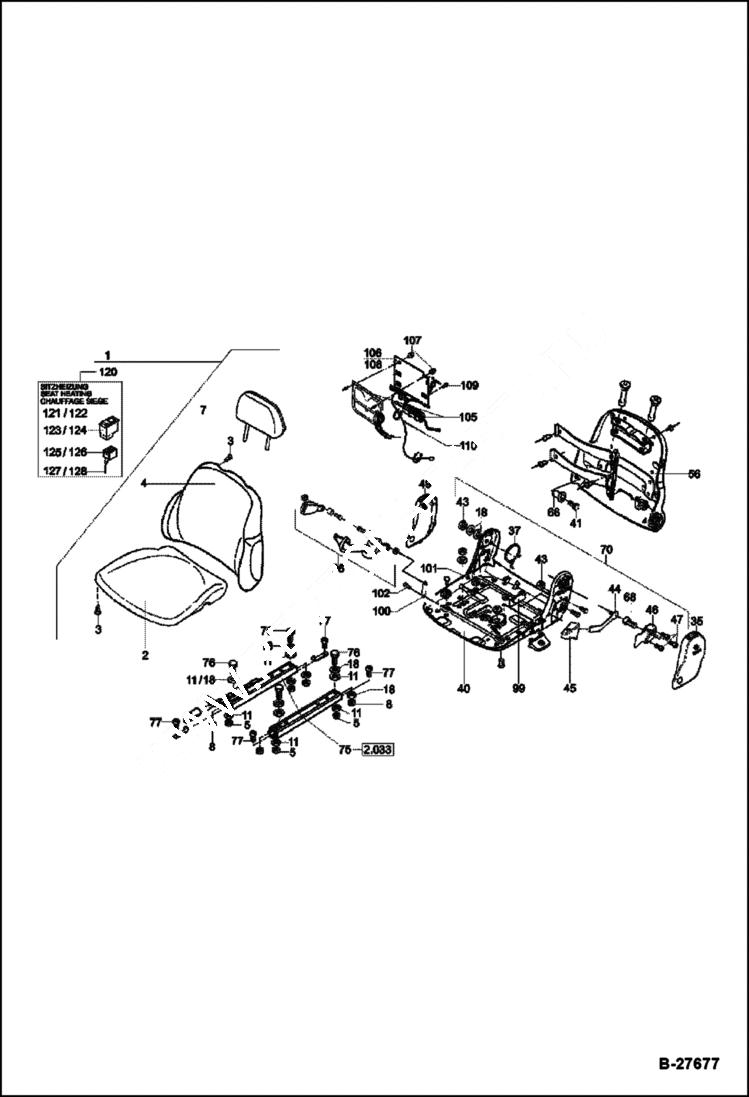

Запчасти Bobcat WL350 OPERATOR SEAT WITH VERTEBRA SUPPORT - MSG 95 MAIN FRAME

1

5305661764

OPERATOR'S SEAT Ref. 2-110

2

5305670236

CUSHION, SEAT

3

1008707909

BOLT M 5X16

4

5305670235

CUSHION, BACK OF SEAT

5

5305670106

NUT M 8

7

5305670007

HEADREST

8

1210707011

NUT M 8

11

5305670104

WASHER 8,4

18

5305670200

WASHER 8,4

35

5305670280

COVER

37

5305670244

SPRING

40

5305670281

SEAT BRACKET

41

1008707019

BOLT M 8X40

43

1212251011

NUT M 8

44

5305670035

LEVER

45

5305670036

HANDLE

46

5305670037

ADAPTER PLATE

47

5305670038

BOLT M 6X10

49

5305670282

COVER RIGHT

56

5305670283

PLATE

66

5305670284

BUSHING

68

5305670152

BOLT M 8X35

70

5305670247

ADJUSTING, BACK REST W/Ref. 18, 37, 41-47, 66 & 69

75

5305670241

ADJUST. RAIL

76

1008707817

BOLT M 8X16

77

5305670234

BOLT M 8X16

96

5305661715

LAP BELT

99

5305670285

BRACKET

100

5305670286

BRACKET

101

5305661676

NUT M 8

102

1008707019

BOLT M 8X40

105

5305670287

VERTEBRA SUPPORT

106

5305670288

PLATE

107

5305670029

STOP

108

5305670151

COVER

109

5305670134

RIVET

110

535670030

HARNESS, WIRE Was 5305670289 - A

120

6451313000

SEAT HEATING Ref. 121-128

121

5305670238

PAD For Ref. 120

122

5305670239

HEADREST For Ref. 120

123

5050650236

SWITCH For Ref. 120

124

5358650324

SYMBOL For Ref. 120

125

5050650225

HOUSING For Ref. 120

126

5350246805

TERMINAL FEMALE 6,3 - For Ref. 120

127

5653245100

CABLE For Ref. 120

128

5653245600

CABLE For Ref. 120
