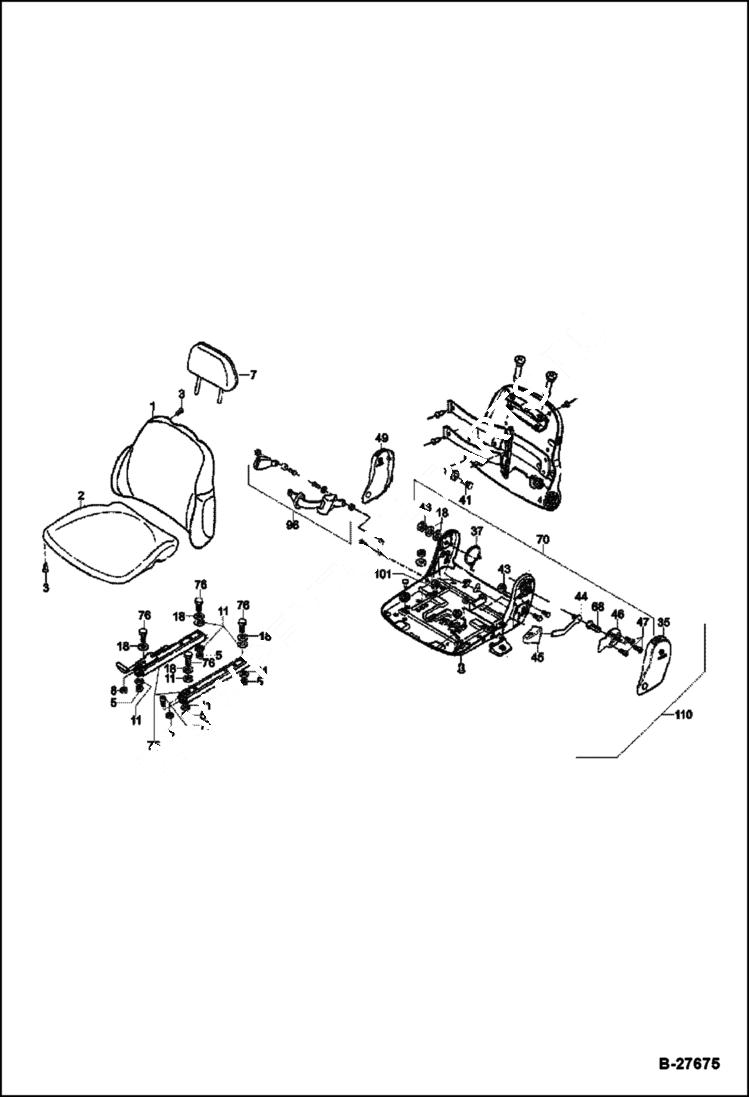

Запчасти Bobcat WL350 OPERATOR SEAT MAIN FRAME

1

5305670235

CUSHION, BACK OF SEAT

2

5305670236

CUSHION, SEAT

3

5305670026

BOLT M 5X16

5

5305670106

NUT M 8

7

5305670007

HEADREST

8

1210707011

NUT M 8

11

5305670104

WASHER 8,4

18

5305670200

WASHER 8,4

35

5305670280

COVER

37

5305670244

SPRING

41

1008707019

BOLT M 8X40

43

1212251011

NUT M 8

44

5305670035

LEVER

45

5305670036

HANDLE

46

5305670037

ADAPTER PLATE

47

5305670038

BOLT M 6X10

49

5305670282

COVER RIGHT

68

5305670152

BOLT M 8X35

70

5305670247

ADJUSTING, BACK REST W/Ref. 18, 37, 41-47, 66 & 68

75

5305670241

ADJUST. RAIL

76

1008707817

BOLT M 8X16

77

5305670234

BOLT M 8X16

96

5305670217

LAP BELT

101

5305661676

NUT M 8

110

5305661730

OPERATOR'S SEAT Ref. 1-93
