Запчасти Bobcat WL350 OPERATOR CAB-HEATING MAIN FRAME

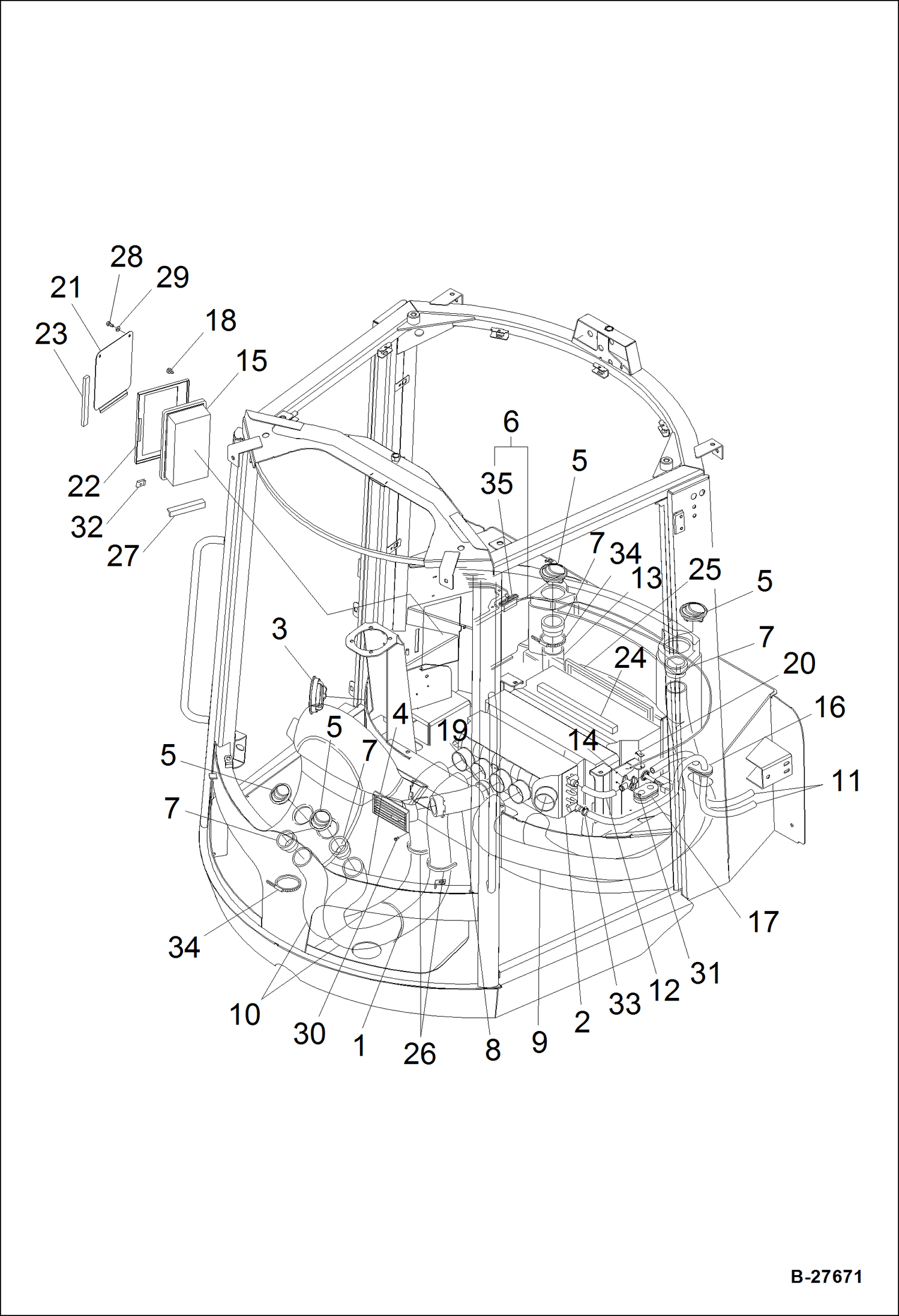

Схема запчастей Bobcat WL350 - OPERATOR CAB-HEATING MAIN FRAME

Артикул

Название

Примечание

Количество

1

5388665471

CABLE BINDER

2

5388665472

HEATING

3

5388665473

NOZZLE

4

5388665474

NOZZLE

5

5388662367

NOZZLE

6

5388662385

REGULATOR Ref. 35

7

5388665478

REDUCTION PIECE

8

5388665479

HOSE

9

5388665480

HOSE

10

5388665481

HOSE

11

5388665482

HOSE

12

5388665483

HOSE

13

5388665484

HOSE

14

5388665014

HEATER VALVE

15

5388665486

FILTER

16

5388665362

RUBBER

17

5388665363

RUBBER

18

5388665487

BUTTON

19

5388665370

REDUCTION

20

5388662652

PIPE CLIP

21

5388665116

GRILL

22

5388665489

FRAME

23

5388665490

SEAL

24

5388665491

SEAL

25

5388665492

SEAL

26

5388665493

BRACKET

27

5388665494

PROFILE

28

1062707213

BOLT

29

5388665425

WASHER

30

5388662721

BOLT

31

5388661435

BOLT

32

5388665496

CLIPS

33

5388665497

CABLE BINDER

34

5388665498

CABLE BINDER

35

5388665476

CABLE

Выбрано товаров: 35
