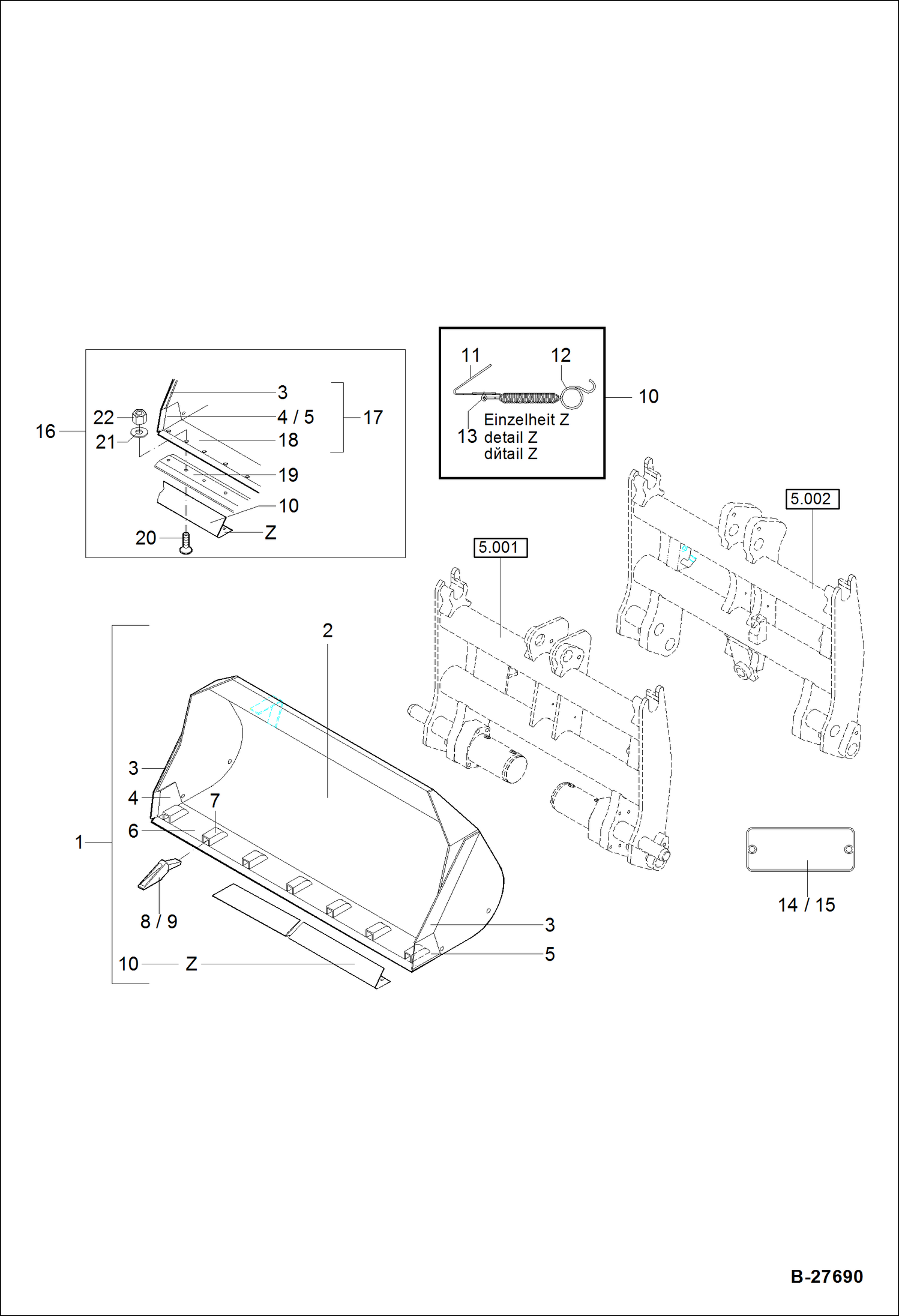

Запчасти Bobcat WL350 LOADING SHOVEL 1850MM 0,90CBM ACCESSORIES & OPTIONS

1

6452201000

LOADING SHOVEL 1850MM STANDARD - Ref. 2 & 8-15

2

0452201001

LOADING SHOVEL 1850MM STANDARD - W/Ref. 3-7

3

6393701004

SIDE-STRIP

4

0451201023

CUTTING EDGE RIGHT

5

0451201024

CUTTING EDGE LEFT

6

6338901105

CUTTING EDGE W/Ref. 7

7

5455204900

SLEEVE

8

5455204800

TOOTH

9

5455700096

TOOTH CUP Was 5455205000 - A

10

6452201030

TOOTH PROTECTION CPL. W/Ref. 11-13

11

PROTECTOR, TOOTH NLA - Order Ref. 10

12

5249001010

SPRING

13

1395707827

COTTER PIN Was 5249001011 - A

14

PLATE, NAME NLA

15

1940000739

RIVET

16

6452202000

LOADING SHOVEL 1850MM - Ref. 10-15, 17 & 19-23

17

0452202001

LOADING SHOVEL 1850MM - W/Ref. 3-5 & 18

18

0452202003

CUTTING EDGE

19

0452202002

BOLT-ON CUTTING EDGE

20

1062707236

BOLT M 14X50

21

1290707025

WASHER 15

22

1212251015

NUT M 14
