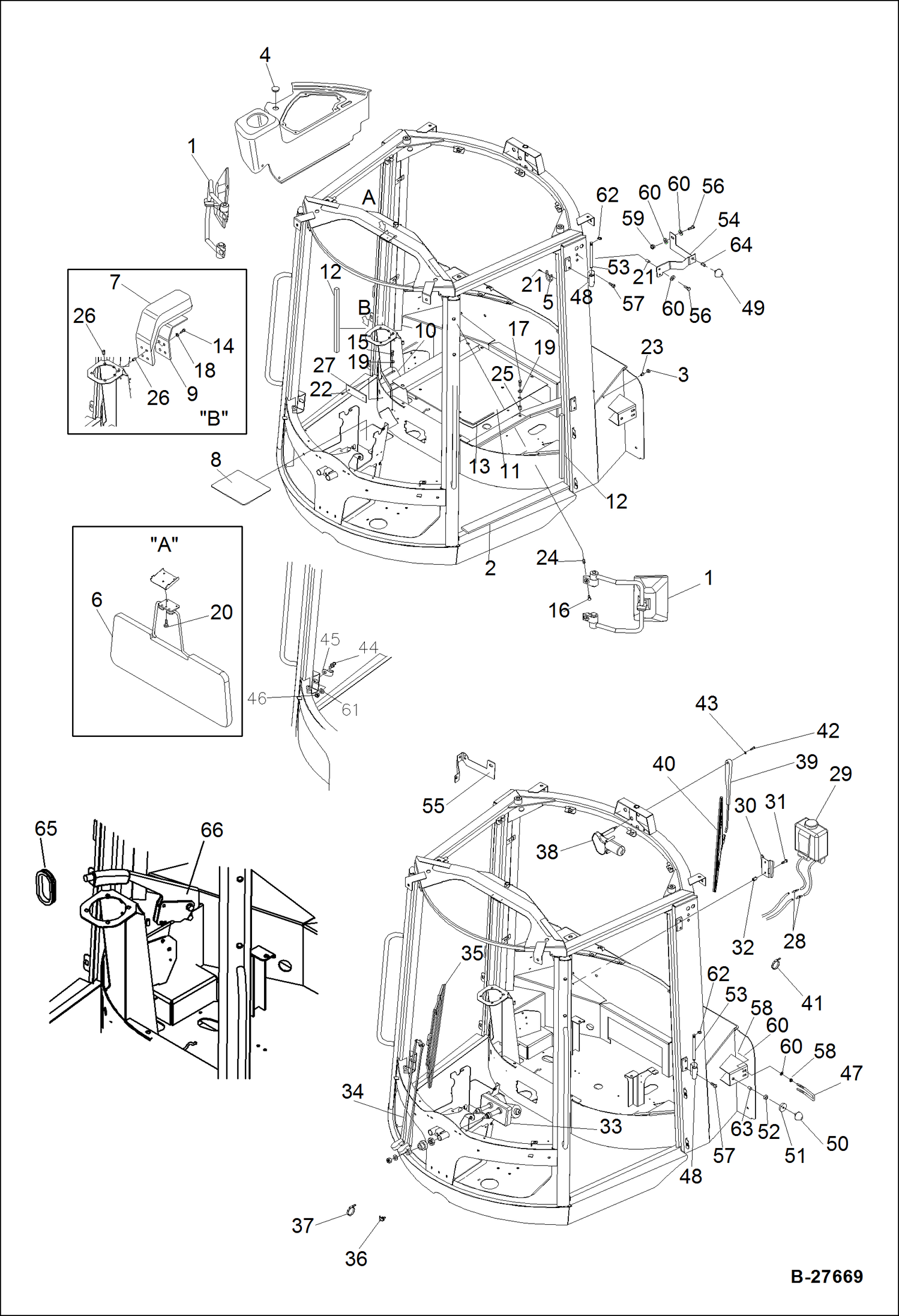

Запчасти Bobcat WL350 OPERATOR CAB-EQUIPMENT 1 MAIN FRAME

1

5388662357

MIRROR

2

5388665324

SAFETY-WALK

3

5388665461

COVER

4

5388665462

COVER

5

5354244600

HOOK

6

5388665194

SUN VISOR

7

5376014552

ARMREST

8

5388662828

COVER

9

5388665464

BRACKET

10

5388665465

BRACKET

11

5388665467

COVER

12

5388665468

SEAL

13

5388665469

SEAL

14

5388665470

BOLT

15

1008707018

BOLT

16

1121311318

BOLT

17

1008707618

BOLT

18

1290707014

WASHER

19

1307707018

WASHER

20

1087707837

SCREW

21

5388665096

BOLT

22

5388662755

RIVET

23

5388662964

NUT

24

5388665062

NUT

25

5388665218

NUT

26

5388665211

NUT

27

PLATE, NAME NLA

28

5388662096

VALVE, RETURN

29

5388662361

TANK

30

5388662094

BRACKET

31

5388662776

BOLT

32

5388665502

NUT

33

5388665416

WIPER MOTOR

34

5388665417

WIPER ARM

35

5388665010

BLADE, WIPER

36

5388662257

ANGLE

37

5653093560

BINDER

38

5388665025

MOTOR, WIPER

39

5388665012

ARM, WIPER

40

5388665011

BLADE, WIPER

41

5653093560

BINDER

42

5388662082

BOLT

43

5388665266

WASHER

44

5388661473

COTTER

45

5388661433

GUIDE

46

5388662090

NUT

47

5388665431

LEVER

48

5388665432

HINGE

49

5388661476

RUBBER BLOCK

50

5388662301

RUBBER PAD

51

5388662068

SPACER WASHER

52

5388665435

WASHER

53

5388665436

HINGE BOLT

54

5388665437

BRACKET LEFT

55

5388665438

BRACKET RIGHT

56

1121311318

BOLT

57

1047707817

BOLT

58

1210707011

NUT

59

5388665440

NUT

60

1290707018

WASHER

61

1290707022

WASHER

62

5388665247

RING

63

5388665062

NUT

64

5388665218

NUT

65

5388665403

SEAL

66

5388665013

HAND BRAKE LEVER
