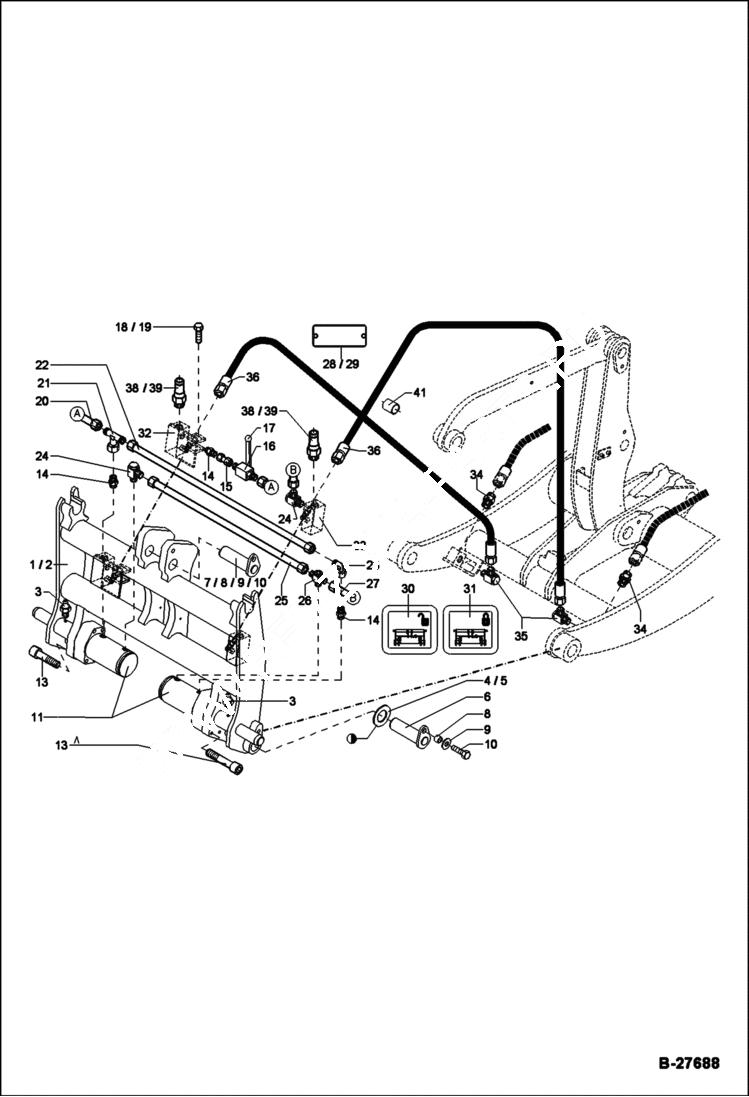

Запчасти Bobcat WL350 HYDRAULIC QUICK MOUNT HITCH ACCESSORIES & OPTIONS

1

6452104000

DEVICE, QUICK FIT Ref. 1-31

2

6452104002

FRAME, HITCH QUICK MOUNT W/Ref. 32 & 33

3

1607003006

GREASE NIPPLE A 6

4

1309412815

SHIM 50X75X1

5

1309412926

SHIM 50X75X2

6

0337103033

PIN

7

0145011120

PIN Was 6145011120 - A

8

0333023033

SPACER BUSHING

9

1343707061

WASHER

10

1008707529

BOLT M 12X25

11

6502116100

HYDRAULIC CYLINDER See Illustration HYDRAULIC CYLINDER - QUICK MOUNT HITCH/ B27724 Z 63/50

13

1045707730

BOLT M 12X55

14

1915060555

FITTING

15

0103723021

TUBING

16

5001609600

BALL TAP

17

5001207171

KEY

18

1008707213

BOLT M 6X20

19

1210707009

NUT M 6

20

0461604030

TUBING

21

1919060151

FITTING

22

0461604032

TUBING

23

1924060151

FITTING

24

1921060154

FITTING

25

0461604034

TUBING

26

1920000103

FITTING

27

0461604036

TUBING

28

PLATE, NAME NLA

29

1940000739

RIVET

30

5358609064

MARKING PLATE

31

5358609065

MARKING PLATE

32

6461604050

DISTRIBUTION RIGHT

33

6332806105

DISTRIBUTION LEFT

34

1915060157

FITTING

35

1926060157

FITTING

36

4460103359

HOSE

38

5000080001

COUPLING PLUG

39

5000080002

DUST CAP

41

0490607152

PROTECTION HOSE 750
