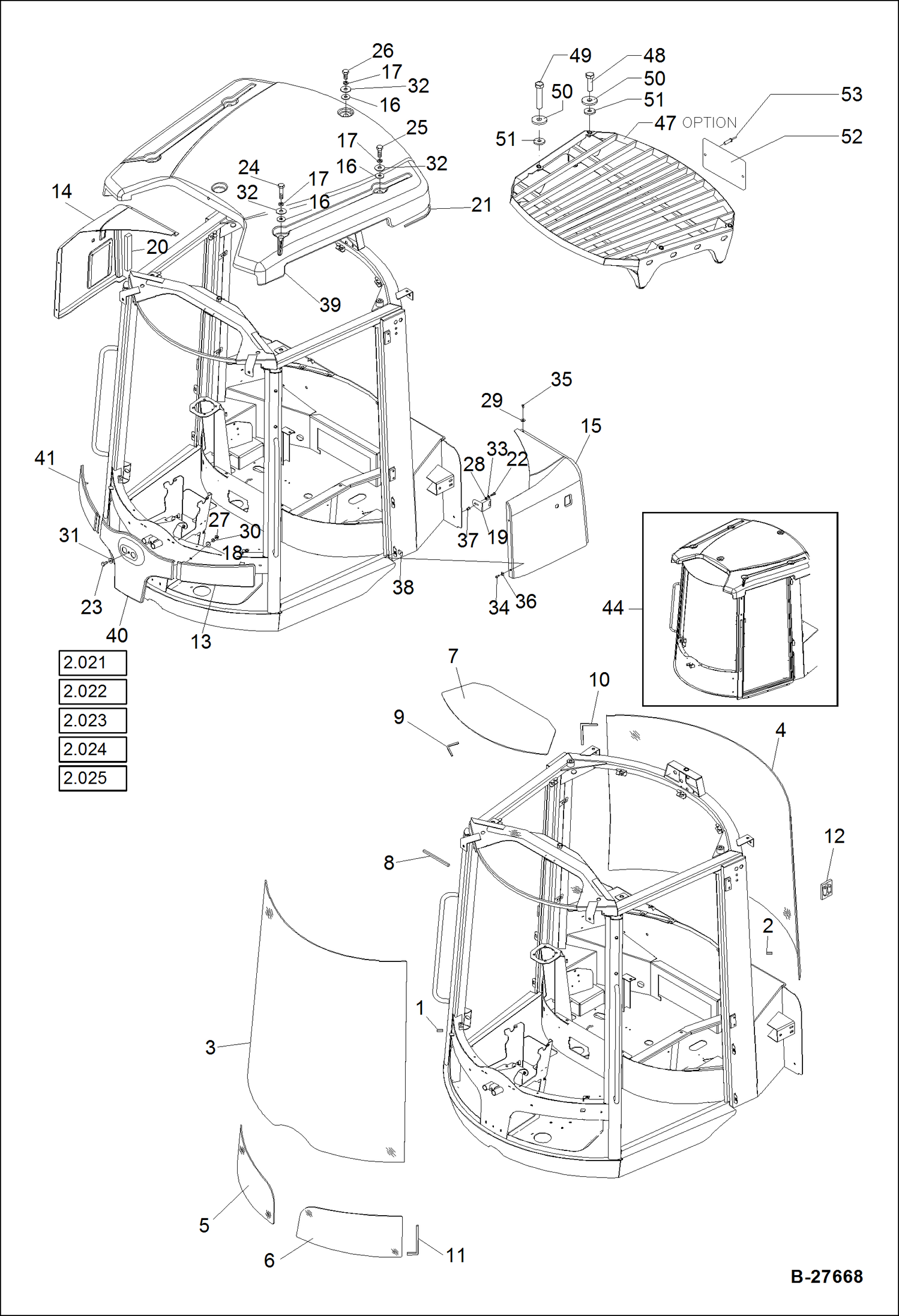

Запчасти Bobcat WL350 OPERATOR CAB-GLASSES MAIN FRAME

1

5388665506

DISTANCE SLEEVE

2

5388665507

DISTANCE SLEEVE

3

5388665003

PANE

4

5388662999

REAR WINDOW

5

5388665508

PANE

6

5103661359

WINDOW Was 5388665509 - A

7

5388665511

PANE

8

5388665512

SEAL

9

5388665513

SEAL

10

5388665514

SEAL

11

5388665515

SEAL

12

MCS008042A

KIT, WINDOW GLUE

13

5388665527

COVERING, LEFT BOBCAT AK 09-05-2008

14

5388665528

COVERING, RIGHT BOBCAT AK 09-05-2008

15

5388665529

COVERING, LEFT BOBCAT AK 09-05-2008

16

5388665189

WASHER

17

5388665190

WASHER

18

5388665327

WASHER

19

5388665517

BRACKET

20

5388665518

SEAL

21

5388665186

SEAL

22

1062707213

BOLT

23

1008707018

BOLT

24

1123311041

STUD

25

5388665519

BOLT

26

5388665520

BOLT

27

5388665072

NUT

28

1290707014

WASHER

29

1307707014

WASHER

30

1307707012

WASHER

31

1307707018

WASHER

32

5388665084

WASHER

33

5388665266

WASHER

34

5388665096

BOLT

35

5388665410

BOLT

36

5388662047

WASHER

37

5388665211

NUT

38

5388662687

CLIP

39

5388665179

ROOF GRAY OPTION AK 09-05-2008

40

5388665522

COVERING, BOBCAT AK 09-05-2008

41

5388665526

COVERING, BOBCAT AK 09-05-2008

44

0451041100

CAB, CPL

47

5388664057

TOP GUARD

48

BOLT NLA - M 16x65

49

BOLT NLA - M 16x90

50

1290707028

WASHER

51

WASHER NLA

52

PLATE, NAME NLA

53

1940000739

RIVET
