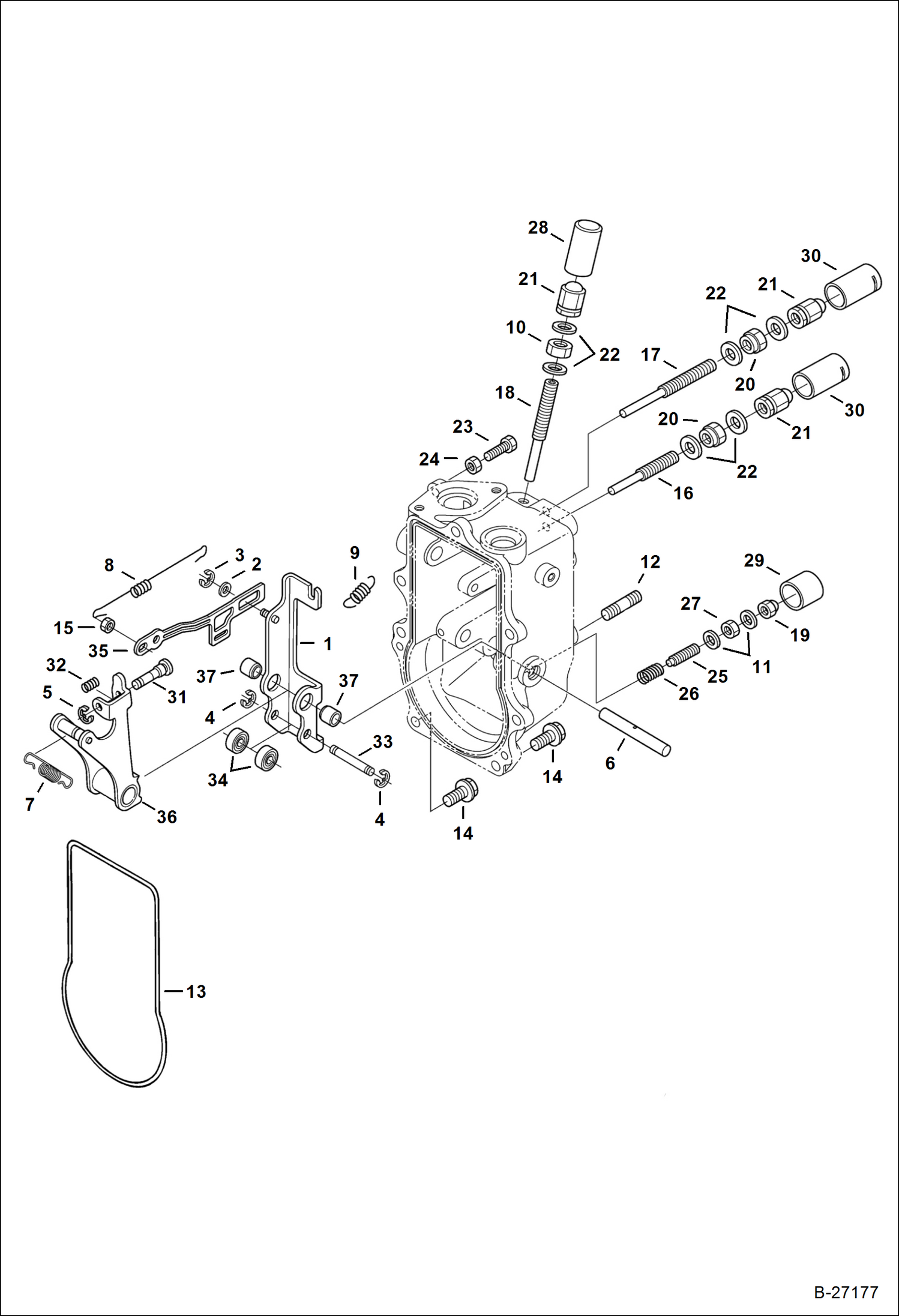

Запчасти Bobcat WL350 GOVERNOR (Fork Lever) (Kubota) POWER UNIT

1

6699734

LEVER ASSY W/Ref. 31-37 - Was 6689314 - A

2

6680820

WASHER

3

6680821

SNAP RING

4

6680822

SNAP RING

5

6680823

SNAP RING

6

6689318

SHAFT, FORK LEVER

7

6689315

SPRING, GOVERNOR

8

6689316

SPRING, START

9

6680827

SPRING

10

6657459

NUT

11

3974095

MET-GASK

12

6680828

STUD

13

6680829

GASKET

14

6680830

BOLT

15

6685952

NUT

16

6680832

SCREW

17

6680833

SCREW

18

6686985

BOLT, ADJUSTING

19

6670426

NUT

20

6680272

NUT

21

6657470

NUT

22

3974972

GASKET

23

6652712

STOPPER

24

1DM6

NUT

25

6689311

ASSY BOLT, ADJUSTMENT W/Ref. 26 & 27

26

SPRING NSS - Order Ref. 25

27

6599085

NUT

28

6672384

CAP, SECURITY

29

6670427

CAP, SECURITY

30

CAP, SECURITY NLA

31

PIN NSS - Order Ref. 1

32

6689312

SPRING

33

6689313

SHAFT, FORK LEVER

34

BUSHING NSS - Order Ref. 1

35

ARM NSS - Order Ref. 1

36

LEVER NSS - Order Ref. 1

37

BUSHING NSS - Order Ref. 1
