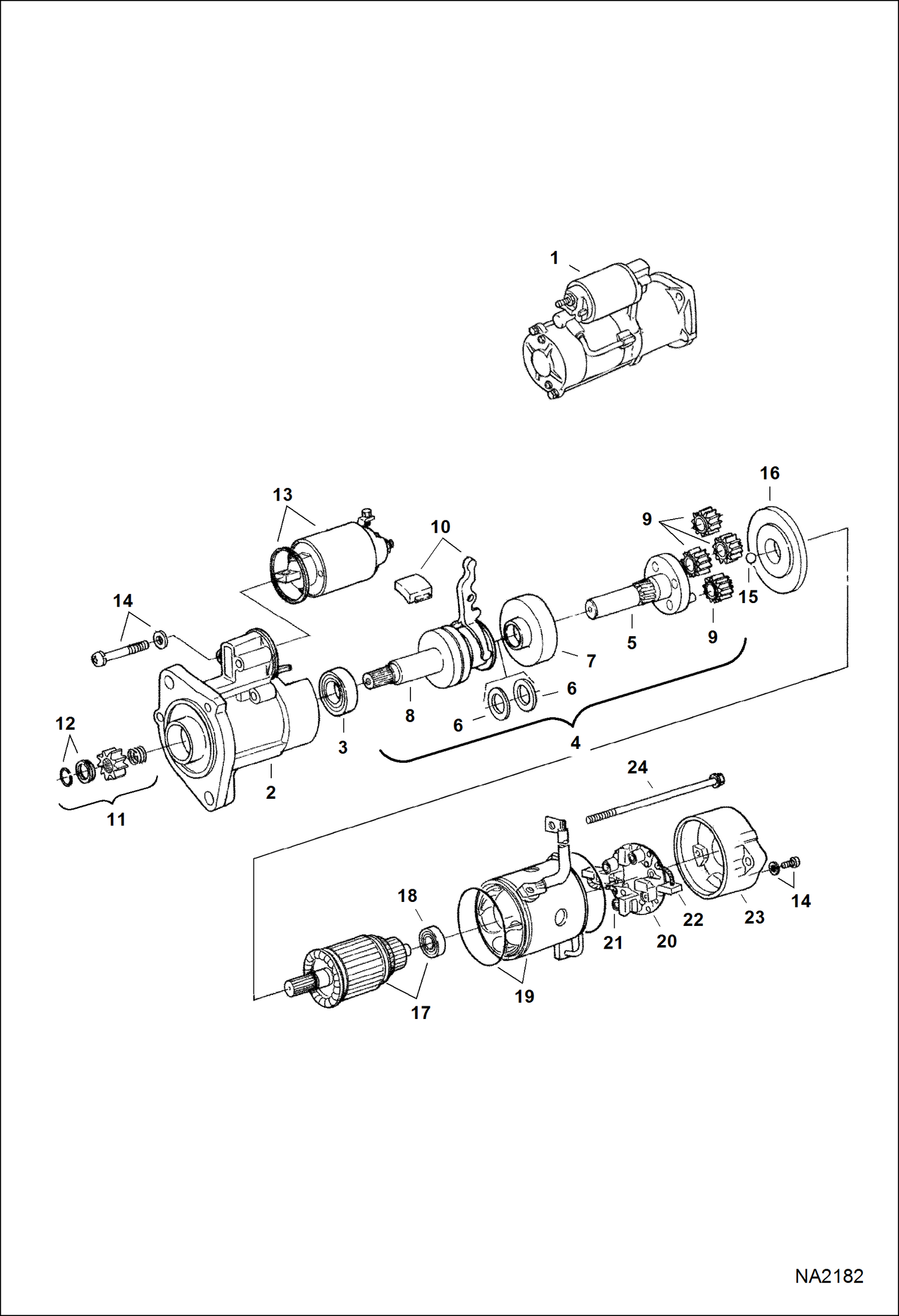

Запчасти Bobcat WL350 STARTER (COMPONENT PARTS) (Kubota) POWER UNIT

1

6689247

ASSY STARTER W/Ref. 2 - 24

2

6689249

ASSY BRACKET, FRONT

3

6689257

SET, BEARING

4

6689250

ASSY SHAFT, CLUTCH W/Ref. 5 - 12

5

6689256

ASSY SHAFT, GEAR

6

6689267

SET, WASHER

7

6689259

SET, INTERNAL GEAR

8

6689263

CLUTCH, OVER RUNNING

9

6689260

ASSY GEAR

10

6689251

ASSY LEVER, SET

11

6689261

SET PINION W/Ref. 12

12

6689254

SET, STOPPER

13

6689248

ASSY SWITCH, MAGNETIC

14

6689269

SET, SCREW

15

6689369

BALL

16

6689268

SET, PACKING

17

6689252

ASSY ARMATURE W/Ref. 18

18

6689258

BEARING

19

6689253

ASSY YOKE

20

6689265

ASSY HOLDER, BRUSH W/Ref. 21 & 22

21

6689266

BRUSH, SPRING

22

6689264

BRUSH

23

6689255

ASSY BRACKET, REAR

24

6689262

SET, BOLT
