Запчасти Bobcat WL350 PISTON & CRANKSHAFT (Kubota) POWER UNIT

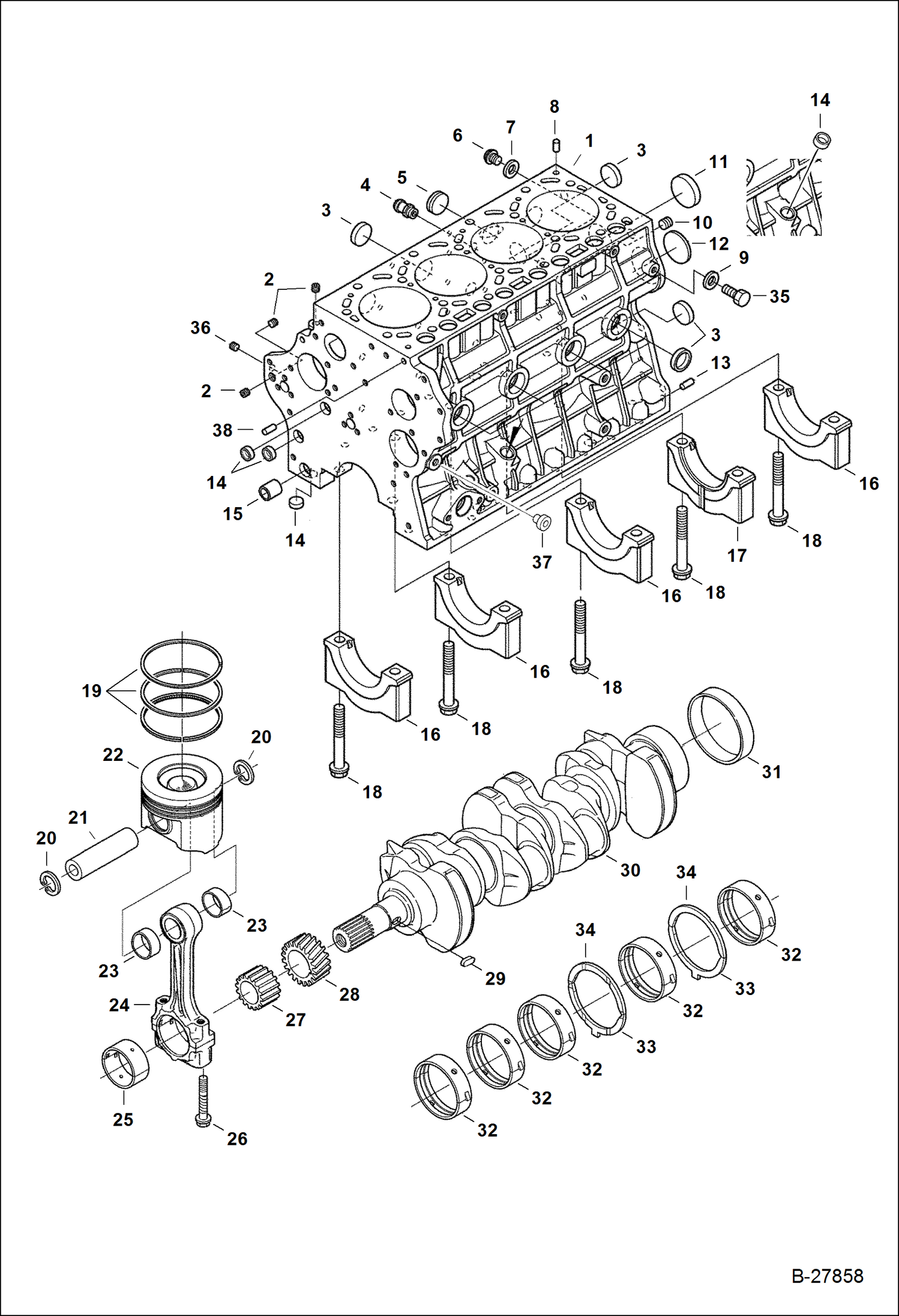

Схема запчастей Bobcat WL350 - PISTON & CRANKSHAFT (Kubota) POWER UNIT

Артикул

Название

Примечание

Количество

1

7008615

BLOCK, ENG Was 6689232 - A

2

6652574

PLUG

3

3974389

CAP, SEALING

4

6680646

ADAPTER

5

6672354

PLUG

6

6652750

PLUG Was 6969968 - A

7

3974095

MET-GASK

8

3974037

PIN

9

6652751

GASKET

10

6680636

PLUG

11

3974390

PLUG

12

6680640

PLUG

13

6685918

PIN

14

3974056

CAP

15

7017198

PIN, STRAIGHT Was 6680644 - A

16

CAP, BEARING MAIN NSS - Order Ref. 1

17

CAP, BEARING THRUST MAIN NSS - Order Ref. 1

18

6680645

BOLT

19

6680723

PISTON RINGS

19

6680724

PISTON RINGS

20

6680726

SNAP RING

21

6680725

PIN

22

6689321

PISTON

22

6689320

PISTON

23

6680728

BUSHING

24

6680727

ROD

25

6680730

ROD BEARING std/blue/set

25

6680731

BEARING, ROD CONNECTING

25

6680732

ROD BEARING -0,20 mm/green/set

25

6680733

ROD BEARING -0,40mm/red/set

26

6698599

BOLT Was 6680729 - A

27

6680737

GEAR

28

6689243

GEAR, CRANKSHAFT

29

3974226

KEY

30

6689306

COMP. CRANKSHAFT

31

6680735

SLEEVE

32

6680738

MAIN BEARING std set

32

6680739

MAIN BEARING -0,20 mm set

32

6680740

MAIN BEARING -0,40 mm set

33

6680741

THRUST WASHER std

33

6680742

THRUST WASHER +0.20 mm

33

6680743

THRUST WASHER +0.40 mm

34

6680744

THRUST WASHER std

34

6680745

THRUST WASHER +0,20 mm

34

6680746

THRUST WASHER +0,40 mm

35

6655884

PLUG

36

6680667

PLUG

37

6698354

SWITCH, PRESS OIL ENG

38

21JM820

PIN, STRAIGHT

Выбрано товаров: 49
