Запчасти Bobcat WL350 OIL PAN & COOLER (Kubota) POWER UNIT

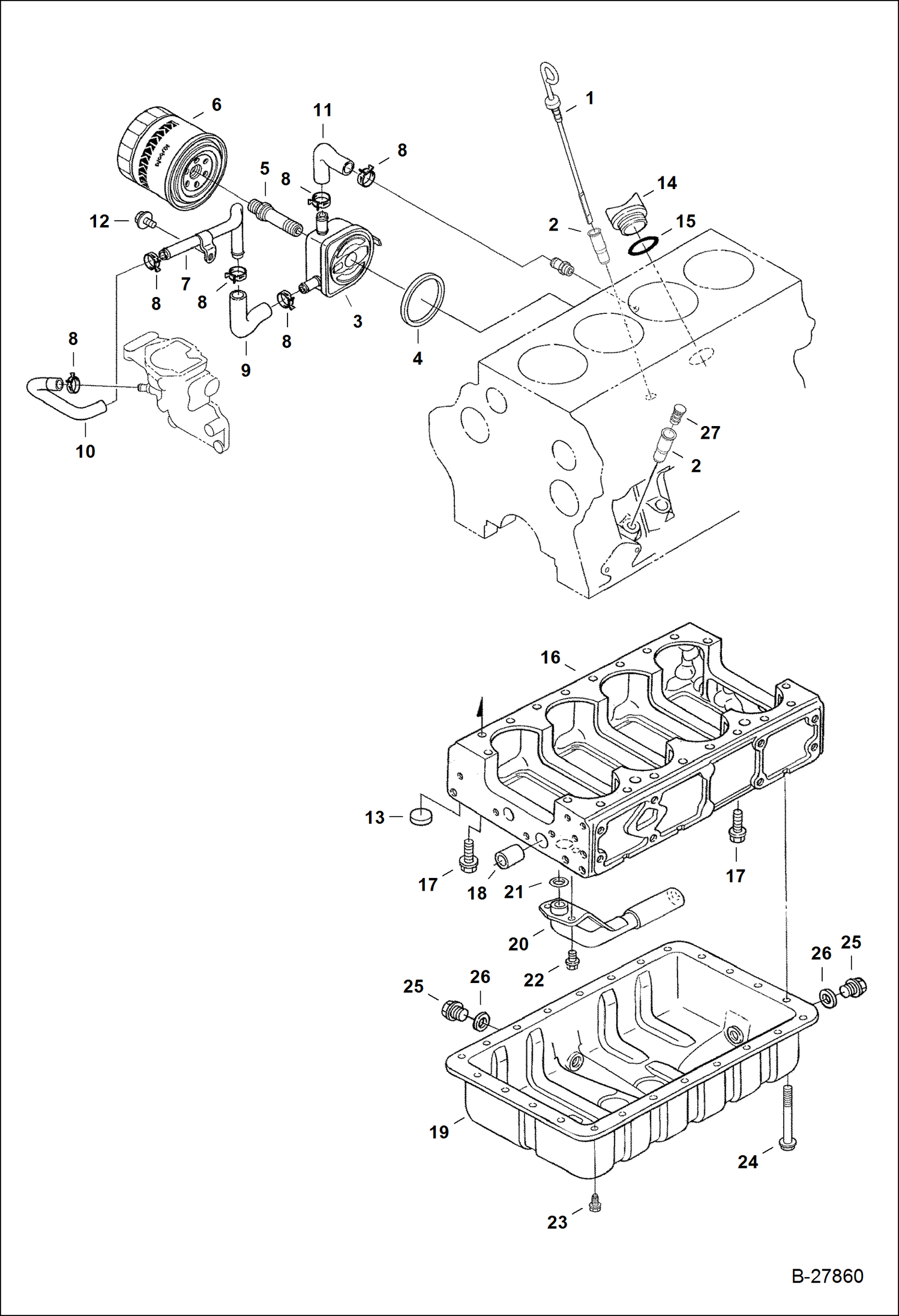

Схема запчастей Bobcat WL350 - OIL PAN & COOLER (Kubota) POWER UNIT

Артикул

Название

Примечание

Количество

1

7020951

DIPSTICK, OIL ENG Was 6690692 - A

2

6680702

TUBE

3

6680909

OIL COOLER

4

6686402

SEAL

5

7012202

ADAPTER Was 6680910 - A

6

6678233

FILTER, OIL ENG 12

7

6680912

TUBE

8

6675618

CLAMP

9

6680914

HOSE

10

6689333

PIPE, OIL COOLER

11

6680911

HOSE

12

6680662

BOLT

13

3974389

CAP, SEALING

14

6685924

CAP

15

6684782

O-RING

16

7008616

BLOCK, ENG LOWER

17

6680654

BOLT

18

7017199

PIN, STRAIGHT Was 6680655 - A

19

6689234

COMP. OIL PAN

20

6680660

SCREEN, OIL

21

6680661

O-RING

22

6680662

BOLT

23

6685925

BOLT

24

6680659

BOLT

25

6680483

PLUG

26

6670347

GASKET

27

6969804

PLUG,OIL GAUGE

Выбрано товаров: 27
