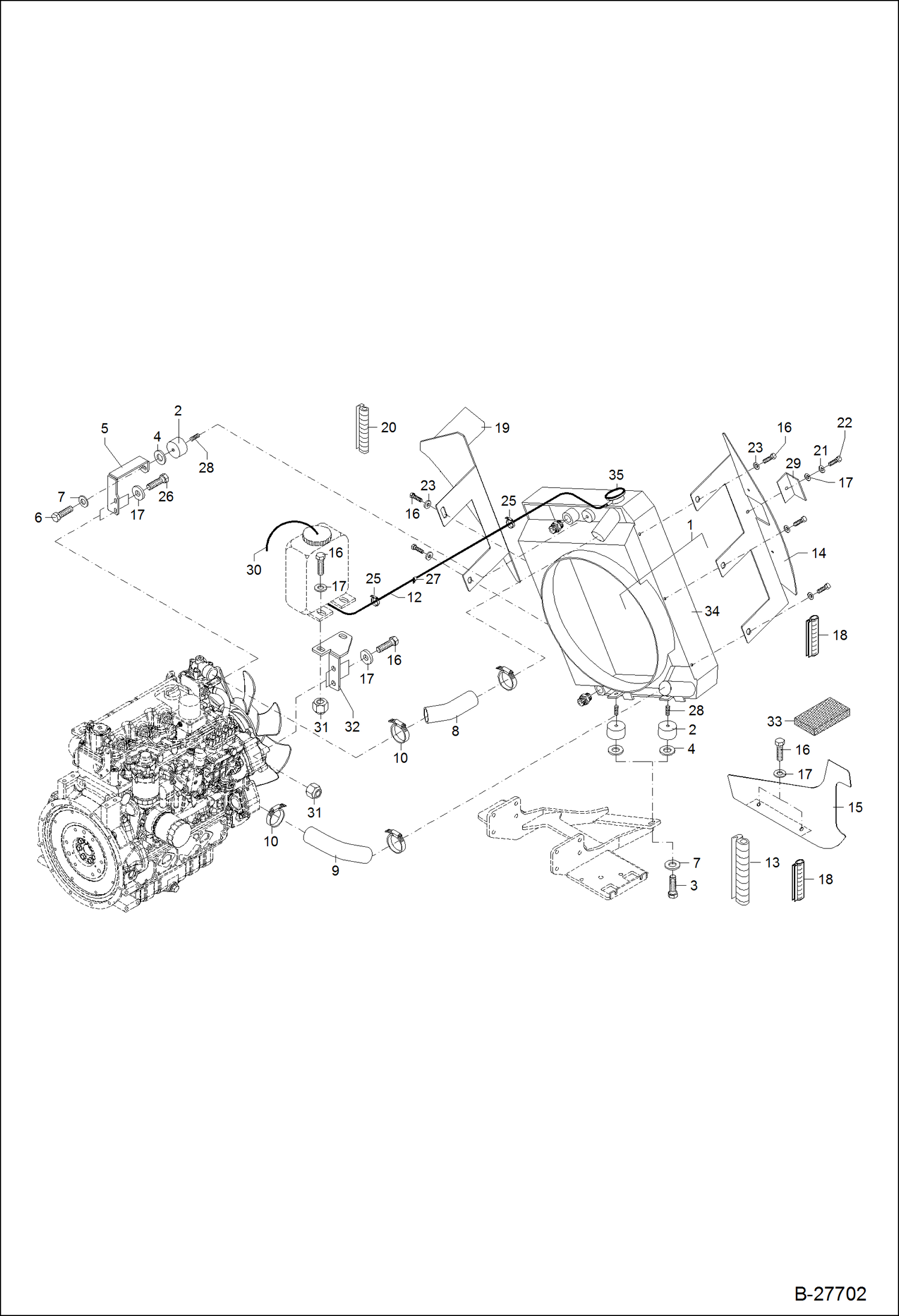

Запчасти Bobcat WL350 COMBINED COOLER POWER UNIT

1

5010661068

COMBI RADIATOR COOLER

2

5101290863

BEARING (RUBBER)

3

1008707923

BOLT M 10X25

4

1307707020

WASHER 10,5

5

0452815042

BRACKET

6

1008707623

BOLT M 10X20

7

1343707059

WASHER 10,5X25X4

8

5210657407

HOSE

9

5210657409

HOSE

10

5660095305

HOSE CLIP

12

0337515056

HOSE

13

7023313

SEALING SECTION - A

14

0452815050

PLATE

15

0452815048

PLATE

16

1008707018

BOLT M 8X20

17

1343707057

WASHER 8,4

18

5354600030

SEALING SECTION

19

0452815045

PLATE

20

5354600028

SEALING SECTION

21

1290707025

WASHER 8,4

22

1008707517

BOLT M 8X12

23

WASHER NLA - 8,1

25

5603320320

HOSE CLIP

26

1008707318

BOLT M 8X25

27

5000095200

HOSE CLIP

28

1133341623

STUD M10X20

29

0453815052

ANGLE

30

4035107000

HOSE

31

1212251011

NUT

32

0453815043

BRACKET

33

5354640105

NEOPRENE STRIP

34

5010663092

VENTILATOR COVER

35

5010663091

CAP
