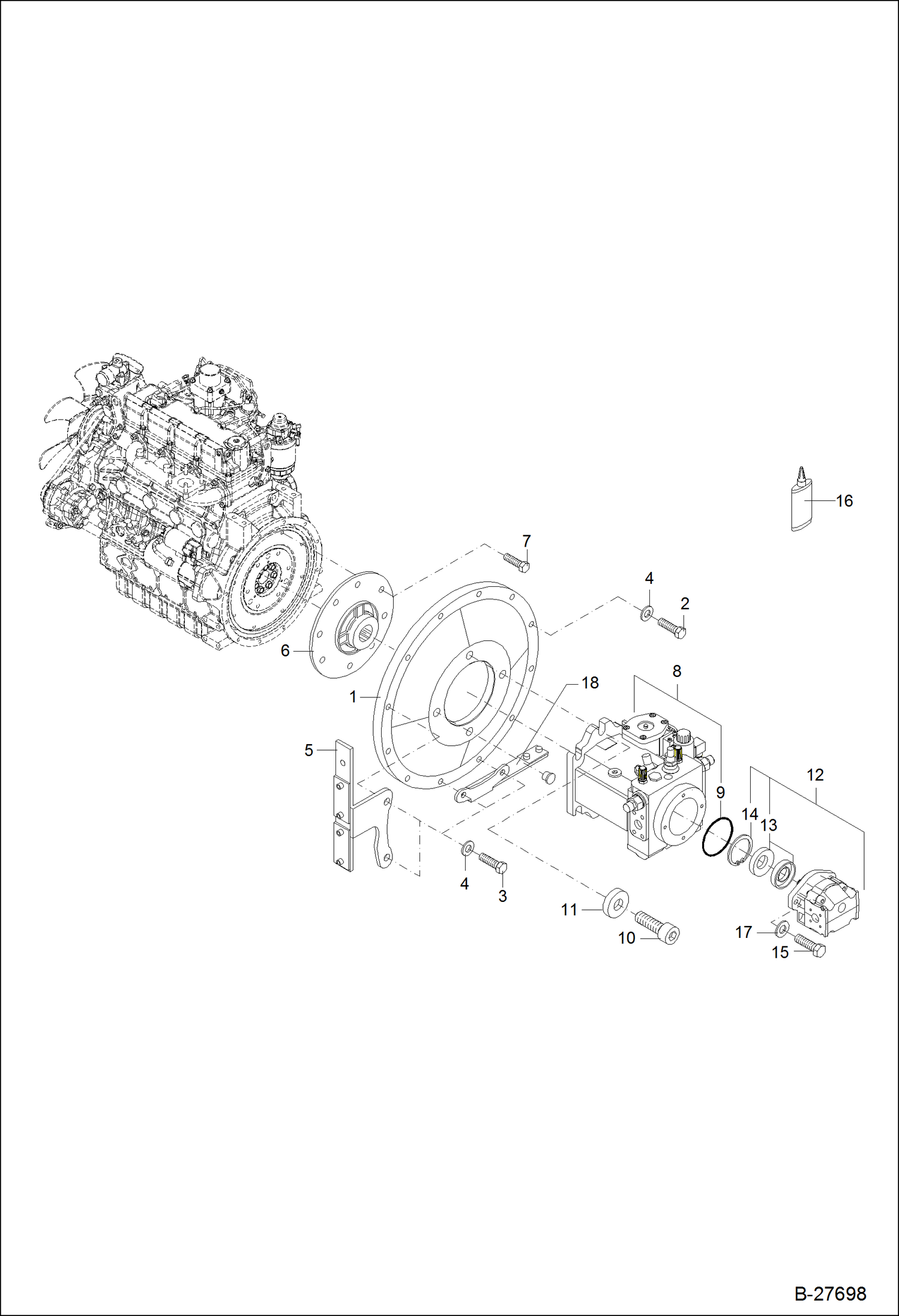

Запчасти Bobcat WL350 PUMPS MOUNTING POWER UNIT

1

5105660759

FLANGE

2

1011707247

BOLT M 10X30

3

1011707347

BOLT M 10X40

4

1290707020

WASHER 10,5

5

0451017005

BRACKET

6

5105660769

COUPLING

7

1011707147

BOLT M 10X25

8

5364662425

VARIABLE DISPLACEMENT PUMP See Illustration HYDRAULIC PUMP/ NA2445

9

1971956233

O-RING Was 1971956116 - B,D

10

1045707141

BOLT M 16X45

11

0396017002

WASHER

12

5100620054

GEAR TYPE PUMP

13

5100659048

SHAFT SEAL

14

5100659049

CIRCLIP

15

1008707030

BOLT M 12X35

16

MCS001035A

GLUE

17

1290707022

WASHER

18

0452817010

BRACKET
