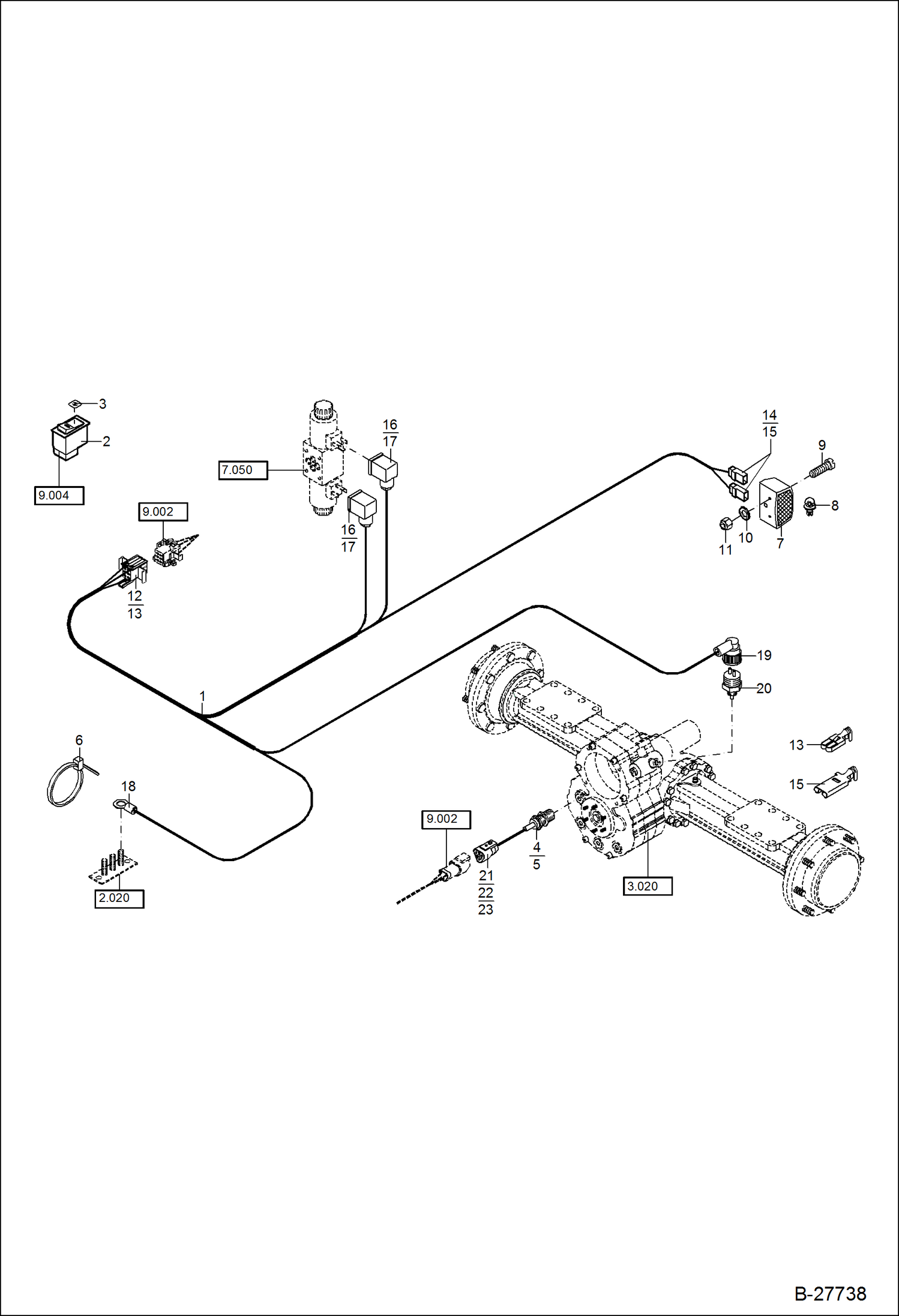

Запчасти Bobcat WL350 ELECTRIC INSTALLATION - 2-STAGE GEARBOX ELECTRICAL SYSTEM

1

0451539015

WIRE HARNESS

2

5050651352

ROCKER SWITCH

3

5358650329

SYMBOL

4

5399010176

SWITCH, PROXIMITY Was 5472661591 - A

5

1908000004

COUNTER NUT M 18X1,5

6

5653093560

BINDER 4,8X200

7

5259604880

LICENSE LIGHT

8

1813000004

BULB 12V 10W

9

1041707510

BOLT M 5X25

10

1290707012

WASHER 5,3

11

1212251007

NUT M 5

12

5350249683

HOUSING (FEMALE)

13

5350249552

CONNECTOR

14

5350249536

HOUSING

15

5350246805

TERMINAL FEMALE

16

5552659550

BOX

17

5552659513

SEAL

18

5350249597

CABLE CONNECTOR

19

5904660742

PLUG (FEMALE)

20

5904658448

SWITCH

21

5350555315

HOUSING (MALE)

22

5350555307

LOCK

23

5350555321

MALE TERMINAL
