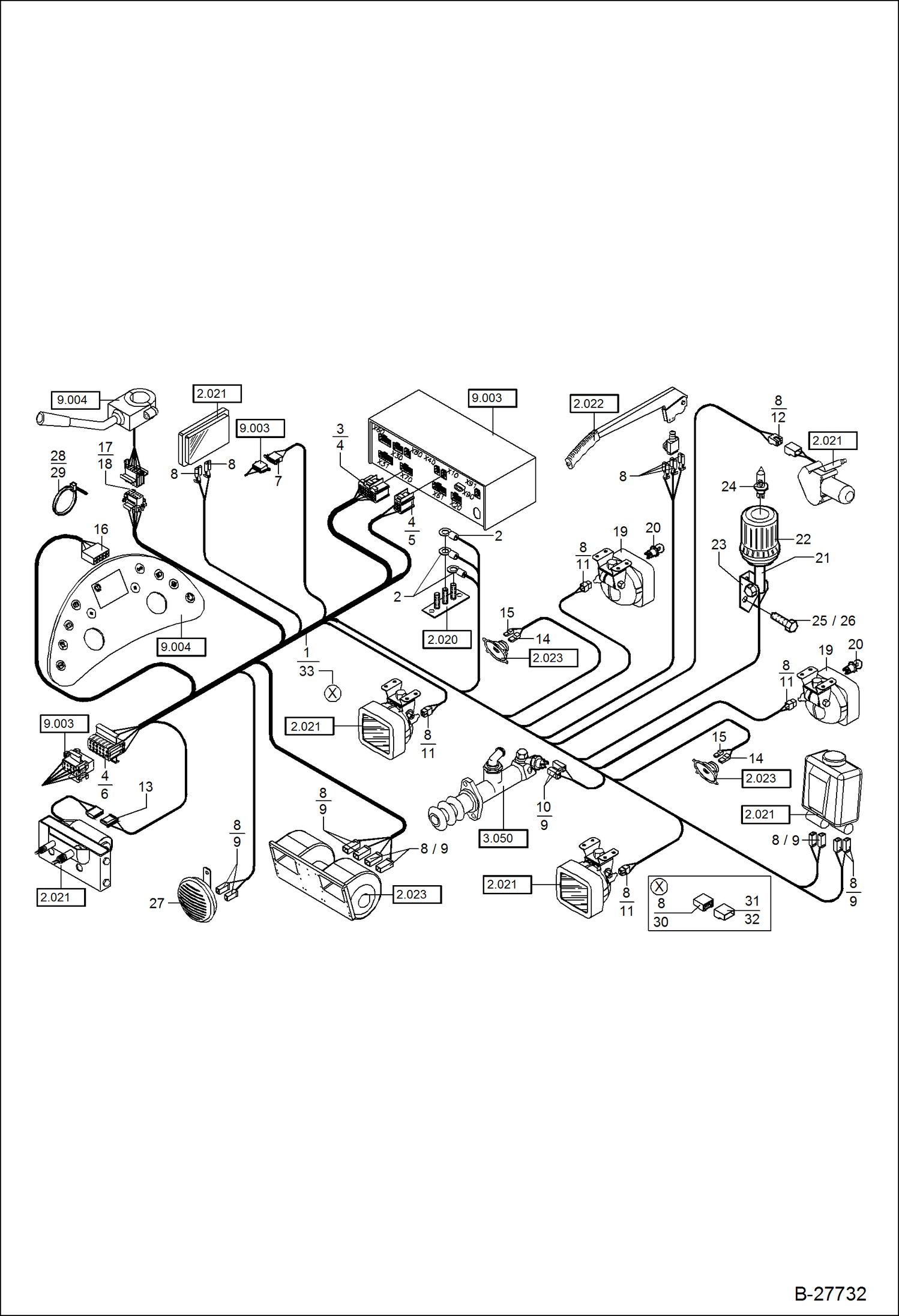

Запчасти Bobcat WL350 ELECTRIC INSTALLATION - OPERATORS CAB S/N & Below ELECTRICAL SYSTEM

1

0451040112

HARNESS, WIRE SK 31 - Ref. 2-18

2

5050226937

RING TONGUE M 8

3

5350249753

CONNECTOR

4

5350249552

CONNECTOR

5

5350249762

HOUSING (FEMALE)

6

5350249685

CONNECTOR

7

5350249632

RADIO FEMALE SOCKET

8

5350246805

TERMINAL FEMALE

9

5350249536

HOUSING

10

5350249579

FEM TERMINAL

11

5350249513

PLUG

12

5350249508

PLUG

13

5050651209

HOUSING (FEMALE)

14

5050165890

FEMALE TERMINAL

15

5350249547

FEMALE TERMINAL

16

5350249368

HOUSING, FEMALE

17

5350249691

CONNECTOR MALE

18

5350249695

MAL TERMINAL

19

5350661223

WORKING LIGHT Was 5350661215 - A

20

1813000035

BULB

21

5350637537

PIPE

22

5050022294

LIGHT, BEACON

23

6451328003

BRACKET

24

5350642339

BULB H 1

25

1334622018

SPRING WASHER

26

1008707018

BOLT M 8X20

27

5050022220

HORN

28

5653093560

BINDER 4,8X200

29

5350650294

BINDER 2,5X142

30

5050651209

HOUSING (FEMALE)

31

5350249507

HOUSING (MALE)

32

5350247311

TERMINAL MALE

33

6452741595

HARNESS, WIRE CANOPY
