Запчасти Bobcat WL350 FUEL TANK MAIN FRAME

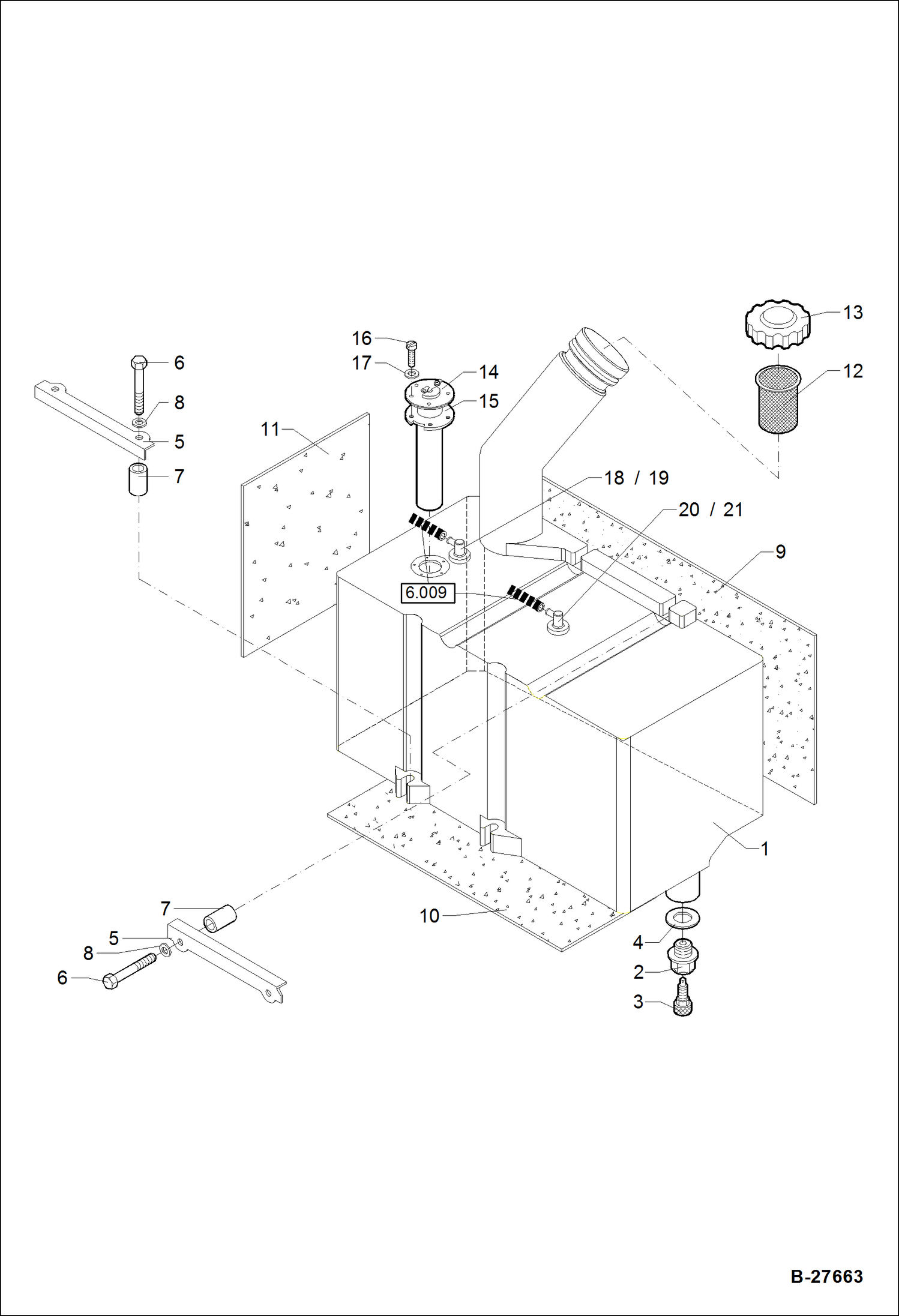

Схема запчастей Bobcat WL350 - FUEL TANK MAIN FRAME

Артикул

Название

Примечание

Количество

1

5267010034

FUEL TANK

2

0157514025

PLUG

3

5430583070

BLEEDING VALVE

4

5060508010

SEAL RING

5

6336414110

BRACKET

6

1007707824

BOLT M 10X60

7

0336414112

DISTANCE SLEEVE

8

1307707020

WASHER 10,5

9

0451014002

MAT

10

0451014003

MAT

11

0461514004

MAT

12

5051250100

INLET STRAINER

13

5051252500

CAP

14

5755586625

TRANSMITTER

15

5755586619

SEAL

16

1041707909

PAN HEAD SCREW M 5X16

17

1290707012

WASHER 5,3

18

5260310327

CONNECTION

19

5267010054

RUBBER

20

5267010011

FITTING WITH O-RING W/Ref. 21

21

1970956673

O-RING

Выбрано товаров: 21
