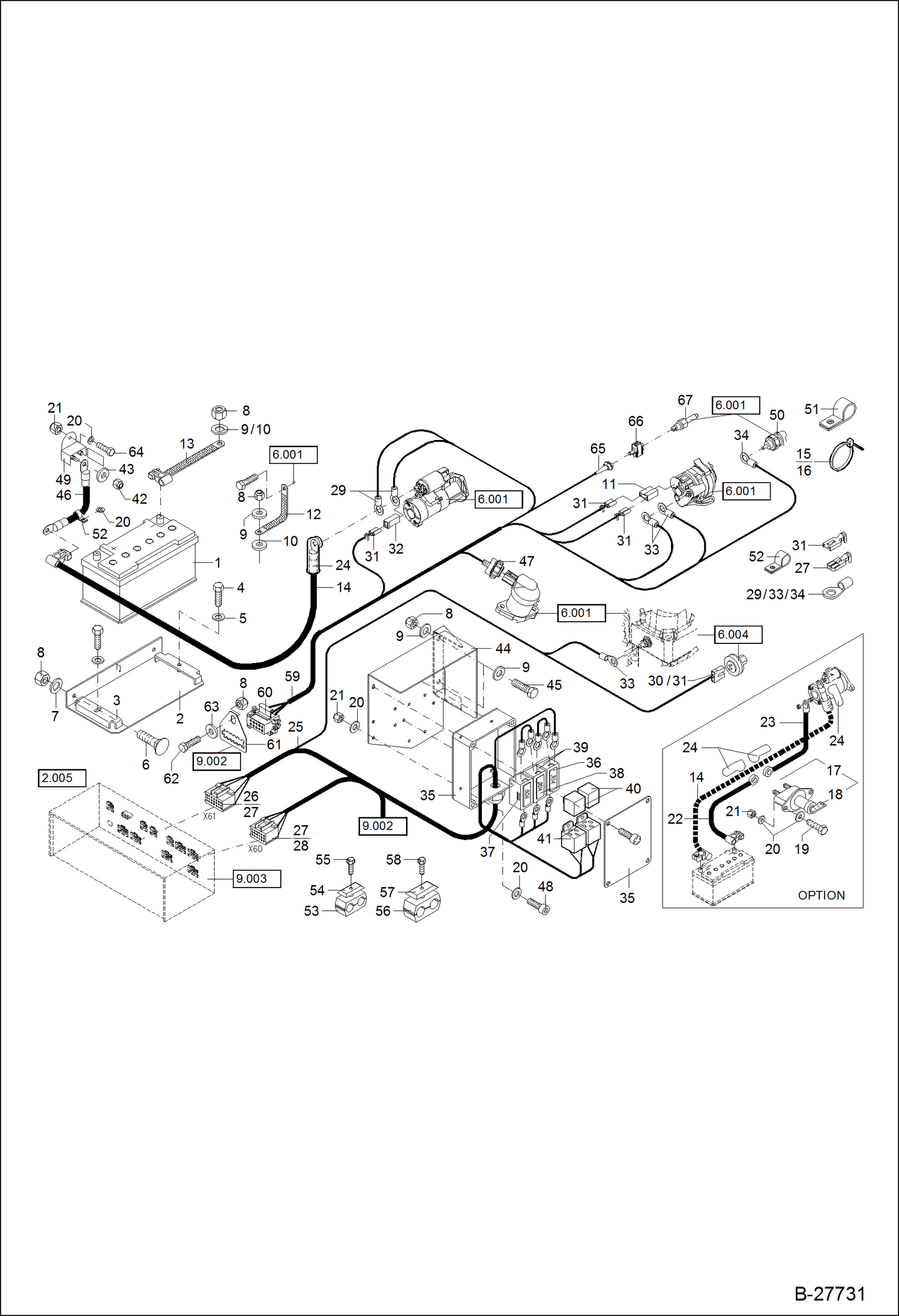

Запчасти Bobcat WL350 ELECTRIC INSTALLATION - ENGINE AND BATTERY ELECTRICAL SYSTEM
№
Артикул
Название
Примечание
Количество
1
5272600004
BATTERY
2
6451011002
BRACKET
3
0187505560
STRAP, CLAMP
4
1008707019
BOLT M 8X40
5
1343707057
WASHER 8,4
6
1027707124
BOLT M 10X30
7
1290707020
WASHER 10,5
8
1212251013
NUT M 10
9
1290707020
WASHER 10,5
10
1330620020
TOOTHED WASHER 10,5
11
5527661010
HOUSING (MALE)
12
5653246930
EARTH CABLE 300MM
13
5653246955
EARTH CABLE 350 MM
14
0451040065
BATTERY CABLE
15
5653093560
BINDER
16
5350650280
BINDER
17
5522655660
SWITCH INTERRUPTER W/Ref. 18
18
5522655651
KEY INTERRUPTER
19
1008707213
BOLT M 6X20
20
1290707014
WASHER 6,4
21
1212251009
NUT M 6
22
0410515066
BATTERY CABLE
23
0402262507
BATTERY CABLE - SWITCH
24
5050580450
RUBBER
25
0453840015
HARNESS, WIRE
26
5350249751
HOUSING (FEMALE)
27
5350249552
CONNECTOR
28
5350249753
CONNECTOR
29
5350249597
CABLE CONNECTOR M 8 gelb
30
5350249576
HOUSING
31
5350249579
FEM TERMINAL POSITIVE LOCK
32
5350249507
HOUSING (MALE)
33
5350249600
CABLE CONNECTOR M 6 gelb
34
5350241104
CABLE CONNECTOR M 4 blau
35
BOX, FUSE NLA
36
5050650421
FUSE 30 A
37
5050650452
FUSE 50 A
38
5050650489
FUSE 80 A
39
5050650450
HOLDER
40
5050247810
RELAY
41
5050247815
BRACKET RELAY
42
1210707011
NUT M 8
43
1290707018
WASHER 8,4
44
6451007005
BRACKET
45
1008707124
BOLT M 10X30
46
0451007010
BATTERY CABLE
47
5350249691
CONNECTOR MALE
48
1045707213
BOLT M 6X20
49
5050650420
CONTACT PLATE
50
SWITCH, PRESS OIL ENG NLA
51
5000096800
HOSE CLAMP 25.4
52
5000136710
HOSE CLIP 10,7
53
5660199783
CLIP
54
5660200230
COVER PLATE
55
1007707319
BOLT M 8x45
56
5660199766
HOSE CLIP
57
5660200220
COVER PLATE
58
1008707818
BOLT M 8x35
59
0453840080
HARNESS, WIRE
60
5350249691
CONNECTOR MALE
61
0457015075
BRACKET
62
1008707324
BOLT M 10X35
63
1343707059
WASHER 10,5
64
1045707912
BOLT M 6x16
65
5050650357
CAP
66
5050650355
HOUSING (MALE)
67
5411663474
TRANSMITTER, TEMP.
