Запчасти Bobcat WL350 ELECTRIC INSTALLATION - REAR CHASSIS ELECTRICAL SYSTEM

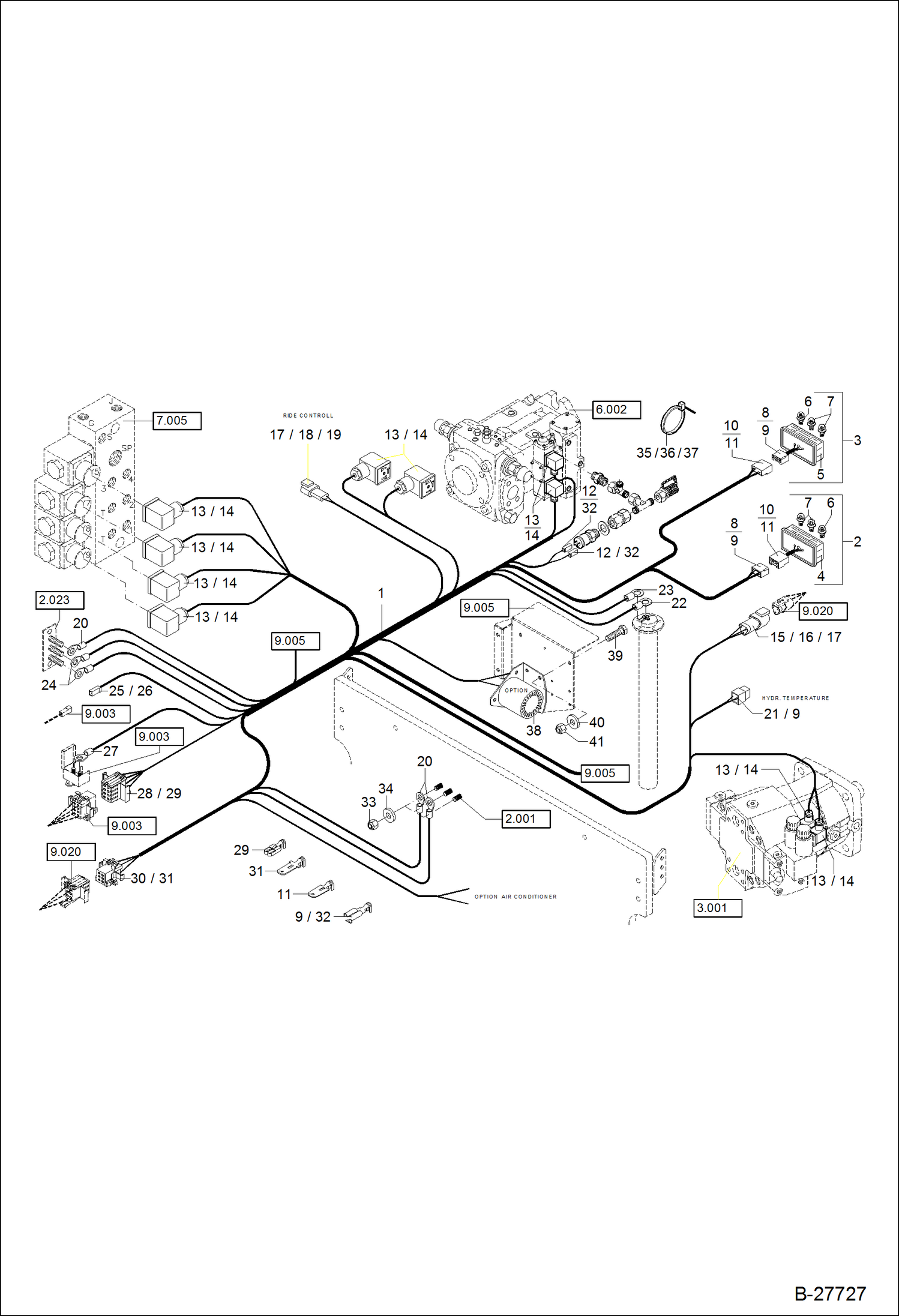

Схема запчастей Bobcat WL350 - ELECTRIC INSTALLATION - REAR CHASSIS ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

0453840015

HARNESS, WIRE

2

5110660293

REVERSING LIGHT LEFT W/Ref. 4

3

5110660295

REVERSING LIGHT RIGHT W/Ref. 5

4

LENS, TAILIGHT LT NLA - Order Ref. 2

5

LENS, TAILIGHT RT NLA - Order Ref. 3

6

5350642347

BULB

7

1813000005

BULB (SIGNAL LIGHT)

8

5050651209

HOUSING (FEMALE)

9

5350246805

TERMINAL FEMALE

10

5350249507

HOUSING (MALE)

11

5350247311

TERMINAL MALE

12

5350249709

HOUSING (FEMALE)

13

5552659550

BOX

14

5552659513

SEAL

15

5350555317

HOUSING (FEMALE)

16

5350555308

LOCK

17

5350555325

FEMALE TERMINAL

18

5350555348

HOUSING (FEMALE)

19

5350555354

LOCK

20

5050226915

RING TONGUE

21

5350249513

PLUG

22

5350241104

CABLE CONNECTOR M 4

23

5350246820

CABLE CONNECTOR M 5

24

5350249597

CABLE CONNECTOR M 8 GELB

25

5050650529

HOUSING, FEMALE

26

5110660114

TERMINAL,FEMALE Was 5050650527 - A

27

5050226937

RING TONGUE M 8

28

5350249684

CONNECTOR

29

5350249552

CONNECTOR

30

5350249689

HOUSING(MALE)

31

5350249695

MAL TERMINAL

32

5350249579

FEM TERMINAL

33

1212251013

NUT M 10

34

1343707059

WASHER 10,5X25X4

35

5350650280

BINDER 7,8X290

36

5653093560

BINDER 4,8X200

37

5350650294

BINDER 2,5X142

38

5755627342

BACKALARM

39

1008707213

BOLT M 6X20

40

1307707014

WASHER 6,4

41

1212251009

NUT M 6

Выбрано товаров: 41
