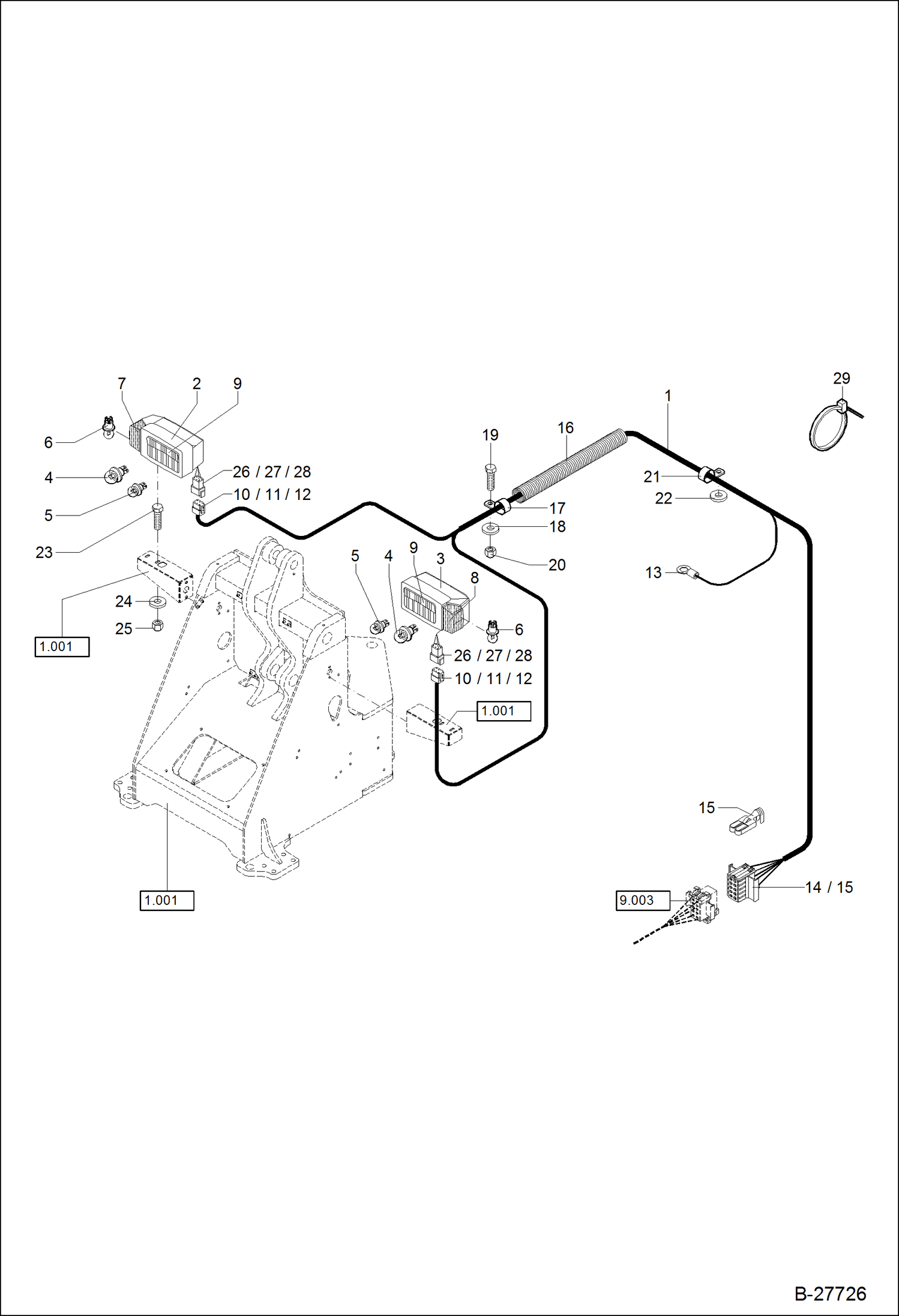

Запчасти Bobcat WL350 ELECTRIC INSTALLATION - FRONT CHASSIS ELECTRICAL SYSTEM

1

5110662034

WIRE HARNESS FRONT CH.

2

5110660147

HEAD LIGHT RIGHT

3

5110660148

HEAD LIGHT LEFT

4

1813000022

HALOGEN BULB

5

1813000002

BULB SPHERICAL

6

1813000005

BULB (SIGNAL LIGHT) BLINKER

7

LENS, SIGNAL RT NLA

8

LENS, SIGNAL LT NLA

9

5110660190

REFLECTOR

10

5350555327

HOUSING (FEMALE)

11

5350555328

LOCK

12

5350555325

FEMALE TERMINAL

13

5350246610

CABLE CONNECTOR M 8 BLAU

14

5350249554

HOUSING (FEMALE)

15

5350249552

CONNECTOR

16

5399000294

HOSE PART

17

5000136710

HOSE CLIP

18

1290707018

WASHER 8,4

19

1008707318

BOLT M 8X25

20

1212251011

NUT M 8

21

5000096800

HOSE CLAMP

22

1343707057

WASHER 8,4

23

1008707618

BOLT M 8X30

24

1343707057

WASHER 8,4

25

1212251011

NUT M 8

26

5350555342

HOUSING (MALE)

27

5350555344

LOCK

28

5350555321

MALE TERMINAL

29

5653093560

BINDER 4,8X200
