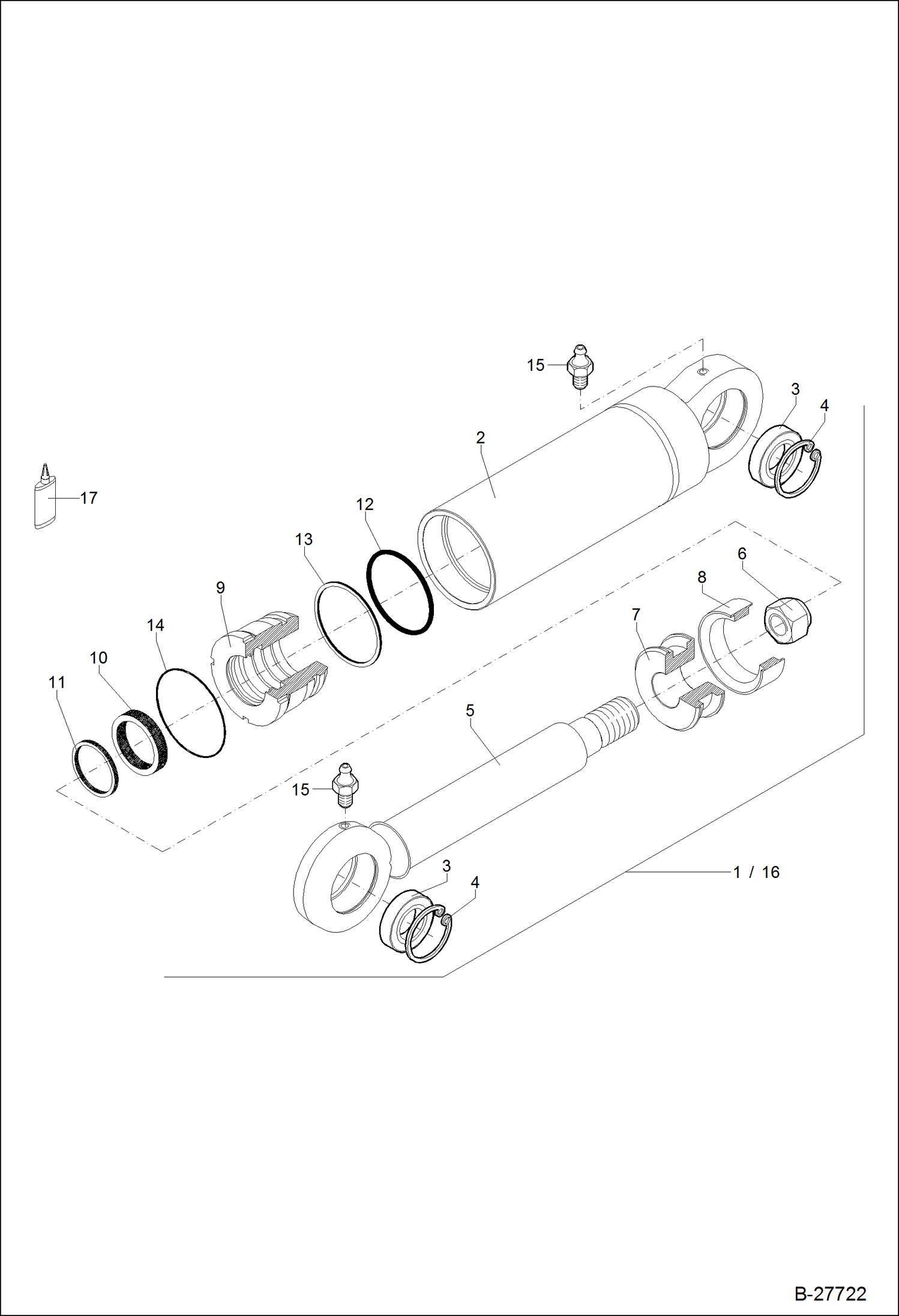

Запчасти Bobcat WL350 HYDRAULIC CYLINDER - LIFTING FRAME HYDRAULIC SYSTEM

1

6501086500

HYDR. CYLINDER CPL. Z 105/60 - Ref. 2-14

2

6501086503

PIPE

3

1950010413

LINKAGE BEARING

4

1456622363

CIRCLIP

5

6501086111

PISTON ROD

6

1212251836

NUT M 42X3

7

0501082015

PISTON

8

1634935036

PISTON SEAL

9

0501082017

BUSHING

10

1965956675

ROD SEAL

11

1974955060

SCRAPER RING

12

1971958518

O-RING 94,2X5,7

13

1966960109

BACK UP RING 95,7X1,7

14

1970958714

O-RING 106X2

15

1607003006

GREASE NIPPLE

16

1976999392

SEAL KIT Ref. 6, 8 & 10-14

17

MCS001038A

GLUE SL 6038
