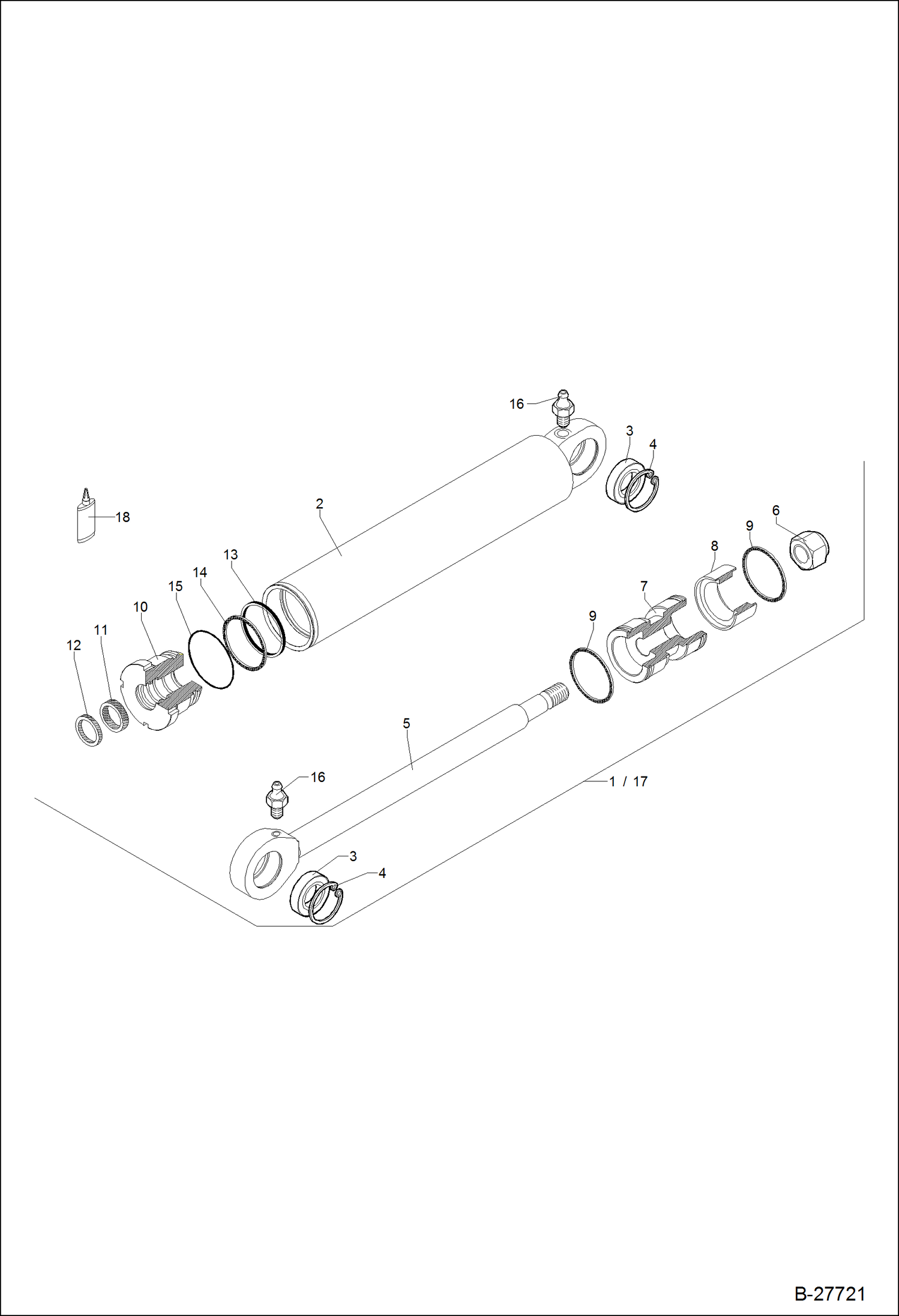

Запчасти Bobcat WL350 HYDRAULIC CYLINDER - STEERING HYDRAULIC SYSTEM

1

6500507500

HYDR. CYLINDER CPL. Z 70/30 - Ref. 2-15

2

6500507503

PIPE

3

1950000810

LINKAGE BEARING

4

1456622149

CIRCLIP

5

6500507011

PISTON ROD

6

1212251819

NUT M 22X2

7

0500507015

PISTON

8

1634943660

PISTON SEAL

9

5074609215

SEGMENT

10

0500507017

BUSHING

11

1965956303

ROD SEAL

12

1974955030

SCRAPER RING

13

1971956324

O-RING 63,10X3,53

14

1966960706

BACK UP RING

15

1971958039

O-RING 69,57X1,78

16

1607003006

GREASE NIPPLE

17

1976999319

SEAL KIT Ref. 6, 8, 9 & 11-15

18

GLUE NLA - Was MCS001036A - A
