PILOT CONTROL VALVE OPTION - 4. CONTROL CIRCUIT

Запчасти Bobcat WL350 PILOT CONTROL VALVE OPTION - 4. CONTROL CIRCUIT HYDRAULIC SYSTEM

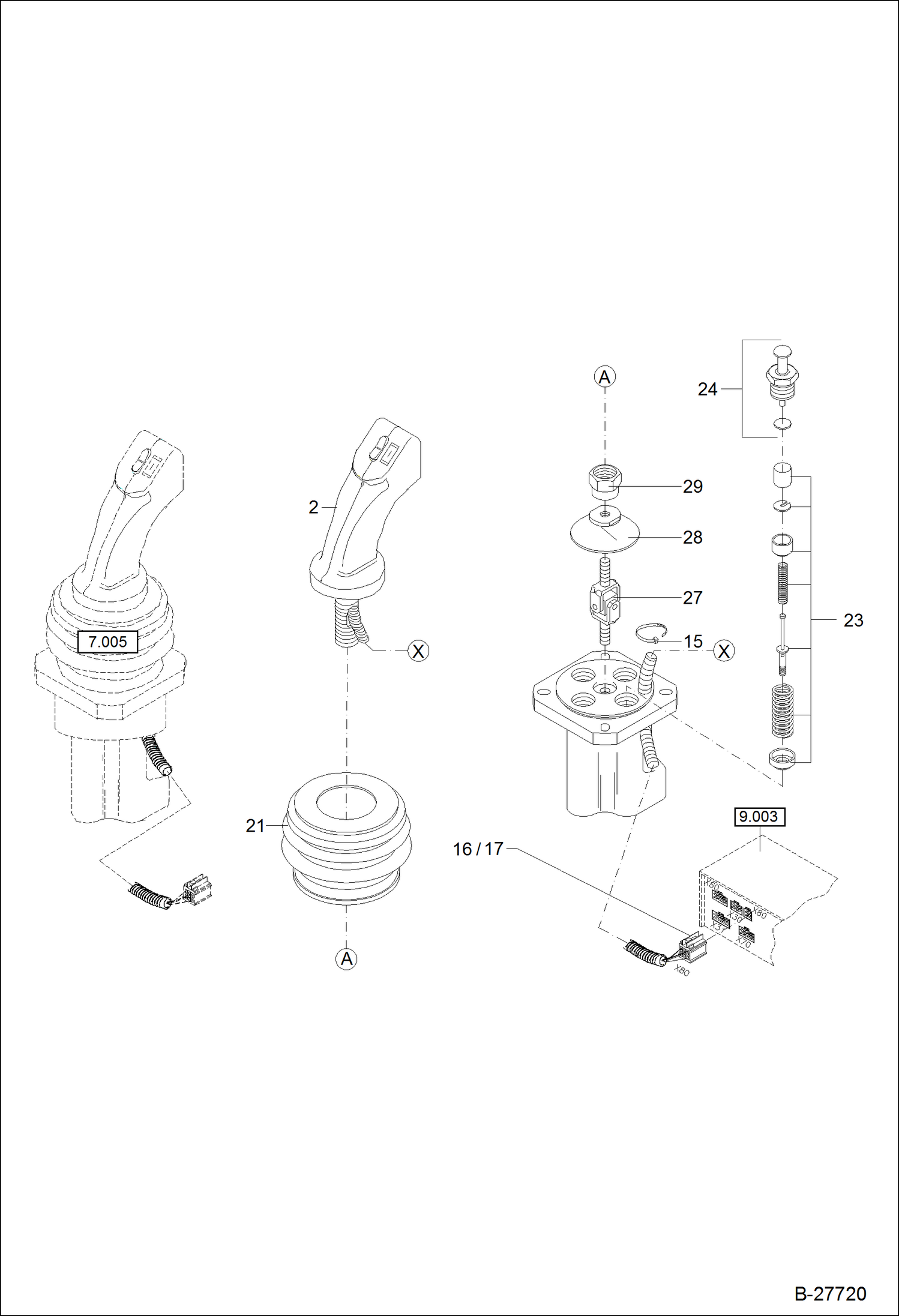

Схема запчастей Bobcat WL350 - PILOT CONTROL VALVE OPTION - 4. CONTROL CIRCUIT HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

5369661327

JOYSTICK, CPL. JP 67

15

5369661249

BINDER

16

5350249757

CONNECTOR 9-POLIG

17

5350249552

CONNECTOR 6.3

21

5369661188

BELLOW

23

5369661231

SET, OPERATING CPL.

24

5369661300

TAPPET, SET

27

5369661226

UNIVERSAL JOINT

28

5369661236

DISC

29

5369661238

NUT M 18X1,5
