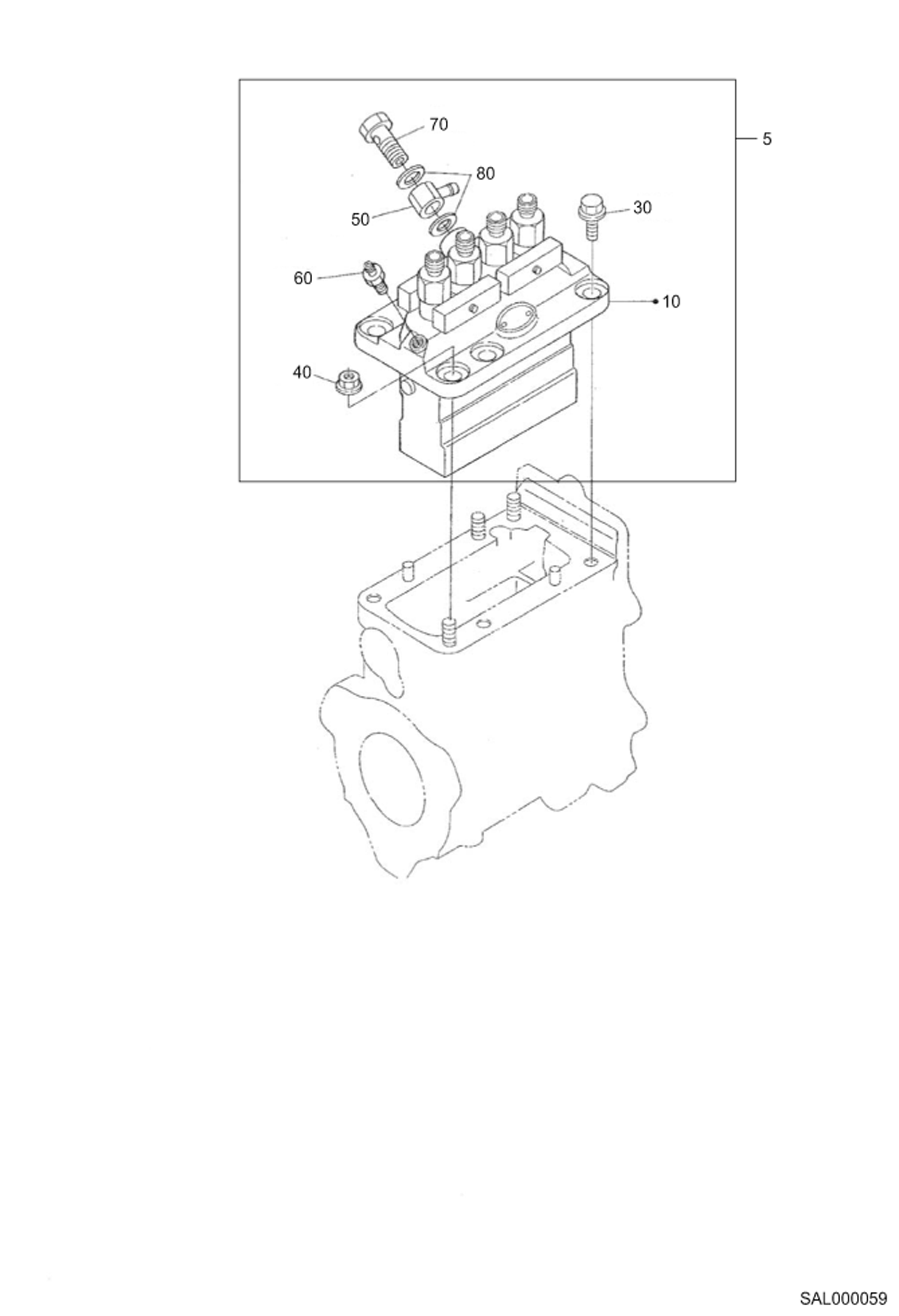

Запчасти Bobcat AL440 INJECTION PUMP POWER UNIT

5

6689307

PUMP, INJECTION UNIT Includes: Ref 10 to 60

5

See Illustration STOP SOLENOID/ SAL000058 + Ref. 10 + 20 under ''Stop sollenoid''

5

See Illustration GOVERNOR/ SAL000060 + Ref. 10 to 210 under ''Governor''

5

+ Ref 50 to 70 + 120 + 130 + 1060 to 240 under ''Pump housing''

5

See Illustration PUMP HOUSING/ SAL000063

5

See Illustration FORK LEVER (GOVERNOR)/ SAL000064 + Ref 10 to 290 under ''Fork Lever (governor)''

5

+ Ref 10 to 30 under ''Sedimenter (Component Parts)''

5

See Illustration PREFILTER (COMPONENT PARTS)/ SAL000068

10

6685936

PUMP, FUEL INJ Includes Ref. 70 to 80

10

6685936REM

PUMP, FUEL INJ. KUBOTA V3300

30

6680755

BOLT

40

6969819

NUT, FLANGE

50

6655515

JOINT

60

6680756

SCREW

70

6680752

BOLT

80

6680753

GASKET
