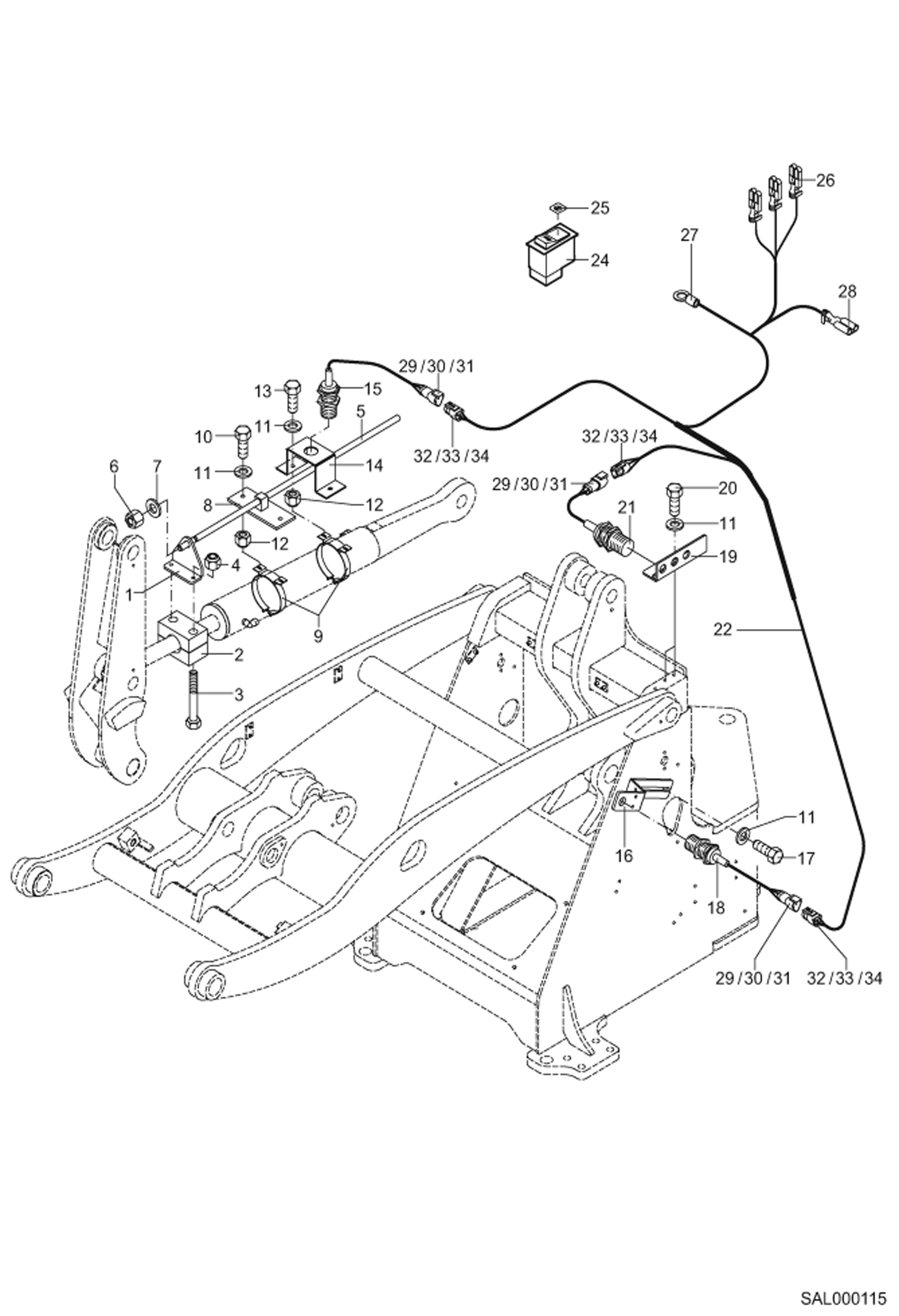

Запчасти Bobcat AL440 BUCKET RETURN POSITIONER WITH LIFTING HEIGHT LIMIT ELECTRIC INSTALLATION

1

0453280003

BRACKET

2

5660199646

HOSE CLIP

3

1007707914

BOLT

4

1212251009

NUT

5

6453280005

THREADED ROD

6

1210707014

NUT

7

1343707061

WASHER

8

0465780002

BRACKET

9

5368654682

BRACKET W. CLAMP

10

1008707618

BOLT

11

1343707057

WASHER

12

1212251011

NUT

13

1008707318

BOLT

14

0465780008

BRACKET

15

5350639047

PROXIMITY SWITCH

16

0453280004

BRACKET

17

1008707018

BOLT

18

5350639018

SWITCH

19

0453280008

ANGLE

20

1008707817

BOLT

21

5350639017

SWITCH

22

0453280014

WIRE HARNESS

24

5050651356

ROCKER SWITCH

25

5358650264

SYMBOL

26

5350249624

FEMALE TERMINAL

27

5350246610

CABLE CONNECTOR

28

5350246805

TERMINAL FEMALE

29

5350555317

HOUSING (FEMALE)

30

5350555308

LOCK

31

5350555325

FEMALE TERMINAL

32

5350555315

HOUSING (MALE)

33

5350555307

LOCK

34

5350555321

MALE TERMINAL
