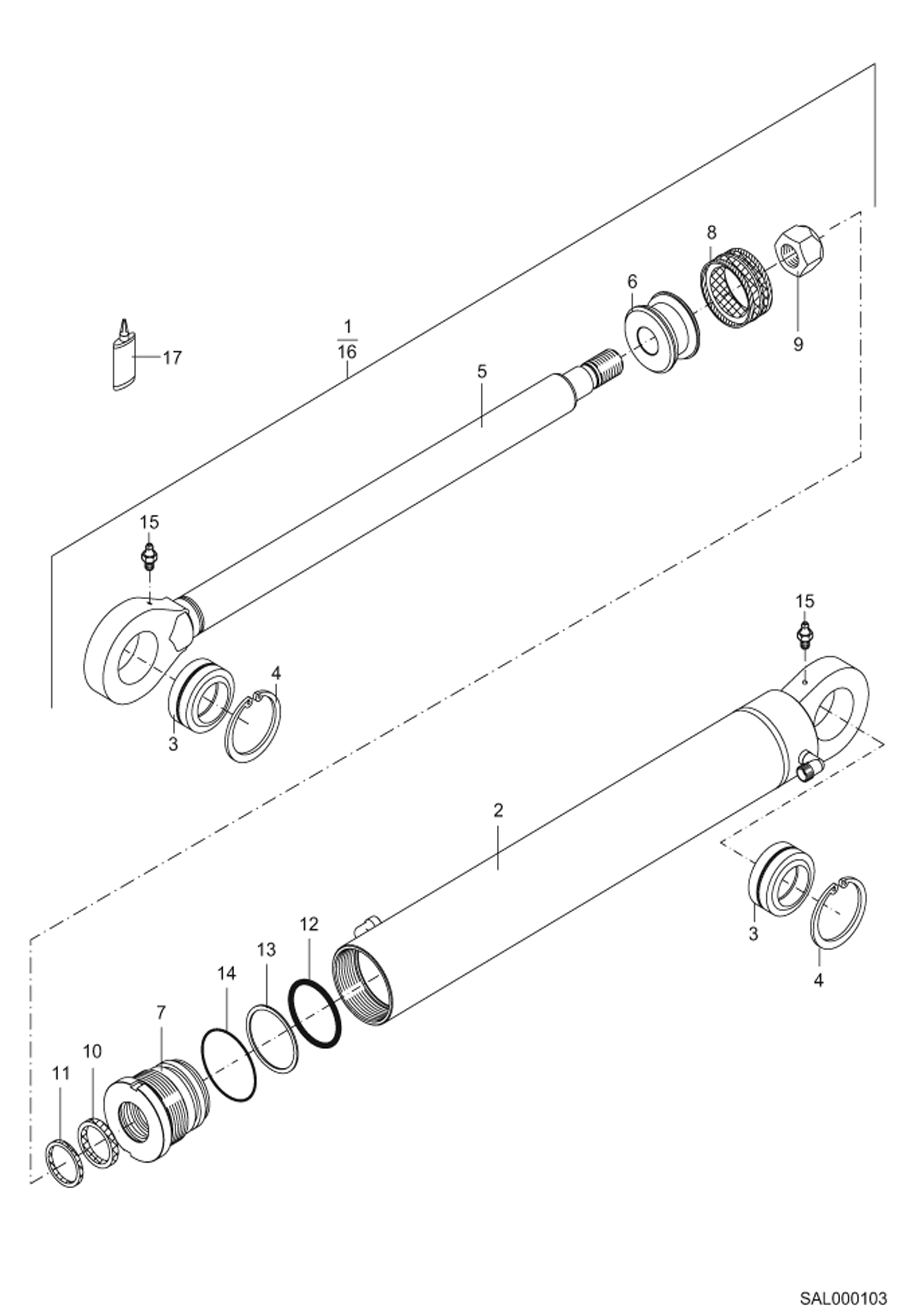

Запчасти Bobcat AL440 LIFTING FRAME CYLINDER HYDRAULIC INSTALLATION

1

6501238100

HYDR. CYLINDER CPL. Inckludes Ref. 2 to 14

2

6501238103

PIPE

3

1950000865

LINKAGE BEARING

4

1456622369

CIRCLIP

5

6501604011

PISTON ROD

6

0501224015

PISTON

7

6501224017

BUSHING

8

1634935021

PISTON SEAL

9

1212251836

NUT Secure with LOCKTITE 242

10

1965956785

SEAL

11

1974955070

SCRAPER RING

12

1971958523

O-RING

13

1966960111

BACK UP RING

14

1971958212

O-RING

15

1607003006

GREASE NIPPLE

16

1976999600

SEAL KIT Includes Ref. 8 to 14

17

GLUE NLA - Was MCS001036A - A
