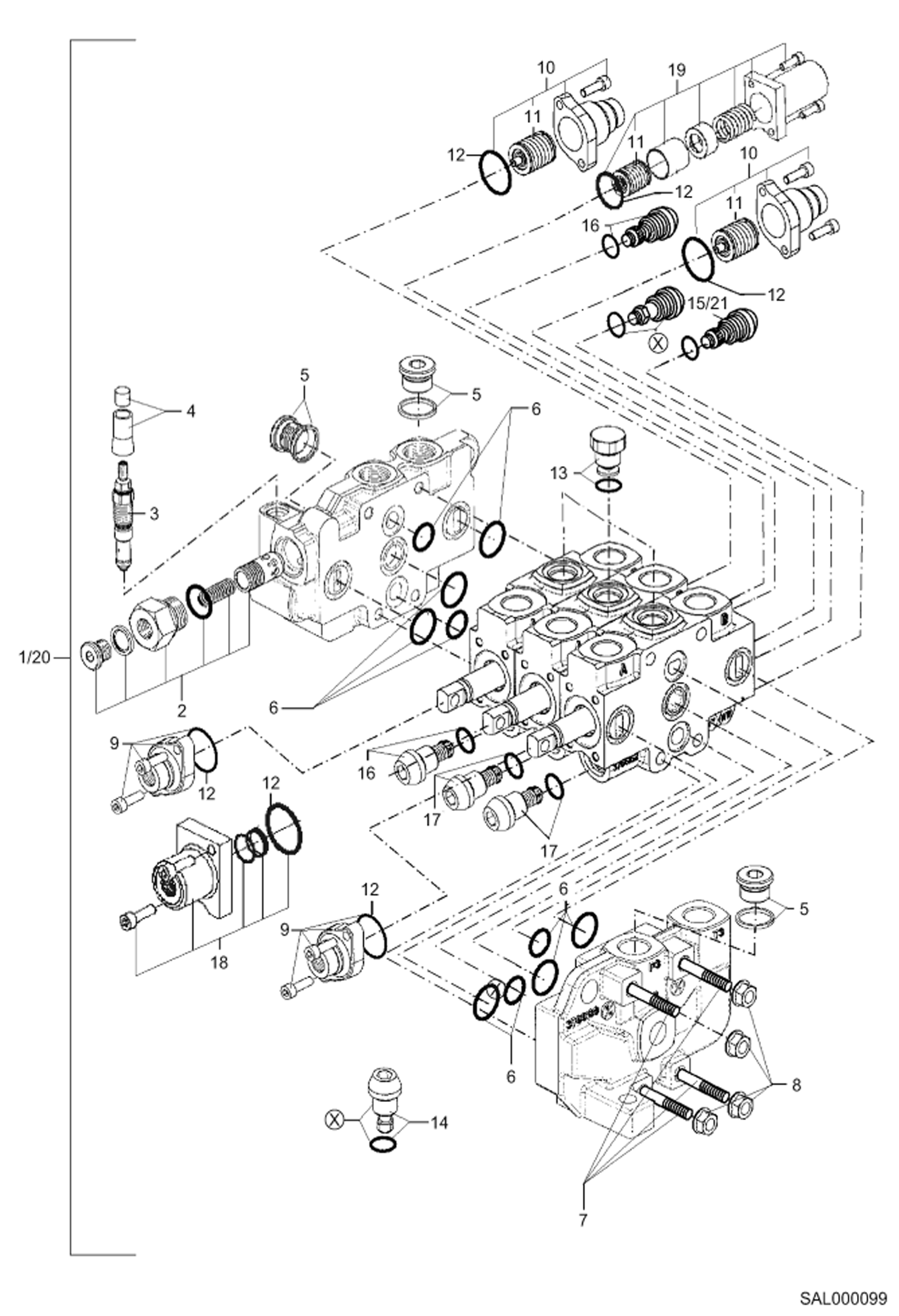

Запчасти Bobcat AL440 VALVE BANK HYDRAULIC INSTALLATION

1

2

5520662051

MAIN RELIEF VALVE CPL.

3

5520662052

VALVE PILOT PART

4

5520662053

SEAL CAP SET

5

5520662054

BLANKING ENDS CPL.

6

5520662055

INTERSECTION SEALS

7

5520662699

TIE ROD KIT

8

5520662057

NUT KIT

9

5520662058

CAP KIT A-SIDE

10

5520662059

CAP KIT B-SIDE

11

SPRING PACK NLA - Order 5520662698 (Cap Kit, B-Side) - Was 5520662060 - A

12

5520662061

SEAL KIT

13

5520662062

CHECK VALVE CPL.

14

5520662063

ANTI-CAVITATION VALVE CPL.

15

16

5520662065

RELIEF VALVE CPL.

17

5520662066

RELIEF VALVE CPL.

18

5520662700

CAP KIT A-SIDE

19

5520662698

CAP KIT B-SIDE

20

5520661872

CONTROL VALVE

21

5520662742

RELIEF VALVE CPL.
