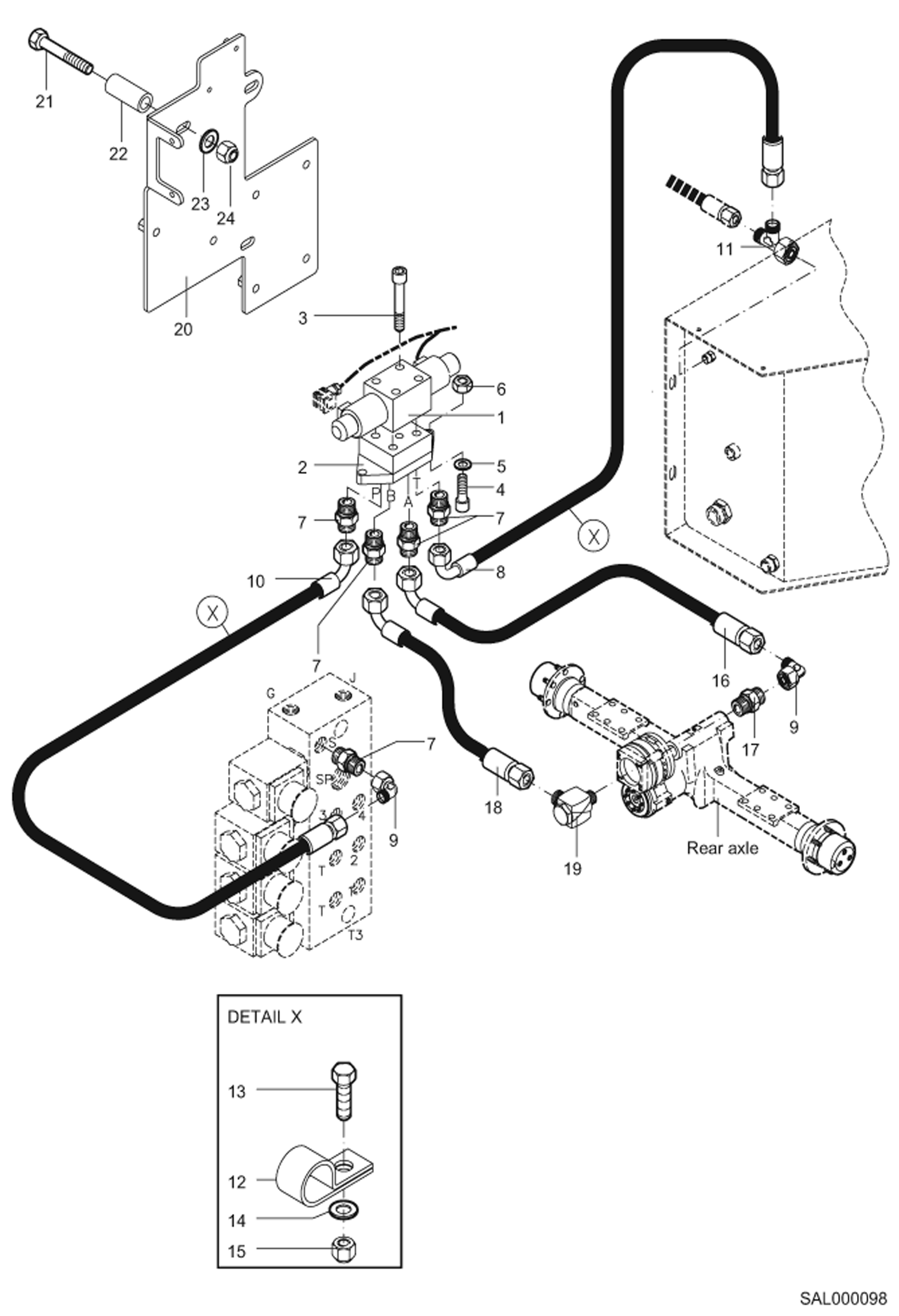

Запчасти Bobcat AL440 2-STAGE GEARBOX HYDRAULIC INSTALLATION

1

5050656088

CONTROL VALVE

2

5003700003

CONNECTING PLATE

3

1045907011

BOLT

4

1045707513

BOLT

5

1290707014

WASHER

6

1212251009

NUT

7

1915060255

FITTING

8

4506152351

HOSE ASSEMBLY CPL.

9

1924060151

FITTING

10

4506097351

HOSE

11

1919060351

FITTING

12

5000210400

HOSE CLIP

13

1008707719

BOLT

14

1290707018

WASHER

15

1212251011

NUT

16

4506072351

HOSE

17

1915000905

FITTING

18

1921060154

FITTING

19

1212251013

NUT

20

0451539005

VALVE PLATE

21

1008707924

BOLT

22

0188814218

SPACE BUSHING

23

1290707020

WASHER
