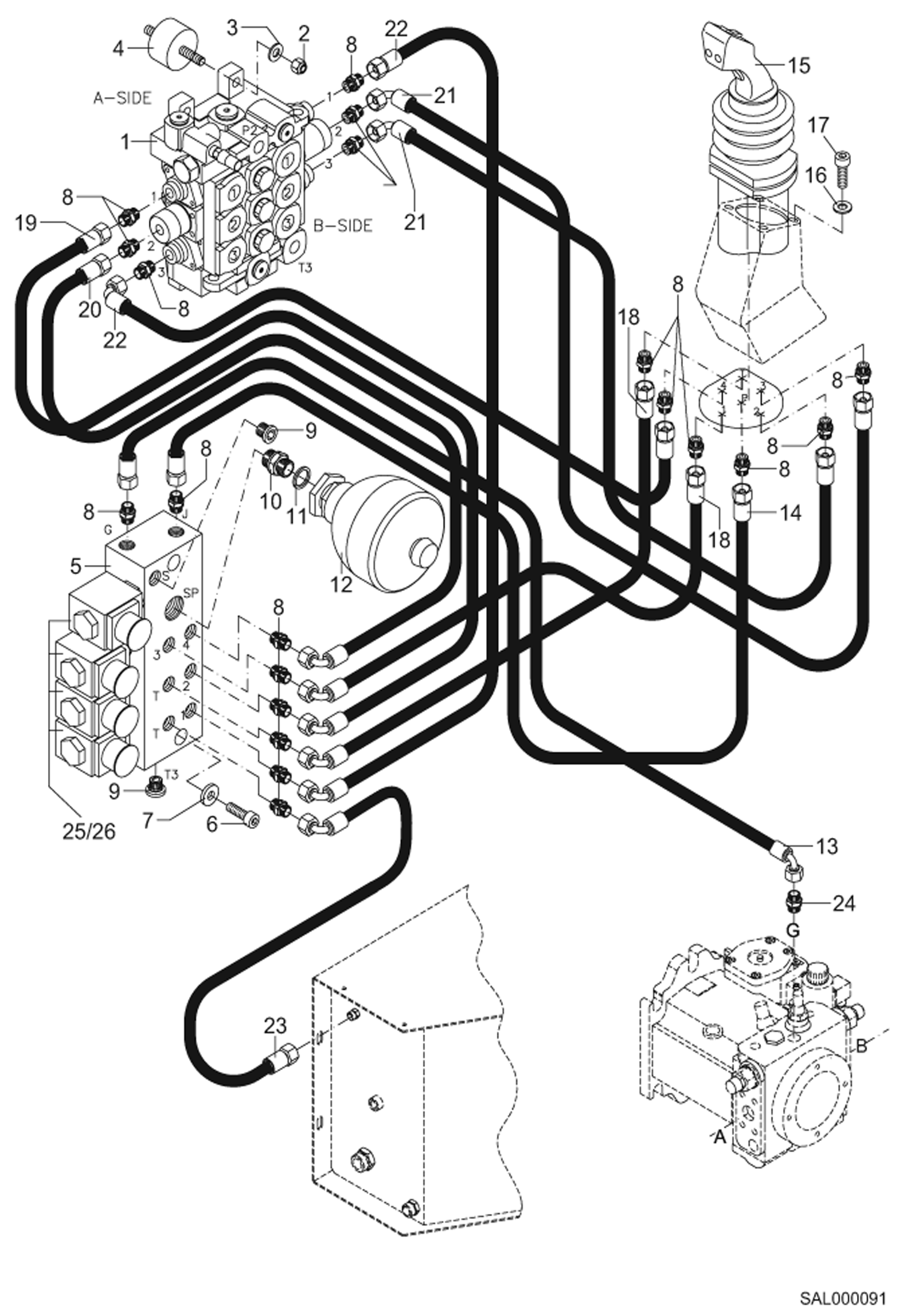

Запчасти Bobcat AL440 PILOT CONTROL HYDRAULIC INSTALLATION

1

5520661872

CONTROL VALVE See Illustration VALVE BANK/ SAL000099

2

1212251013

NUT

3

1290707020

WASHER

4

5803655502

RUBBER BASE

5

5572100026

SOLENOID VALVE

6

1045707724

BOLT

7

1343707059

WASHER

8

1915000753

FITTING

9

1912060452

PLUG

10

1915060264

FITTING

11

1636815359

SEAL RING

12

5385657890

HYDR.ACCUMULATOR

13

4506261351

HOSE

14

4506080240

HOSE

15

5369661260

PILOT CONTR. VALVE

16

1290707014

WASHER

17

1045707513

BOLT

18

4506115351

HOSE ASSEMBLY CPL.

19

4506047351

HOSE

20

4506040351

HOSE

21

4506097351

HOSE

22

4506072351

HOSE

23

4506085351

HOSE

24

1915000641

FITTING

25

5572100031

MAGNET CARTRIDGE

26

3600087177

O-RING
