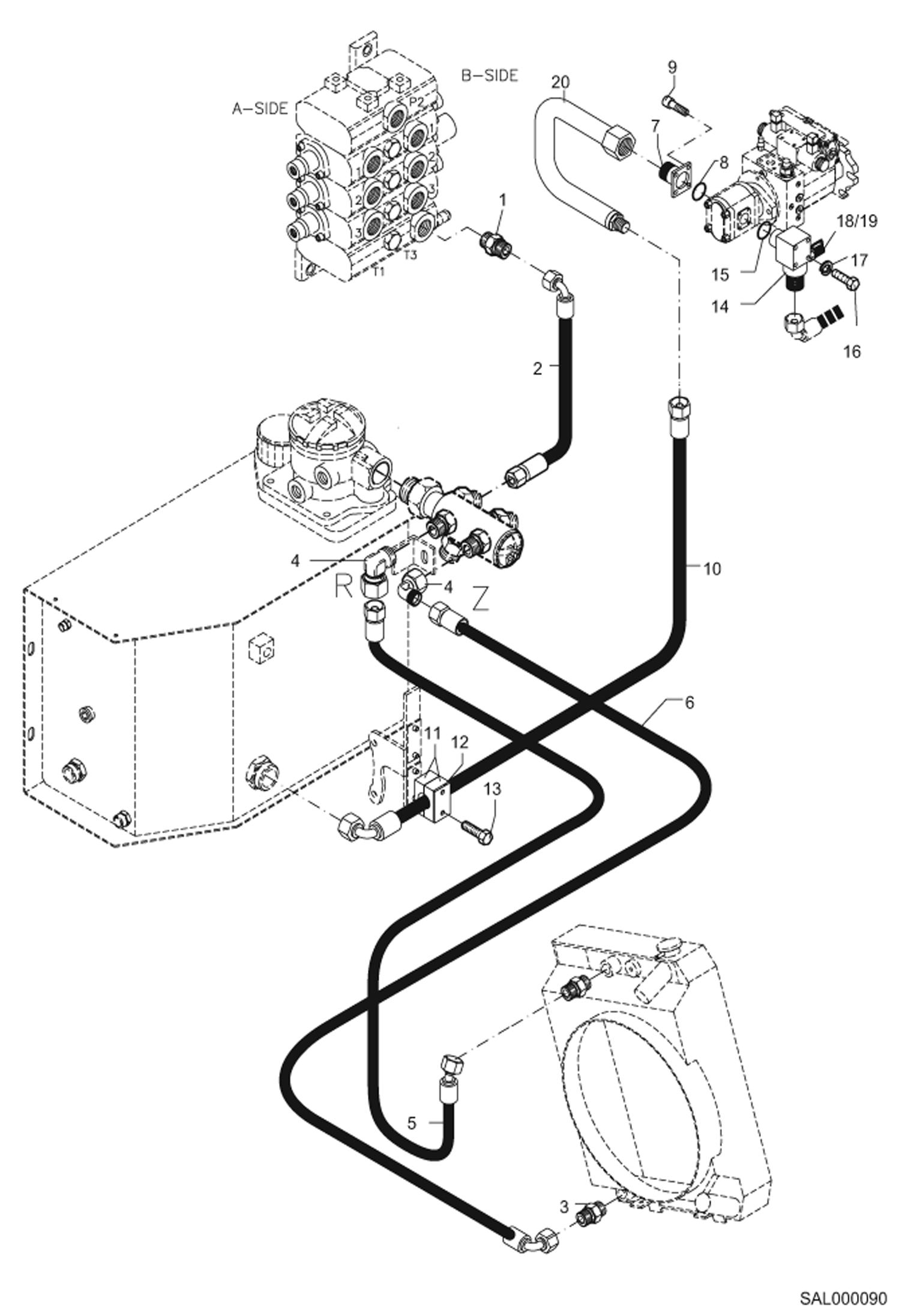

Запчасти Bobcat AL440 LOADING EQUIPMENT 2 HYDRAULIC INSTALLATION

1

5260310273

FITTING

2

4125081156

HOSE

3

1915060567

FITTING

4

192400886

FITTING

5

4120093151

HOSE

6

4120112156

HOSE

7

5260310277

FLANGE CONNECTION

8

1970956525

O-RING

9

1045707318

BOLT

10

4132150226

HOSE

11

5660199644

HOSE CLIP

12

5660200160

COVER PLATE

13

1007707714

BOLT

14

5260310275

FLANGE CONNECTION

15

1970956625

O-RING

16

1007707414

BOLT

17

1321707014

SPRING WASHER

18

5066234000

TEST FITTING Includes Ref. 19

19

1912000676

SEAL RING

20

5260310360

PIPE
