Запчасти Bobcat AL440 DRIVE HYDRAULIC INSTALLATION

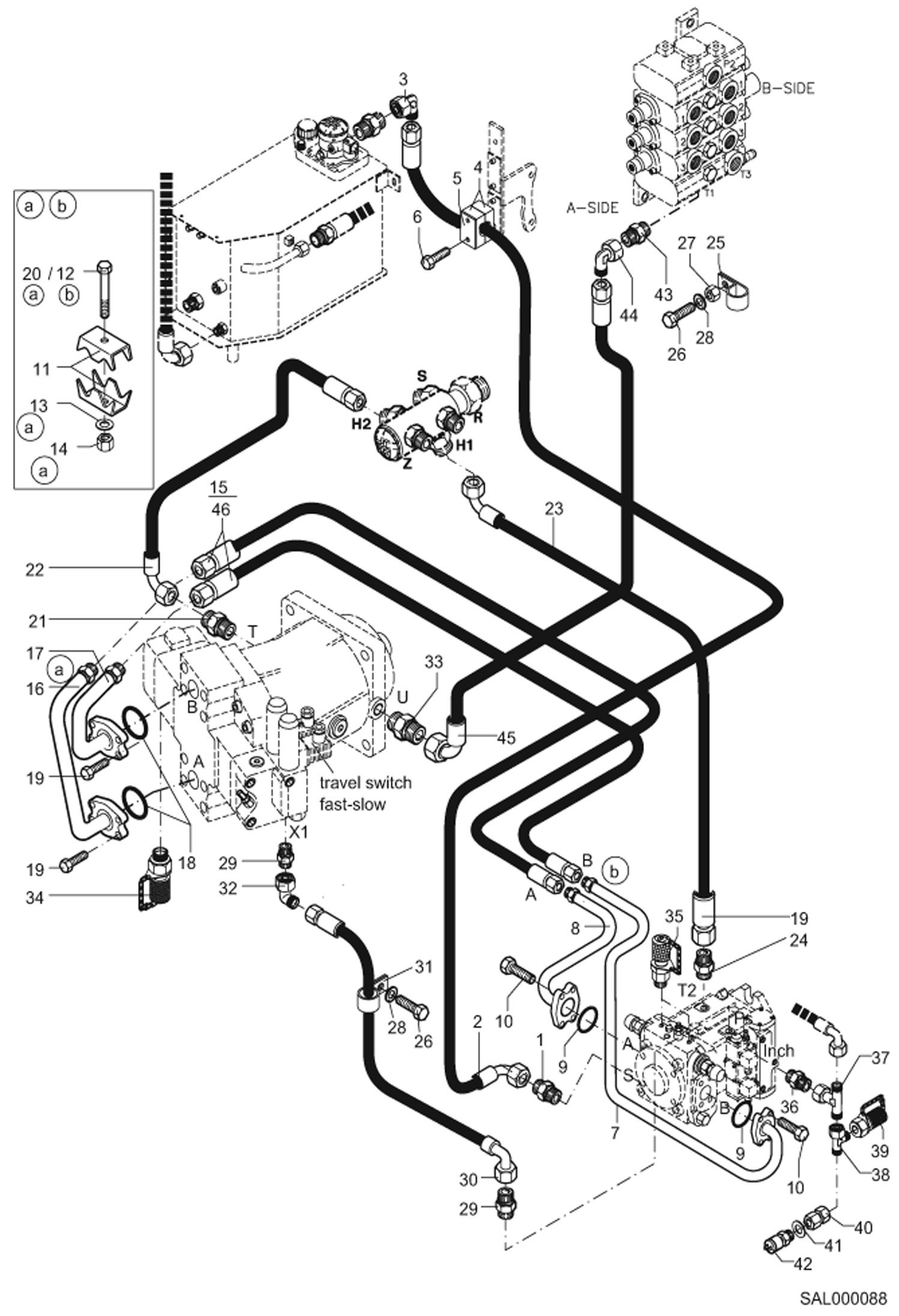

Схема запчастей Bobcat AL440 - DRIVE HYDRAULIC INSTALLATION

Артикул

Название

Примечание

Количество

1

1915060568

FITTING

2

4125117151

HOSE

3

1924060157

FITTING

4

5660199805

HOSE CLIP

5

5660200150

COVER

6

1007707514

BOLT

7

5260310352

ELBOW

8

5260310269

ELBOW

8

INSTRUCTION NSS - Order 5260310269 - Was 5260310269-D - A

9

1971956318

O-RING

10

1008707124

BOLT

11

0202627060

PIPE CLIP

12

1007707624

BOLT

13

1290707020

WASHER

14

1212251013

NUT

15

4470087493

HOSE

16

5260310195

INTERMEDIATE PIECE

17

5260310197

INTERMEDIATE PIECE

18

1971956322

O-RING

19

1008707230

BOLT

20

1007707125

BOLT

21

1915060672

FITTING

22

4120112156

HOSE

23

4120079156

HOSE

24

1915060667

FITTING

25

5000210420

HOSE CLIP

26

1008707018

BOLT

27

1212251011

NUT

28

1343707057

WASHER

29

1915060754

FITTING

30

4506235351

HOSE

31

5000096800

HOSE CLAMP

32

1924060151

FITTING

33

1915000759

FITTING

34

5066253805

METER CONNECTION

35

5066253605

METER CONNECTION

36

1915060655

FITTING

37

1919060151

FITTING

38

1919060351

FITTING

39

5066234200

METER CONNECTION

40

1943000101

CONNECTION

41

1636815354

SEAL RING

42

7031402

SWITCH, PRESS Was 5472661573 - A

43

1915060262

FITTING

44

1924060153

FITTING

45

4110080374

HOSE

46

4470096493

HOSE

Выбрано товаров: 47
