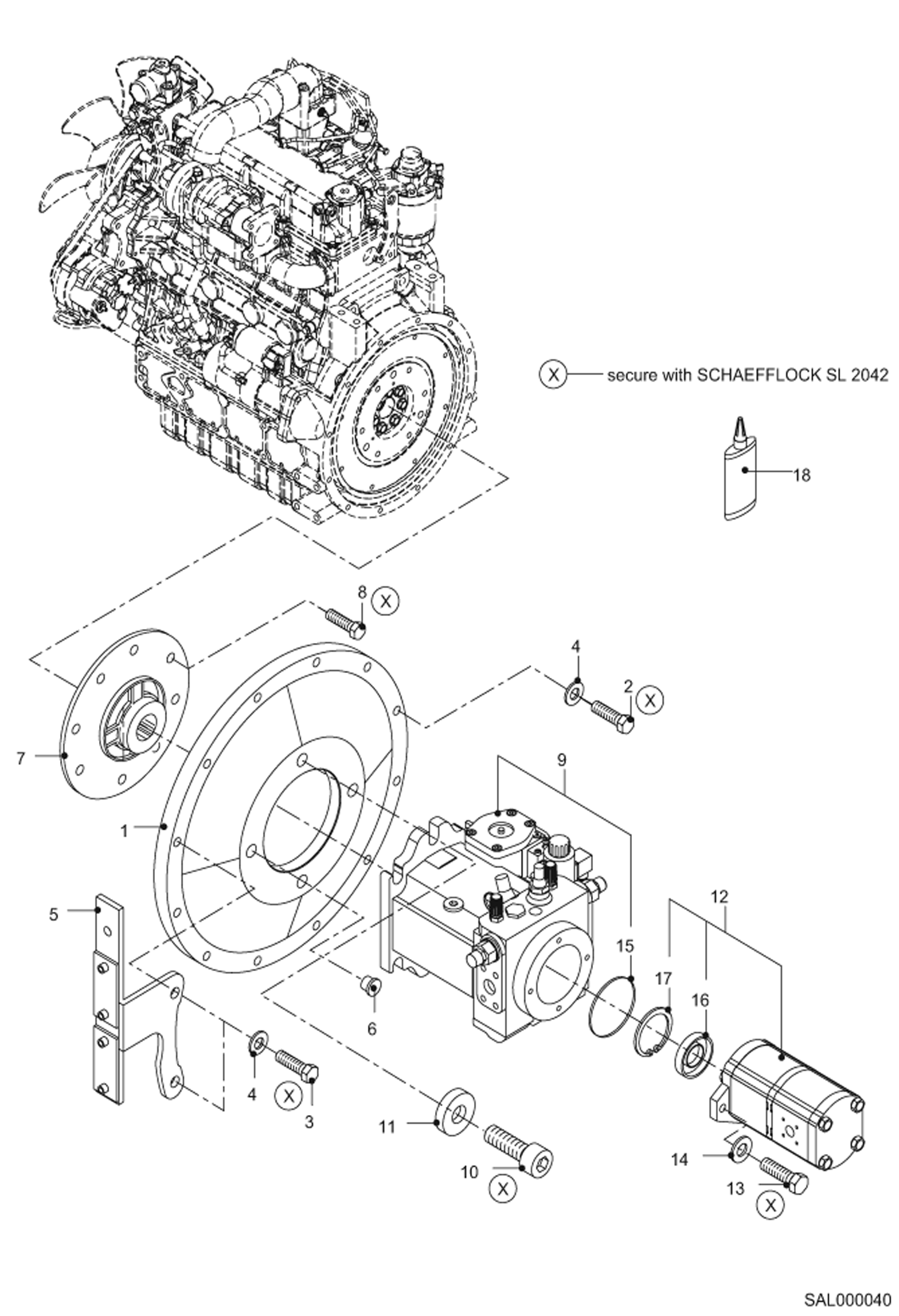

Запчасти Bobcat AL440 PUMPS MOUNTING HYDRAULIC INSTALLATION

1

5105660759

FLANGE

2

1011707247

BOLT Secure with LOCTITE 242

3

1011707347

BOLT Secure with LOCTITE 242

4

1290707020

WASHER

5

6451017005

BRACKET

6

7

5105660757

COUPLING

8

1011707147

BOLT Secure with LOCTITE 242

9

5364662425

VARIABLE DISPLACEMENT PUMP Includes Ref. 15

10

1045707141

BOLT Secure with LOCTITE 242

11

0396017002

WASHER

12

5100620015

GEAR TYPE PUMP Includes Ref. 16 to 17

13

1008707030

BOLT Secure with LOCTITE 242

14

1290707022

WASHER

15

1971956233

O-RING

16

5100659033

SHAFT SEAL

17

5100659034

CIRCLIP

18

MCS001035A

GLUE
