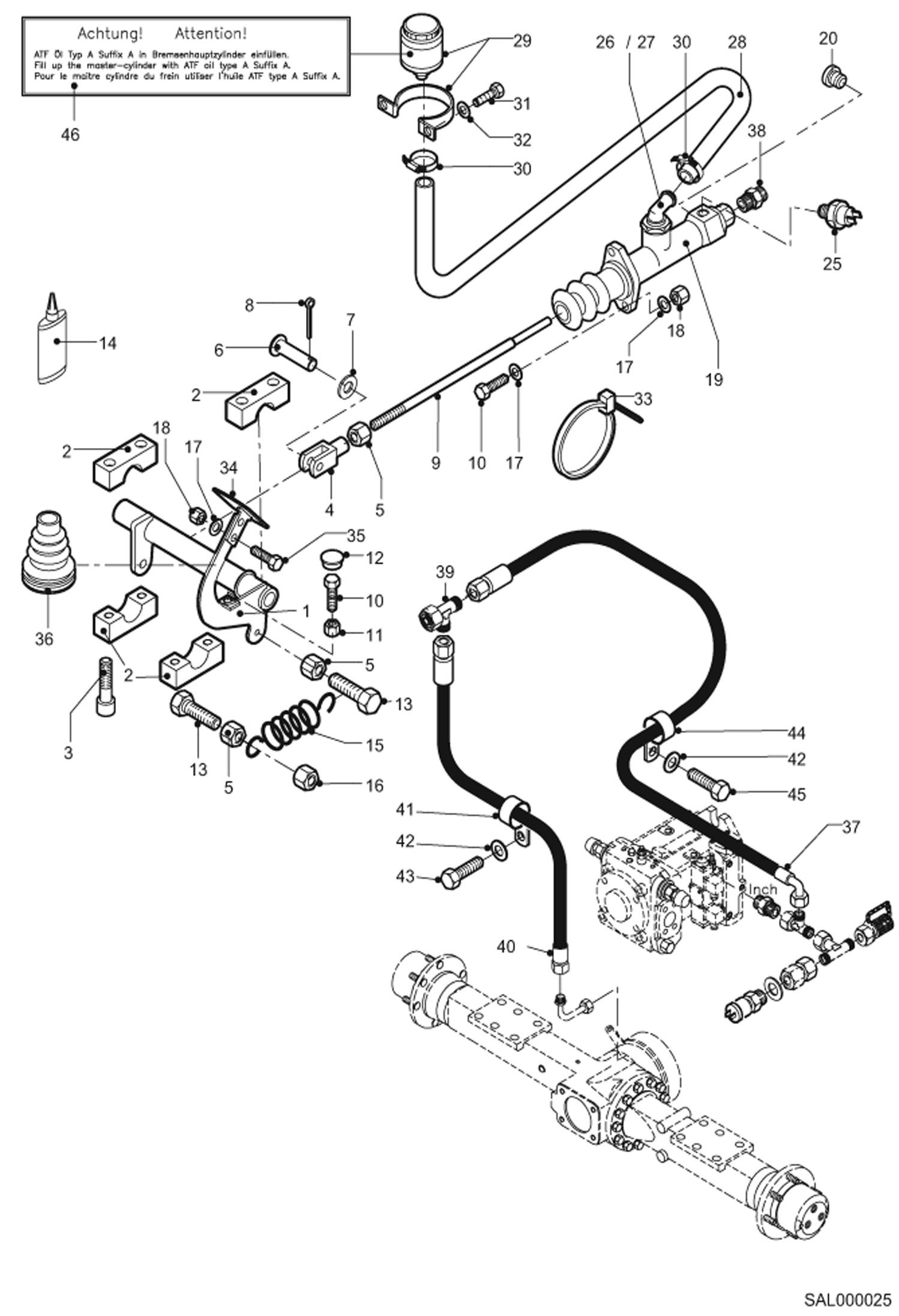

Запчасти Bobcat AL440 SERVICE BRAKE 36 km/h Fast Travel Version HYDRAULIC INSTALLATION

1

6451028002

BRAKE PEDAL

2

5660199790

BEARING SECTION

3

1045707824

BOLT Secure With LOCTITE 242

4

1796707008

CLEVIS

5

1210707013

NUT

6

1360707126

PIN

7

1290707020

WASHER

8

1395707917

COTTER PIN

9

6451028006

THREADED ROD

10

1008707618

BOLT

11

1210707011

NUT

12

1980930615

PROTECTION PLUG

13

1007707424

BOLT

14

MCS001035A

GLUE

15

5064162330

SPRING

16

1212251013

NUT

17

1290707018

WASHER

18

1212251011

NUT

19

5650656598

MAIN CYLINDER

20

- -

NAME PLATE

25

5472661595

PRESSURE SWITCH

26

5650046505

FITTING

27

1636815359

SEAL RING

28

0461528002

HOSE

29

5650638854

EXPANSION TANK

30

5603320362

PIPE CLIP

31

1008707912

BOLT

32

1307707014

WASHER

33

5350650392

BINDER

34

6336028107

BRACKET FOOT PEDAL

35

1008707318

BOLT

36

5255042380

BELLOWS

37

4256235371

HOSE

38

0334028010

FITTING

39

1919060351

FITTING

40

4506263466

HOSE

41

5000095200

HOSE CLIP

42

1343707057

WASHER

43

1008707817

BOLT

44

5000136820

HOSE CLIP

45

1008707018

BOLT

46

0398120020

MARKING PLATE
