Запчасти Bobcat AL440 AXLE, TIRES DRIVE SYSTEM

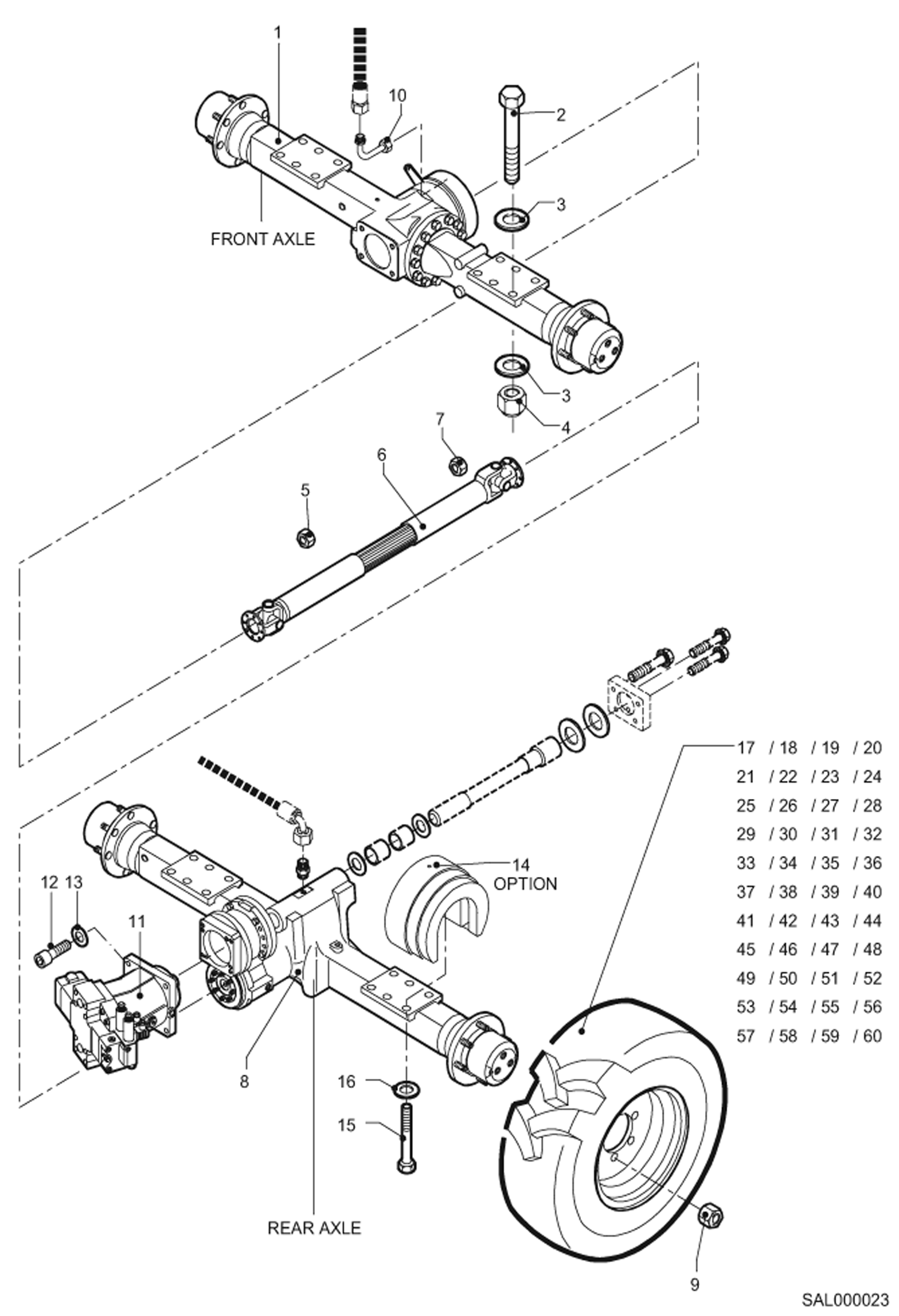

Схема запчастей Bobcat AL440 - AXLE, TIRES DRIVE SYSTEM

Артикул

Название

Примечание

Количество

1

5904661685

FRONT AXLE

2

1007707553

BOLT

3

1290707033

WASHER

4

1212251018

NUT

5

1214907013

NUT

6

5200661108

CARDAN SHAFT

7

1214907411

NUT

8

5904661690

REAR AXLE

9

1270707618

NUT

10

5904660751

BRAKE LINE

11

5364664190

VARIABLE MOTOR

11

1970956137

O-RING between motor and gearcase

12

1045707430

BOLT

13

1290707022

WASHER

14

6454219002

REAR AXLE WEIGHT

15

1008707241

BOLT

16

1343707065

WASHER

17

6337294000

WHEEL 16/70-20 10PR MPT; Includes Ref. 18 to 20

18

5153643500

TIRE D. 16/70-20 EM E91/2 TL 10PR

19

5307656027

RIM

20

5153643505

VALVE

21

6337295000

WHEEL R 14.5-20MPT 10PR; Includes Ref. 22 to 24

22

TIRE R 14.5-20 TL TG NYLON E91-20 10PR NLA - R 14.5-20 TL TG NYLON E91-20 10PR - Was 5153638700 - A

23

5307586170

RIM

24

5153643505

VALVE

25

6337296000

WHEEL 405/70 R20 TL L; Includes Ref. 26 to 28

26

5153658393

TIRE DUNLOP 405/70 R20 SP T9 TL L

27

5307656027

RIM

28

5153643505

VALVE

29

6337296500

WHEEL 375/ 75 R20 XM 27TL; Includes Ref. 30 to 32

30

5153644460

TIRE MICHELIN 375/75 R20XM27 143B TL

31

5307586170

RIM

32

5153643505

VALVE

33

6337293000

WHEEL 12.2-20 TG3210PR; Includes Ref. 34 to 36

34

TIRE NLA - 12.5-20 TG32 MPT NYTL 10PR - Was 5153632150 - A

35

5307586170

RIM

36

5153643505

VALVE

37

6337293500

WHEEL 335/80 R20 XM27TL; Includes Ref. 38 to 40

38

5153658387

TIRE MICHELIN 335/80R20XM27 141B TL

39

5307586170

RIM

40

5153643505

VALVE

41

6337294500

WHEEL 405/70 R20 XM27TL; Includes Ref. 42 to 44

42

5153658391

TIRE MICHELIN 405/70 R20XM27 143B TL

43

5307586170

RIM

44

5153643505

VALVE

45

6337293000

WHEEL 12.5-20 10PR; Includes Ref. 46 to 48

46

TIRE NLA - 12.5-20 TG32 MPT NYTL 10PR - Was 5153632150 - A

47

5307586170

RIM

48

5153643505

VALVE

49

6337295600

WHEEL 14.5-20MPT 10PR; Includes Ref. 50 to 52

50

TIRE DUNLOP 14.5-20 TL 10TR E91 DUNLOP 14.5-20 TL 10TR E91 - Was 5153661127

51

5307586170

RIM

52

5153643505

VALVE

53

6462793500

WHEEL 16/70-20EM-E91/2; Includes Ref. 54 to 56

54

5153643500

TIRE D.16/70-20 EM E91/2 TL 10PR

55

5307656027

RIM

56

5153643505

VALVE

57

6337297000

WHEEL Includes Ref. 58 to 60

58

5153661150

TIRE DUNLOP 365/80R20TL SPT9

59

5307586170

RIM

60

5153643505

VALVE

61

6453290000

WHEEL MICHELIN 425/75 R20 XM 27TL; Includes Ref. 62 to 64

62

5153654490

TIRE MICHELIN 425/75 R20XM27 155B TL

63

5307656027

RIM

64

5153643505

VALVE

65

6453297000

WHEEL 405/70 R20 XZSL; Includes Ref. 66 to 68

66

5153658420

TIRE 405/70 R20 XZSL

67

5307656027

RIM

68

5153632954

VALVE

69

6453295600

WHEEL 405/70 R20 PG 75R; Includes Ref. 70 to 73

70

5153661363

TIRE 405/70 R20 PG75R

71

5307656027

RIM

72

5153643505

VALVE

73

6453298500

WHEEL 405/70 R20 EM 01; Includes Ref. 74 to 76

74

5153665020

TIRE 405/70 R20 EM 01

75

5307656027

RIM

76

5153643505

VALVE

Выбрано товаров: 77
