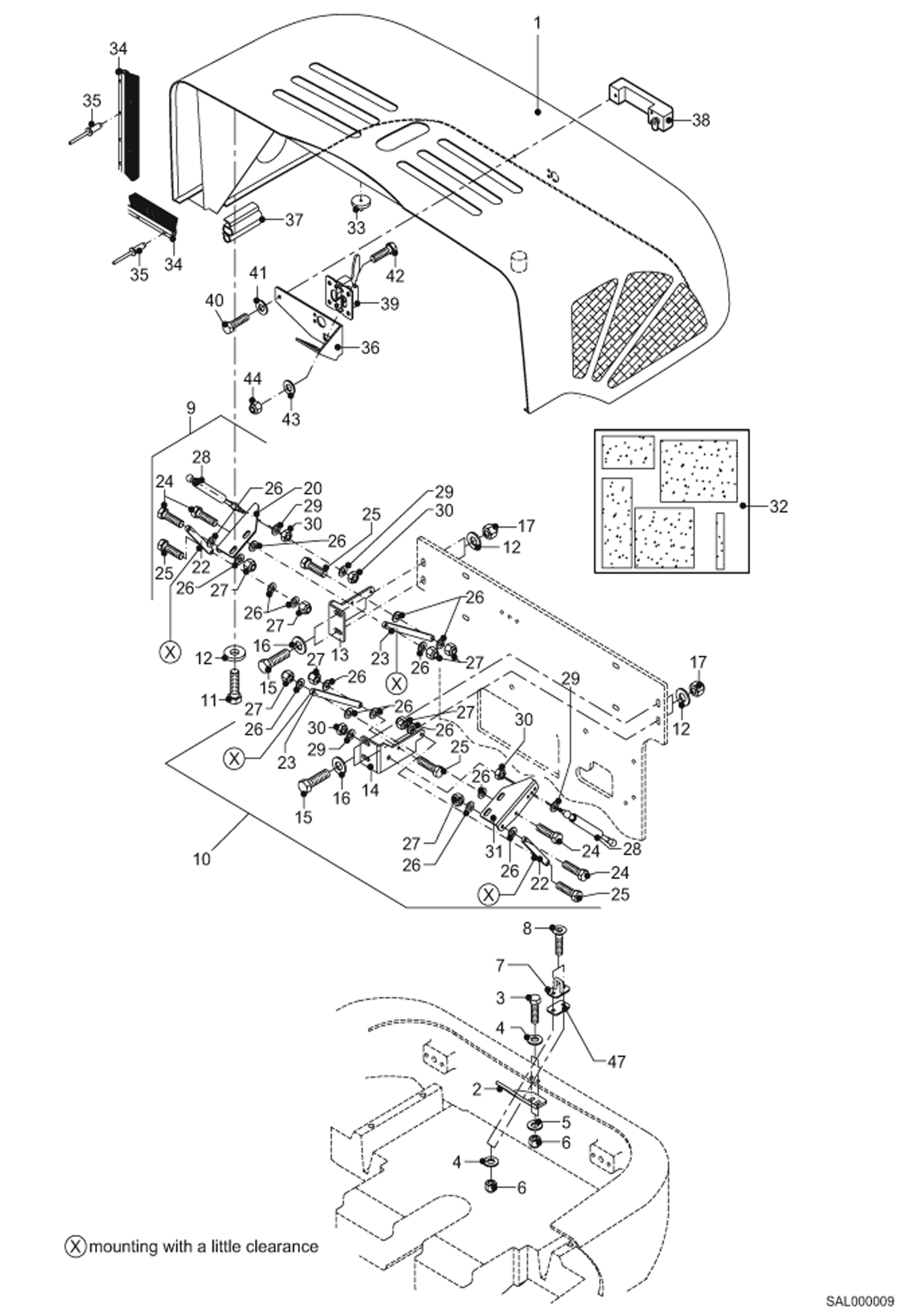

Запчасти Bobcat AL440 ENGINE COVER MAIN FRAME

1

5529020090

ENGINE COVER

2

0453819059

BRACKET

3

1069907019

BOLT

4

1290707018

WASHER

5

1343707057

WASHER

6

1212251011

NUT

7

5354604338

COTTER

8

1008707618

BOLT

9

0453019030

JOINT CPL. RIGHT Includes Ref. 13 + 20 to 30

10

0453019031

JOINT CPL. LEFT Includes Ref. 14 + 21 to 31

11

1008707923

BOLT

12

1343707059

WASHER

13

0453019038

ANGLE RIGHT

14

0453019039

ANGLE LEFT

15

1007707624

BOLT

16

1343707059

WASHER

17

1212251013

NUT

20

0453019036

ANGLE RIGHT

22

0451019033

FLAP

23

0451019034

FLAP

24

1019707718

BOLT

25

1019707818

BOLT

26

1290707020

WASHER

27

1212251011

NUT

28

5696636571

GAS PRESSURE SPRY.

29

1290707020

WASHER

30

1210707013

NUT

31

0453019037

ANGLE LEFT

32

LINING SET

33

5529050006

CLIP

34

5529050003

SEAL BRUSH

35

1940000939

RIVET

36

6451019048

BRACKET

37

7025098

SEAL, BULK/MTR - A

38

5354604442

PLASTIC HANDLE

39

5354604335

HOOD LATCH

40

1008707018

BOLT

41

1343707055

WASHER

42

1008707618

BOLT

43

1290707018

WASHER

44

1212251011

NUT

47

6176028067

FLAP
