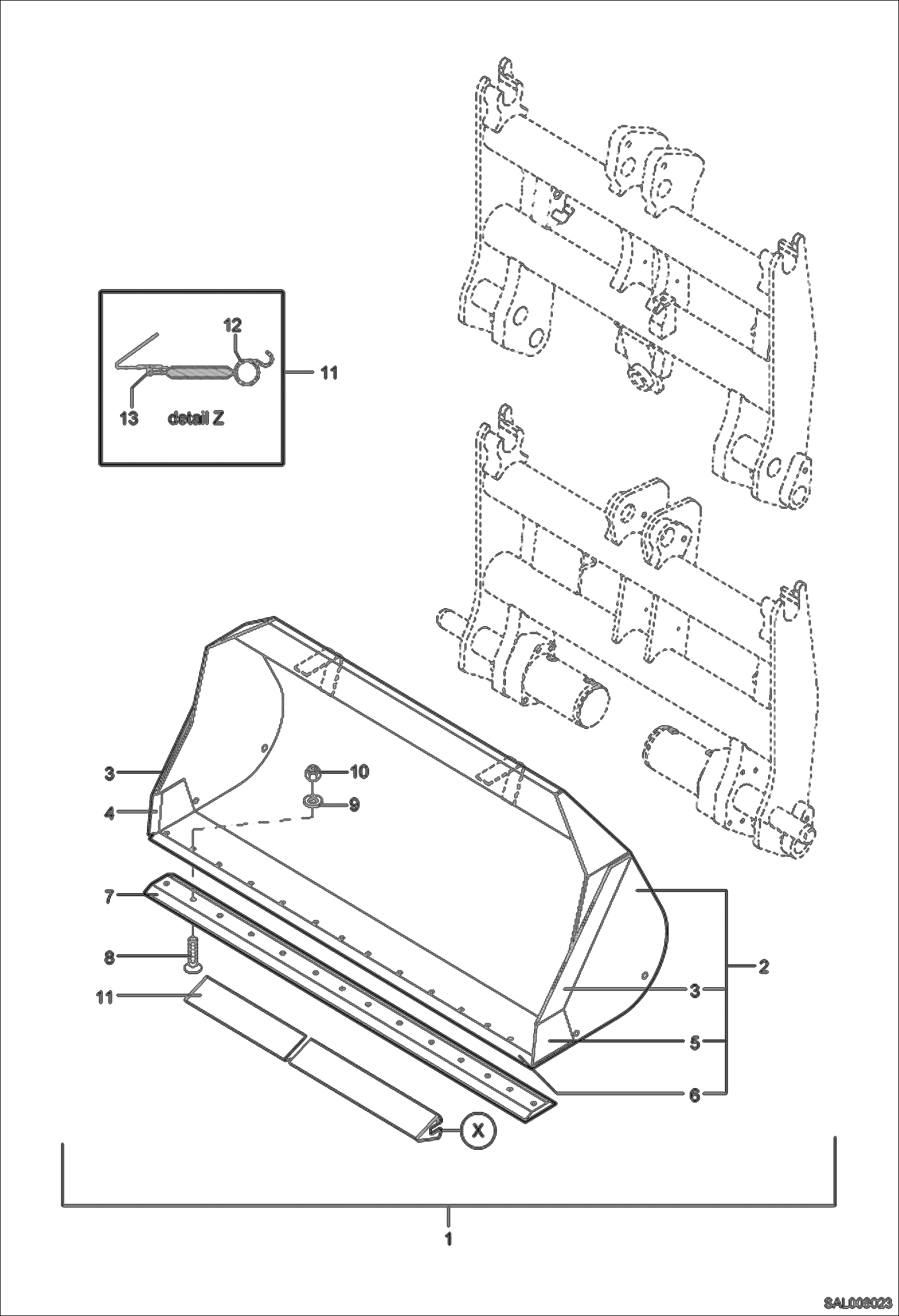

Запчасти Bobcat AL440 LICHT MATERIAL BUCKET 2200 mm Навесное оборудование

1

6463709000

LIGHT WEIGHT SHOVEL CPL KPL - W/Ref. 2-13

2

0463708001

LIGHT WEIGHT SHOVEL W/Ref. 3-6

3

6397701104

SIDE-STRIP

4

0397201023

CUTTING EDGE RIGHT

5

0397201024

CUTTING EDGE LEFT

6

0390302003

CUTTING EDGE

7

0464702003

ADDITIONAL BLADE SCREWBALL.

8

1062707436

BOLT M 14X60

9

1290707025

WASHER 15

10

1212251015

NUT M 14

11

TOOTH PROTECTION CPL. W/Ref. 12-13

12

SPRING

13

COTTER PIN
