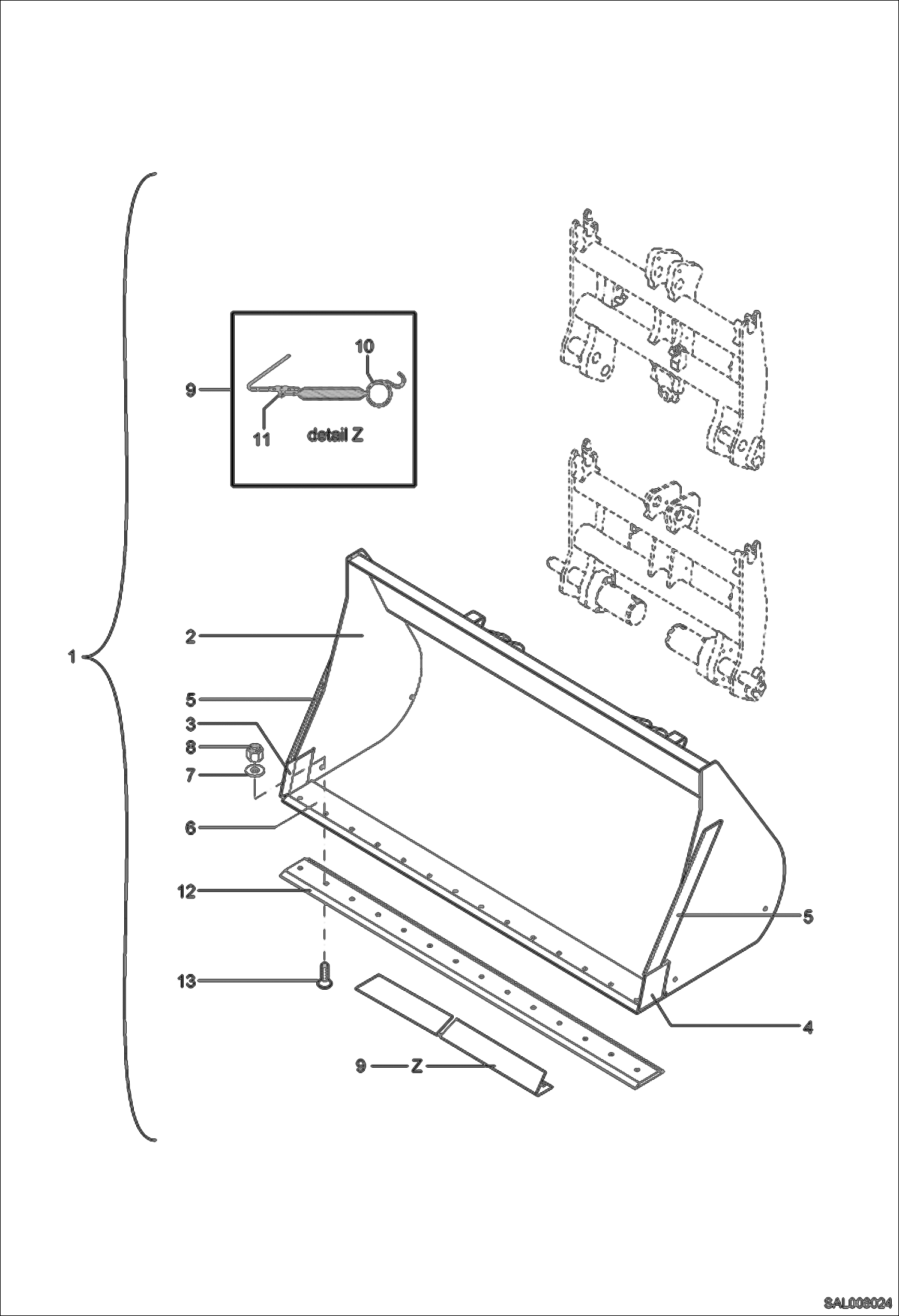

Запчасти Bobcat AL440 LICHT MATERIAL BUCKET 1950 mm Навесное оборудование

1

6453207000

LIGHT MATERIAL BUCKET CPL: 1950MM1,35CBM - W/Ref. 2-13

2

6453207001

LIGHT MATERIAL BUCKET 1950MM1,35CBM - W/Ref. 3-6

3

0453201023

EDGE, CUTTING RIGHT

4

0453201024

EDGE, CUTTING LEFT

5

6397201004

SIDE-STRIP

6

0453202003

CUTTING EDGE

7

1290707025

WASHER B 15

8

1212251015

NUT M14

9

0453201030

TOOTH PROTECTION CPL W/Ref. 10-11

10

5249001010

SPRING

11

1395707827

COTTER PIN Was 5249001011

12

0453202002

BOLT-ON CUTTING EDGE

13

1062707236

BOLT M 14X50
