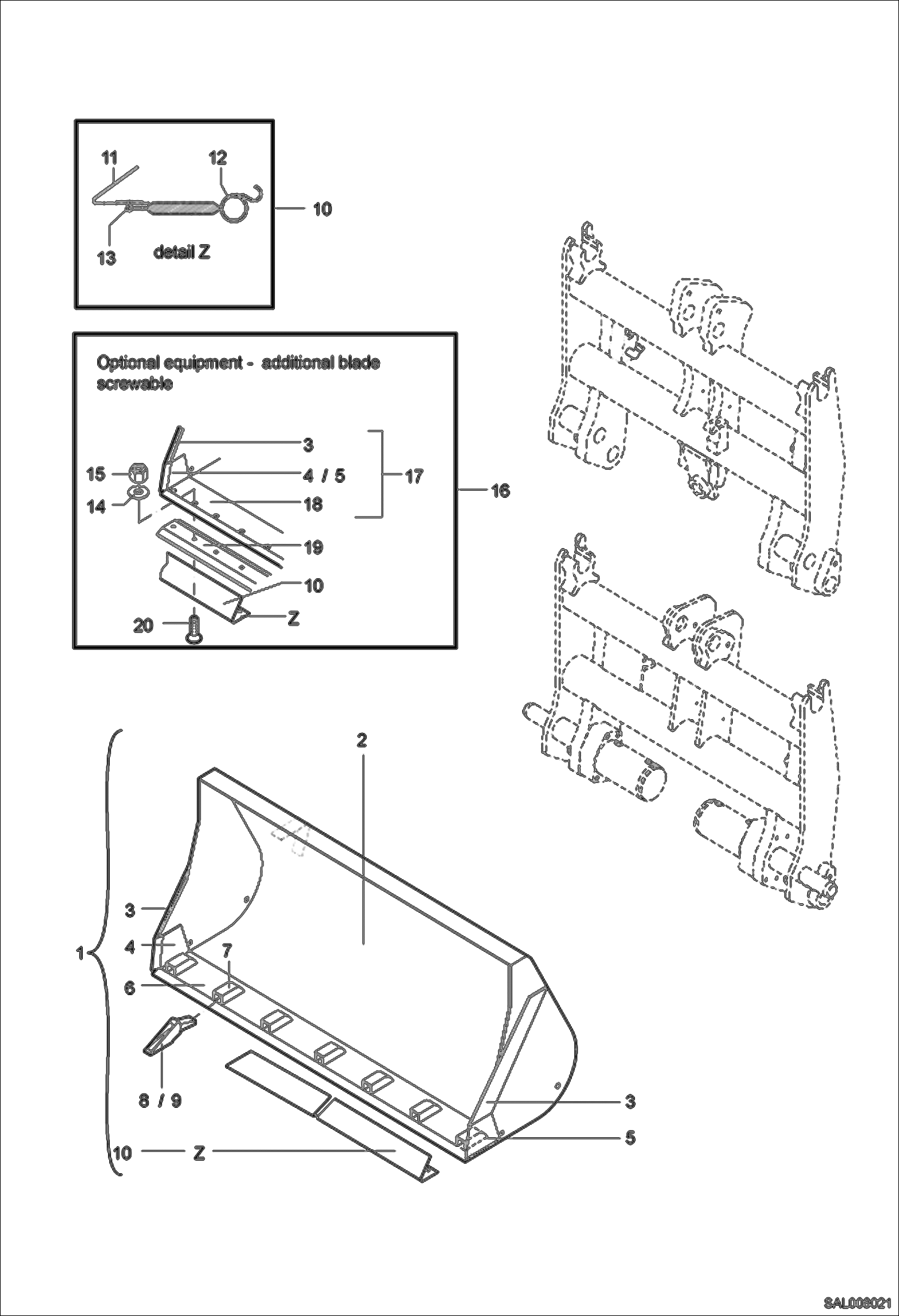

Запчасти Bobcat AL440 EARTH SHOVEL Навесное оборудование

1

6452203000

EARTH SHOVEL 1850MM 0,90 CBM - W/Ref. 2, 8-15

2

0452203001

SHOVEL, EARTH 1850MM W/Ref. 3-7

3

6393701004

SIDE-STRIP

4

0451201023

CUTTING EDGE RIGHT

5

0451201024

CUTTING EDGE LEFT

6

6337201205

CUTTING EDGE W/Ref. 7

7

5455204900

SLEEVE

8

5455204800

TOOTH

9

5455700096

TOOTH CUP Was 5455205000 - A

10

0453201030

TOOTH PROTECTION CPL W/Ref. 11-13

11

TOOTH PROTECTION

12

5249001010

SPRING

13

1395707827

COTTER PIN Was 5249001011

14

1290707025

WASHER B 15

15

1212251015

NUT M 14

16

6453204000

LOADING SHOVEL 1950MM - W/Ref. 14-15, 17, 19-22

17

0453204001

LOADING SHOVEL 1950MM - W/Ref. 3-5, 18

18

0453202003

CUTTING EDGE

19

0453202002

BOLT-ON CUTTING EDGE

20

1062707236

BOLT M 14X50
