Запчасти Bobcat AL440 REFILLING PUMP POWER UNIT

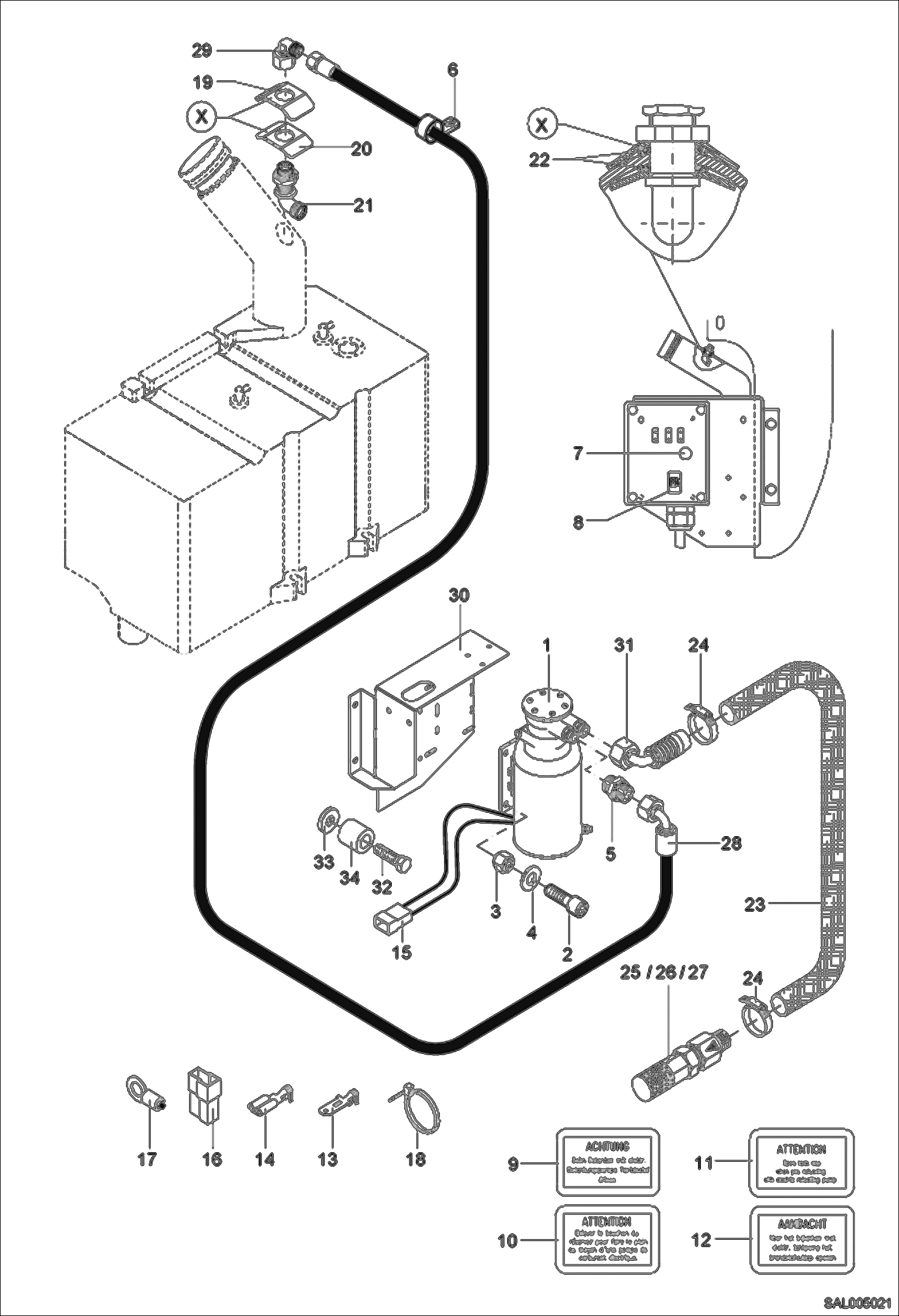

Схема запчастей Bobcat AL440 - REFILLING PUMP POWER UNIT

Артикул

Название

Примечание

Количество

1

5531001001

PUMP

2

1045707909

BOLT M 5X16

3

1212251007

NUT M 5

4

1290707012

WASHER 5,3

5

1915060264

FITTING

6

5000210400

HOSE CLIP 23,0

7

5050230700

HORN BUTTON

8

5358609113

LABEL

9

5358609074

MARKING PLATE

10

5358609075

SIGN PLATE

11

5358609073

SIGN PLATE

12

5358609256

SIGN PLATE

13

5350247311

TERMINAL MALE 6,3

14

5350246805

TERMINAL FEMALE 6,3

15

5350249534

FLAT PLUG 2POLIG

16

5050651211

FEMALE Was 5350249535 - A

17

5350246820

CABLE CONNECTOR M5

18

5350650294

BINDER 2,5X142

19

0451251005

PLATE

20

0451251006

PLATE

21

1931000595

FITTING

22

1970956828

O-RING 22X3X28

23

5531001002

HOSE

24

5660199200

HOSE CLIP 20 - 32

25

5531001006

VALVE

26

0190250020

HOSE

27

5558247074

PLUG

28

4112077351

HOSE

29

1924060154

ELBOW FITTING

30

6451251102

FIXATION BRACKET

31

5531001004

HOSE CONNECTOR

32

1007707824

BOLT M10X60

33

1343707059

WASHER 10,5X25X4

34

0188814218

SPACE BUSHING

Выбрано товаров: 34
