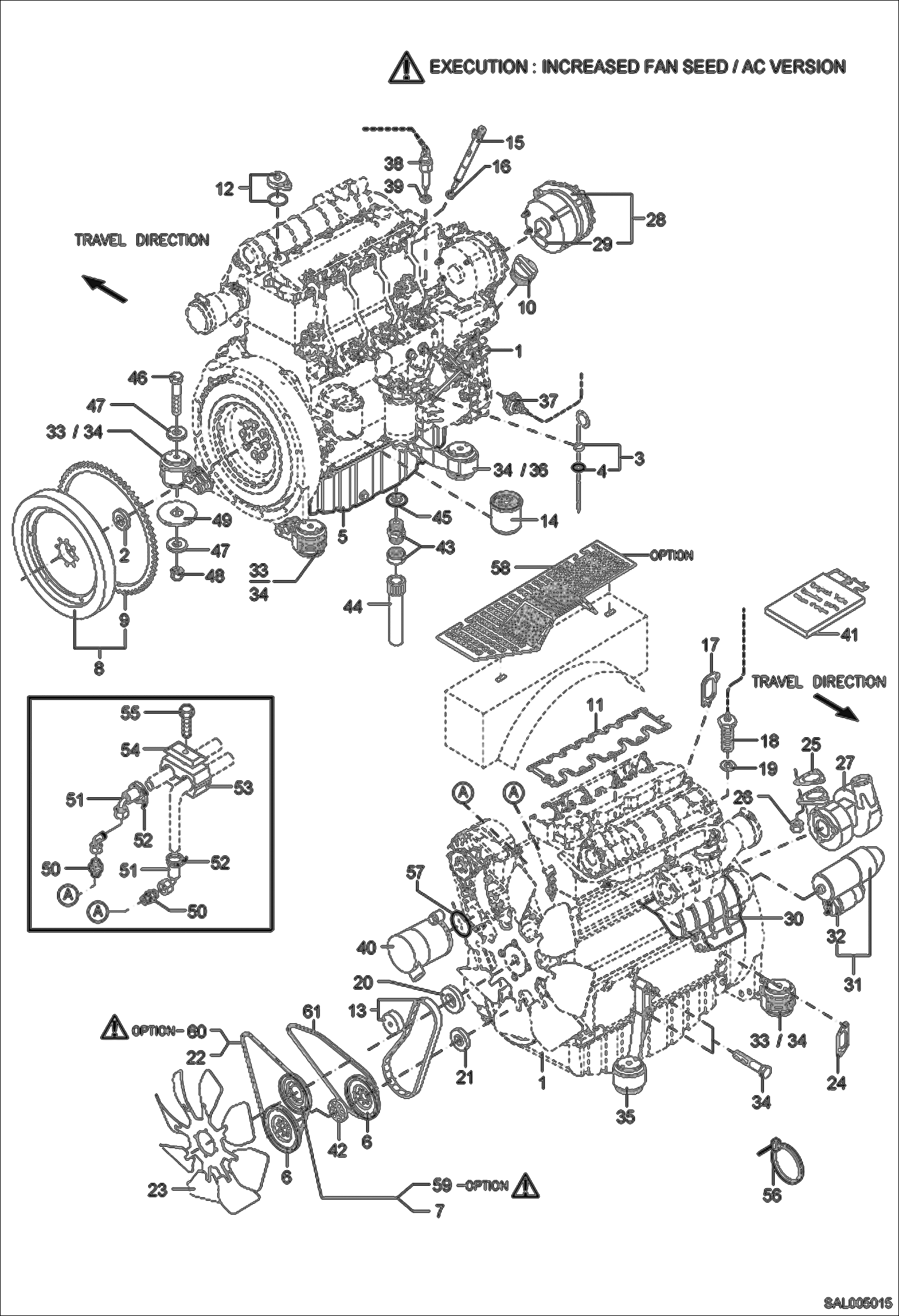

Запчасти Bobcat AL440 ENGINE ASSEMBLY POWER UNIT

1

5411662216

ENGINE

2

5411656287

ROT. SHAFT LIP SEAL

3

5411657084

OIL STICK

4

5411664006

O-SEAL

5

5411663058

OIL PAN

6

5411656509

PULLEY EUROPE

7

5411657026

PULLEY, DRIVE

8

5411657086

FLYWHEEL

9

5411657087

GEAR

10

5411657927

FILLER CAP

11

5411658001

GASKET Was 5411657056 - A

12

5411657057

BREATHER VALVE

13

5411657858

REPAIR KIT

14

5411642211

OIL FILTER ENGINE

15

5411664412

FUEL INJECTOR

16

5411657853

SEAL, INJ FUEL

17

5411657824

SEAL

18

5411656283

GLOW PLUG

19

5411657049

SEAL RING

20

5411656289

SEAL, SHAFT

21

5411656288

SEAL, SHAFT

22

5411657050

V-BELT, BREATHER

23

5411657091

COOLING FAN

24

5411656293

SEAL

25

5411656451

SEAL

26

5411656427

NUT

27

5411663059

TURBOCHARGER

28

5411663461

GENERATOR W/Ref. 29

29

5411663640

RELAY, VOLTAGE

30

5411657963

COOLING AIR BAFFLE

31

5411664007

STARTER W/Ref. 32

32

5411657136

RELAY

33

5411663653

MOUNT, ENG

34

5411656919

BOLT

35

5411657094

MOUNTING FOOT

36

5411657095

MOUNTING FOOT

37

5411663213

OIL PRESSURE SWITCH

38

5411663850

TEMP. TRANSMITTER

39

5411657871

O-SEAL

40

5411663643

ENGINE SHUT OFF

41

5411663644

KIT, GASKET

42

5411664039

DISTANCE PLATE

43

5366654555

DRAIN PLUG

44

5366654556

HOSE, DRAIN

45

1636815857

O-RING

46

1007707132

BOLT

47

1290707022

WASHER 13

48

1212251014

NUT M 12

49

0451015008

MOUNTING RING

50

1915060581

FITTING

51

5260063014

HOSE CONNECTOR

52

5603320315

CLIP

53

5660199788

HOSE CLIP

54

5660200230

COVER PLATE

55

1007707319

BOLT M 8x45

56

5350650280

BINDER

57

5411657871

O-SEAL

58

6453303002

PROTECTION GRID Option

59

5411663441

V-BELT DRIVE Option

60

5411663940

V-BELT 10X1325 - Option

61

5411656923

V-BELT
