Запчасти Bobcat AL440 BUCKET RETURN POSITIONER (HEIGHT LIMITATION) ELECTRIC INSTALLATION

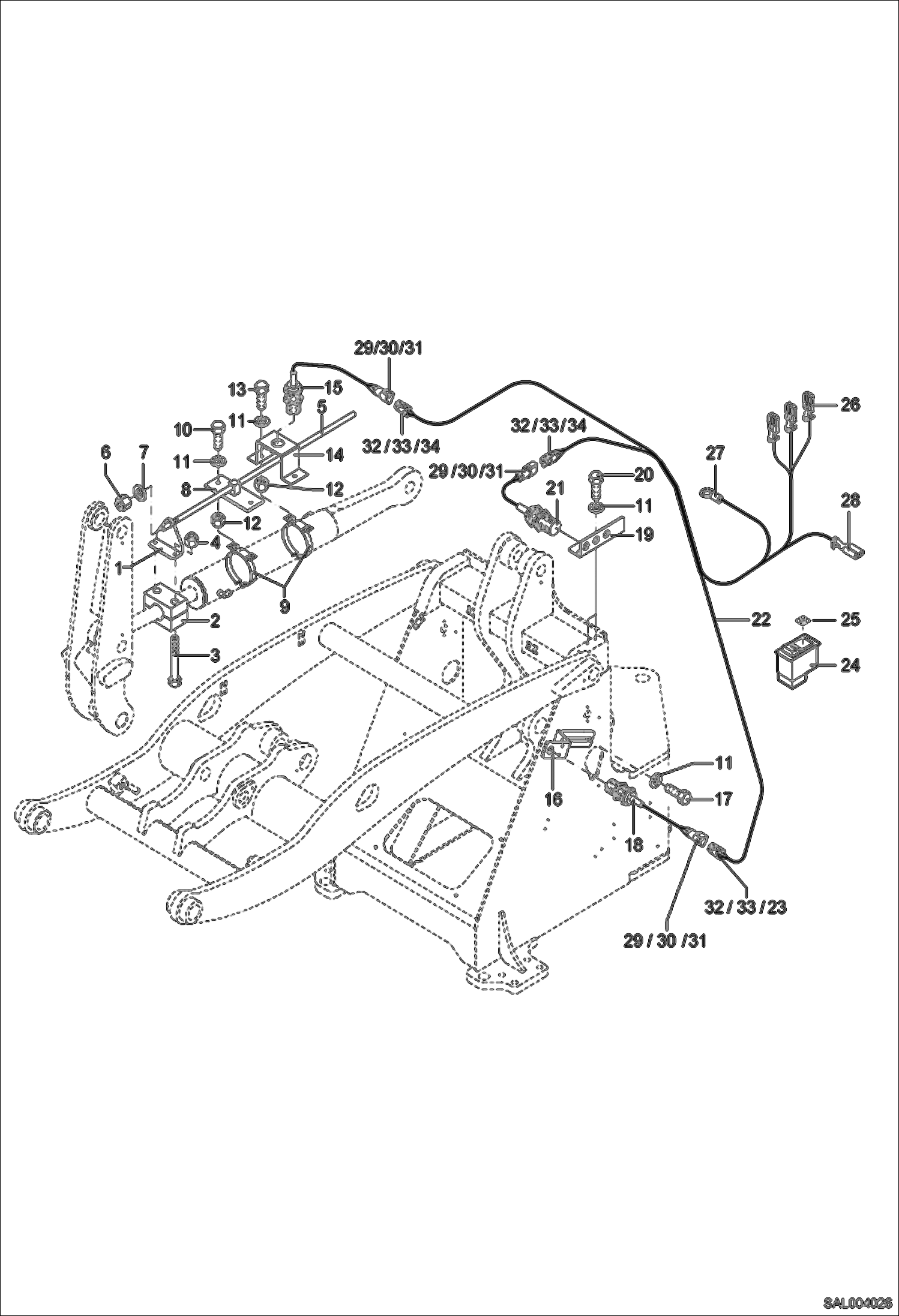

Схема запчастей Bobcat AL440 - BUCKET RETURN POSITIONER (HEIGHT LIMITATION) ELECTRIC INSTALLATION

Артикул

Название

Примечание

Количество

1

0453280003

BRACKET

2

5660199646

HOSE CLIP BAUGR.6

3

1007707914

BOLT M6X80

4

1212251009

NUT M 6

5

6453280005

THREADED ROD

6

1210707014

NUT M12

7

1343707061

WASHER 13X30X6

8

0465780002

BRACKET

9

5368654682

BRACKET W. CLAMP 115-123

10

1008707618

BOLT M 8x30

11

1343707057

WASHER 8,4

12

1212251011

NUT M 8

13

1008707318

BOLT M 8X25

14

0465780008

BRACKET

15

5350639047

PROXIMITY SWITCH

16

0453280004

BRACKET

17

1008707018

BOLT M 6X20

18

5350639018

SWITCH

19

0453280008

ANGLE

20

1008707817

BOLT M 8X16

21

5350639017

SWITCH

22

0453280014

WIRE HARNESS

23

5350555321

MALE TERMINAL

24

5050651356

ROCKER SWITCH

25

5358650264

SYMBOL

26

5350249752

TERMINAL, FEMALE

27

5350246610

CABLE CONNECTOR M8 BLAU

28

5350246805

TERMINAL FEMALE

29

5350555317

HOUSING (FEMALE) 3-FACH

30

5350555308

LOCK

31

5350555325

FEMALE TERMINAL

32

5350555315

HOUSING (MALE) 3-FACH

33

5350555307

LOCK 3-FACH

Выбрано товаров: 33
