Запчасти Bobcat AL440 2-STAGE GEARBOX ELECTRIC INSTALLATION

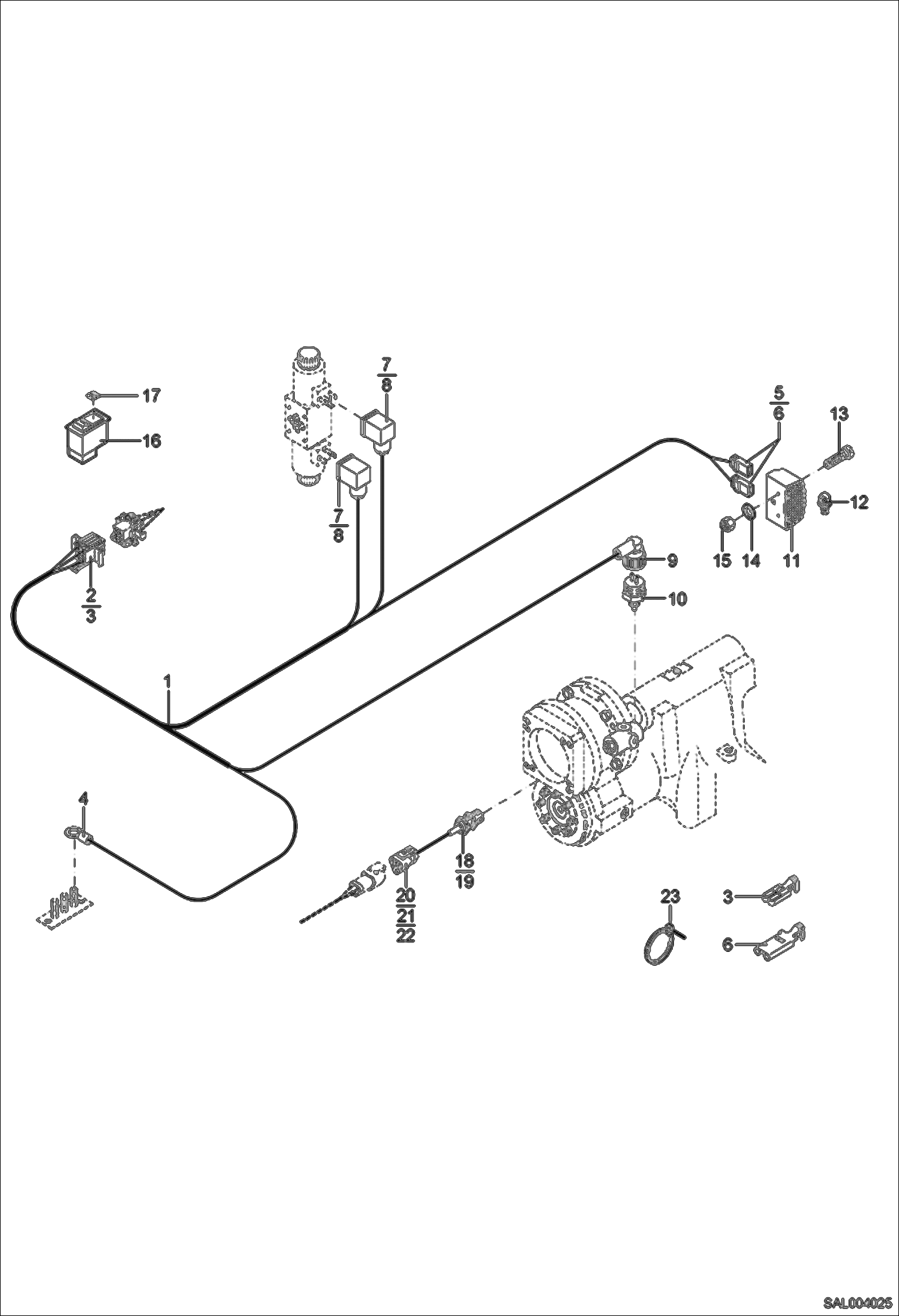

Схема запчастей Bobcat AL440 - 2-STAGE GEARBOX ELECTRIC INSTALLATION

Артикул

Название

Примечание

Количество

1

0451539015

WIRE HARNESS W/Ref. 2-9

2

5350249683

HOUSING (FEMALE)

3

5350249552

CONNECTOR

4

5350249597

CABLE CONNECTOR

5

5350249536

HOUSING 1-FACH

6

5350246805

TERMINAL FEMALE

7

5552659550

BOX

8

5552659513

SEAL

9

5904660742

PLUG (FEMALE)

10

5904658448

SWITCH

11

5259604880

LICENSE LIGHT

12

1813000004

BULB 12V 10W

13

1041707510

BOLT M 5X25

14

1290707012

WASHER 5,3

15

1212251007

NUT M5

16

5050651352

ROCKER SWITCH

17

5358650329

SYMBOL

18

5399010176

SWITCH, PROXIMITY Was 5472661591 - A

19

1908000004

COUNTER NUT M18X1,5

20

5350555315

HOUSING (MALE) 3-FACH

21

5350555307

LOCK

22

5350555321

MALE TERMINAL

23

5653093560

BINDER 4,8x200

Выбрано товаров: 23
