Запчасти Bobcat AL440 REAR CHASSIS ELECTRIC INSTALLATION

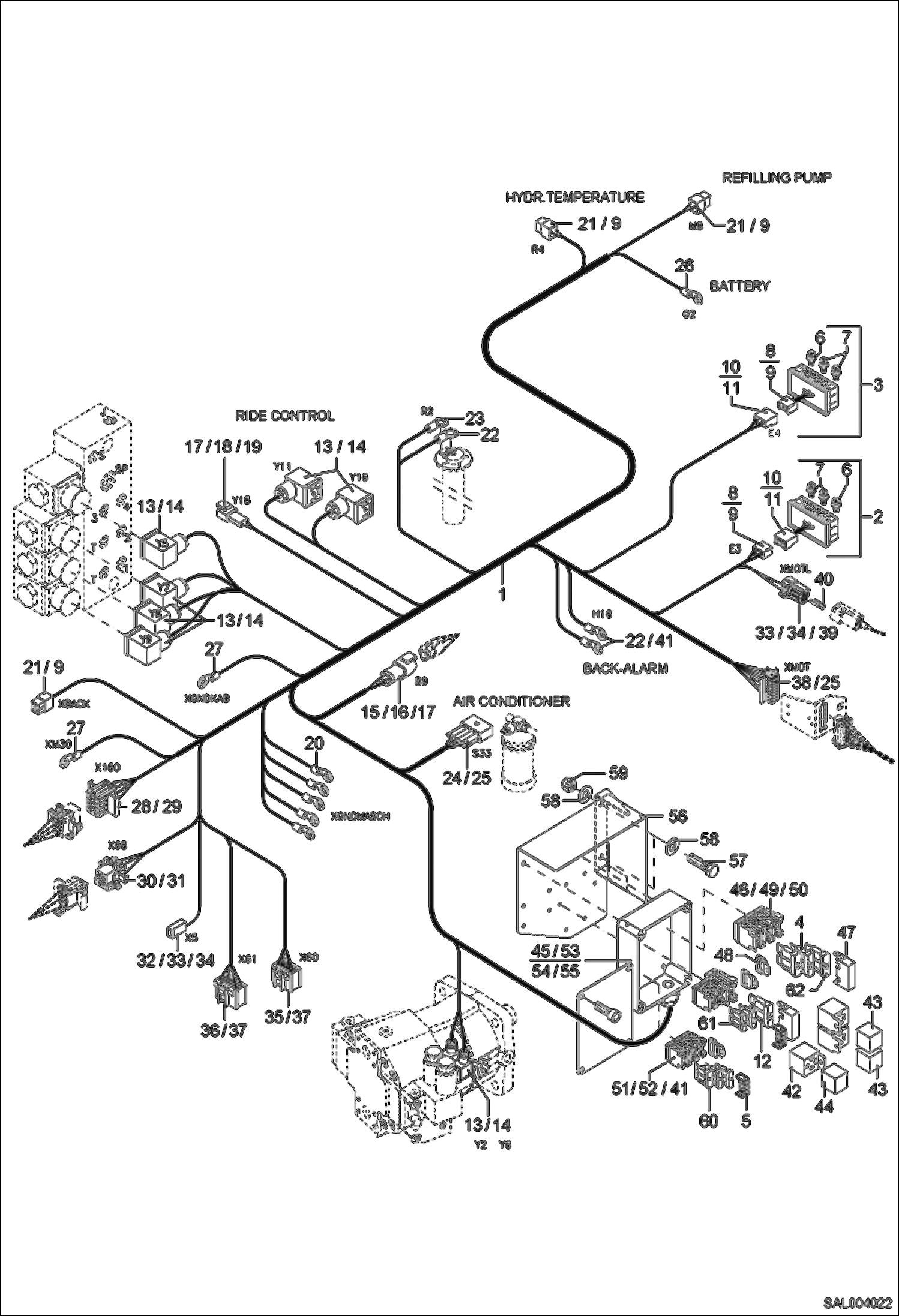

Схема запчастей Bobcat AL440 - REAR CHASSIS ELECTRIC INSTALLATION

Артикул

Название

Примечание

Количество

1

6451040410

WIRE HARNESS

2

5110660293

REVERSING LIGHT LEFT LINKS

3

5110660295

REVERSING LIGHT RIGHT RECHTS

4

5050661879

FUSE 80A

5

5050650560

COVER

6

5350642347

BULB

7

1813000005

BULB (SIGNAL LIGHT) 12V/21W

8

5050651209

HOUSING (FEMALE)

9

5350246805

TERMINAL FEMALE

10

5350249507

HOUSING (MALE)

11

5350247311

TERMINAL MALE 6,3

12

5050650479

FUSE 50A

13

5552659550

BOX

14

5552659513

SEAL

15

5350555317

HOUSING (FEMALE) 3-FACH

16

5350555308

LOCK

17

5350555325

FEMALE TERMINAL

18

5350555348

HOUSING (FEMALE)

19

5350555354

LOCK

20

5050226964

RING TONGUE

21

5350249513

PLUG 2POLIG

22

5350241104

CABLE CONNECTOR M 4 blau

23

5350246820

CABLE CONNECTOR M 5 BLAU

24

5350249875

HOUSING (FEMALE)

25

5350249552

CONNECTOR

26

5050226929

RING TONGUE M6

27

5050226965

RING TONGUE M8

28

5350249684

CONNECTOR

29

5350249552

CONNECTOR

30

5350249689

HOUSING(MALE)

31

5350249695

MAL TERMINAL

32

5050650529

HOUSING, FEMALE

33

5050650860

LOCK

34

5050650577

FEMALE TERMINAL

35

5350249753

CONNECTOR

36

5350249751

HOUSING (FEMALE)

37

5350249752

TERMINAL, FEMALE

38

5350249686

CONNECTOR

39

5050650858

HOUSING FEMALE

40

5050650861

LOCK

41

5050650558

FUSE CARRIER

42

5050247815

BRACKET RELAY

43

5050247369

RELAY

44

5050247856

RELAY

45

5208640257

STARTER bOX

46

5050650561

FUSE CARRIER

47

5050650562

COVER

48

5050650541

BRACKET

49

5050650576

FEMALE TERMINAL 4-6QMM

50

5050650577

FEMALE TERMINAL

51

5050650610

FEMALE TERMINAL 0,5-15QMM

52

5050650402

FEMALE TERMINAL 6QMM

53

1045707213

BOLT M 6X20

54

1212251009

NUT M 6

55

1290707014

WASHER 6,4

56

6451007005

BRACKET

57

1008707124

BOLT 10X30

58

1290707020

WASHER 10,5

59

1212251013

NUT M 10

60

5050650301

5A FUSE

61

5050650264

10A FUSE 10 A

62

5050650304

FUSE 30A

Выбрано товаров: 62
