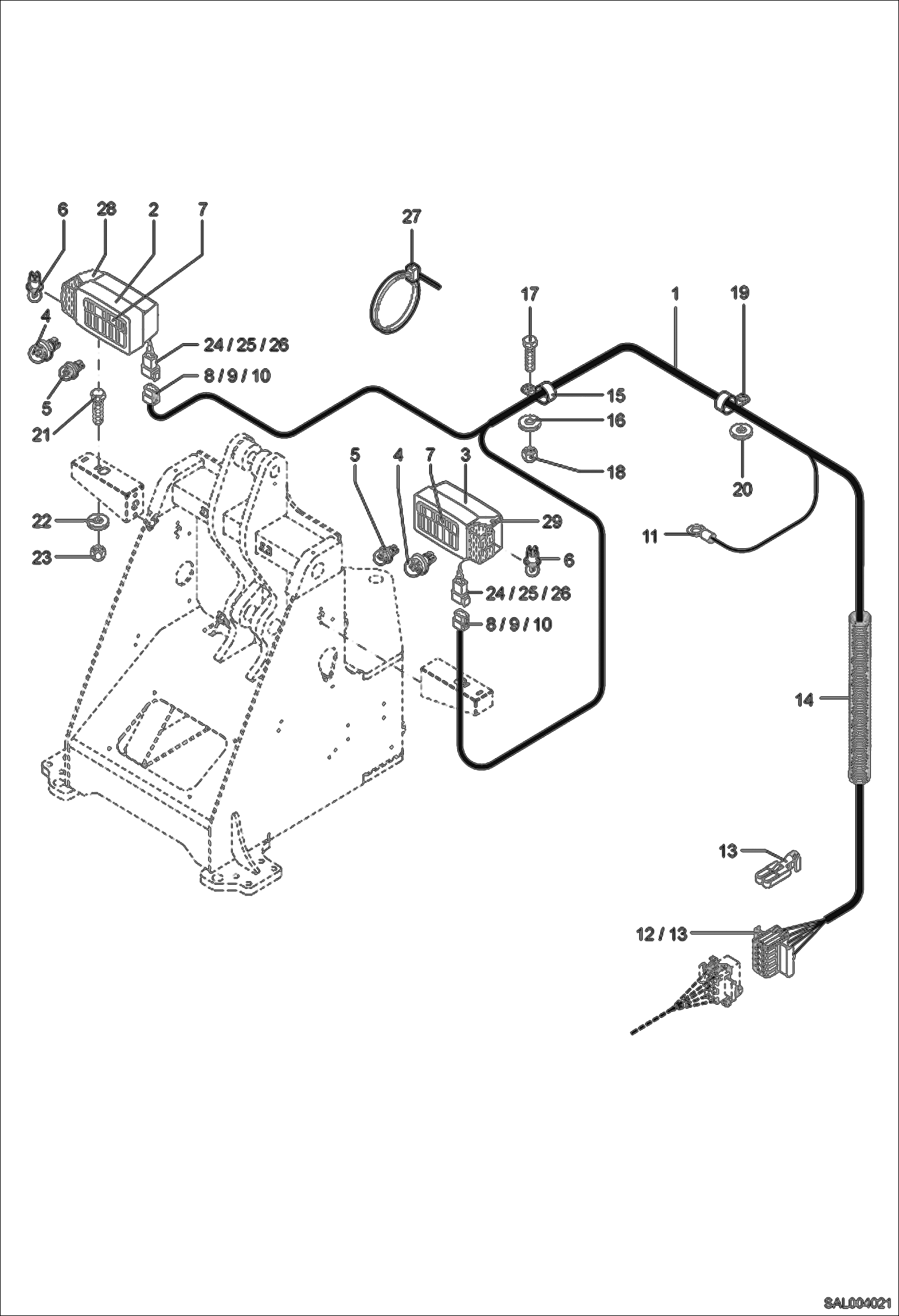

Запчасти Bobcat AL440 FRONT CHASSIS ELECTRIC INSTALLATION

1

5110662034

WIRE HARNESS FRONT CH. VORDERWAGEN

2

5110660147

HEAD LIGHT RIGHT W/Ref. 2, 4-6, 9, 23-28, 30

3

5110660148

HEAD LIGHT LEFT W/Ref. 3-6, 9, 23-28, 31

4

1813000022

HALOGEN BULB

5

1813000002

BULB SPHERICAL 12V/4W

6

1813000005

BULB (SIGNAL LIGHT) BLINKER

7

5110660190

REFLECTOR

8

5350555327

HOUSING (FEMALE)

9

5350555328

LOCK

10

5350555325

FEMALE TERMINAL

11

5350246610

CABLE CONNECTOR M8 BLAU

12

5350249554

HOUSING (FEMALE)

13

5350249552

CONNECTOR

14

5399000294

HOSE PART

15

5000136710

HOSE CLIP

16

1290707018

WASHER 8,4

17

1008707318

BOLT M 8X25

18

1212251011

NUT M8

19

5000096800

HOSE CLAMP 25.4

20

1343707057

WASHER 8,4

21

1008707618

BOLT M 8x30

22

1343707057

WASHER 8,4

23

1212251011

NUT M8

24

5350555342

HOUSING (MALE)

25

5350555344

LOCK

26

5350555321

MALE TERMINAL

27

5653093560

BINDER 4,8X200

28

5110660189

LENS, LIGHT SIGNAL RH

29

5110660188

LENS, LIGHT SIGNAL LH
