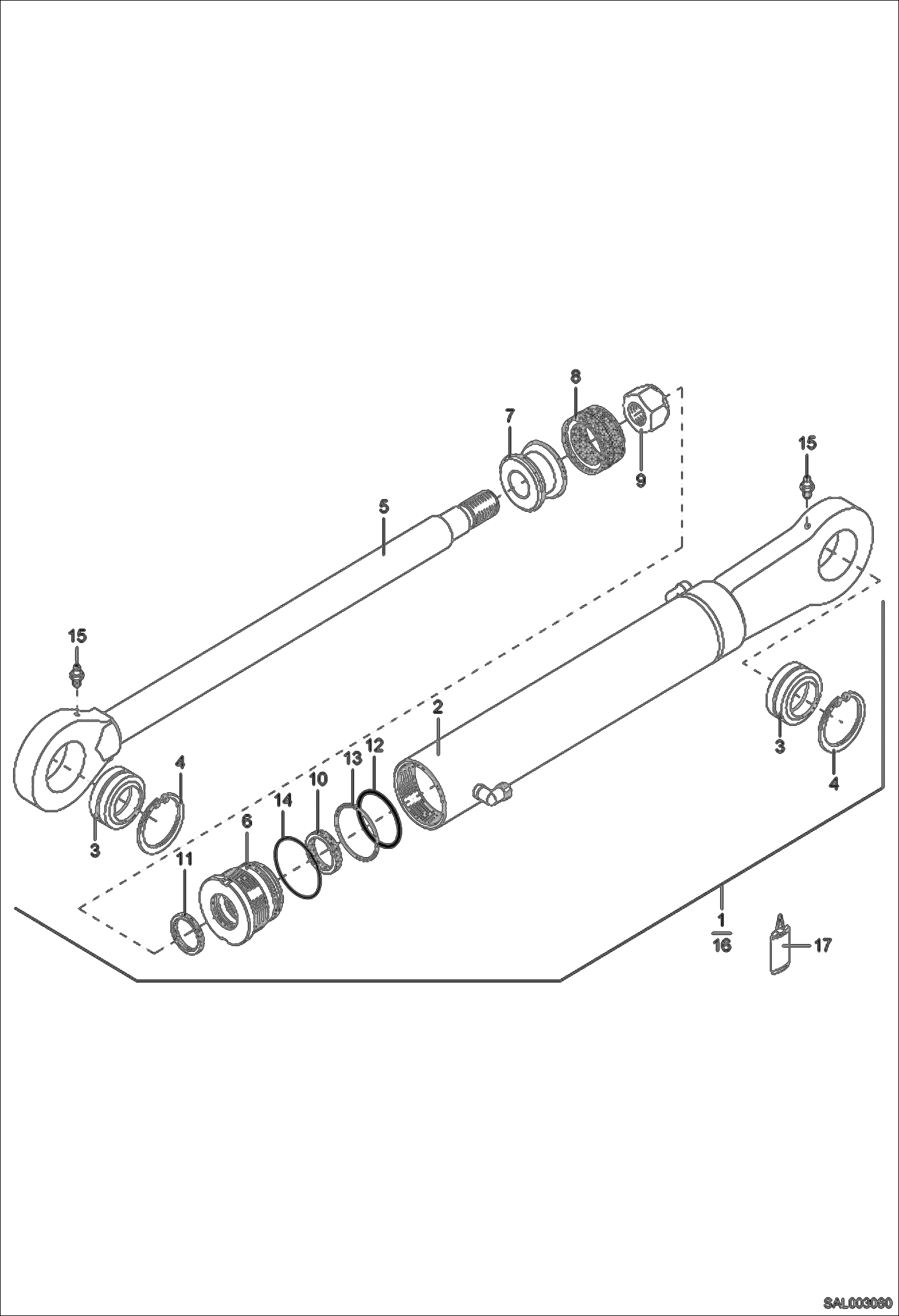

Запчасти Bobcat AL440 DUMPING CILINDER Z105/50 HYDRAULIC INSTALLATION

1

6501060000

HYDR. CYLINDER CPL. Z105/50 - W/Ref. 2-14

2

6501060003

PIPE

3

1950010413

LINKAGE BEARING

4

1456622363

CIRCLIP

5

6501060011

PISTON ROD

6

0501060017

BUSHING

7

0501041017

PISTON

8

1634935036

PISTON SEAL

9

1212251832

NUT M 36X3

10

1965956565

ROD SEAL HART

11

1974955050

SCRAPER RING

12

1971958518

O-RING 94,2X5,7X105,6

13

1966960109

BACK UP RING 105X95,7X1,7

14

1970958714

O-RING 106x2x110

15

1607003006

GREASE NIPPLE M 6X1

16

1976999389

SEAL KIT W/Ref. 8-14

17

GLUE NLA - Was MCS001036A - A
