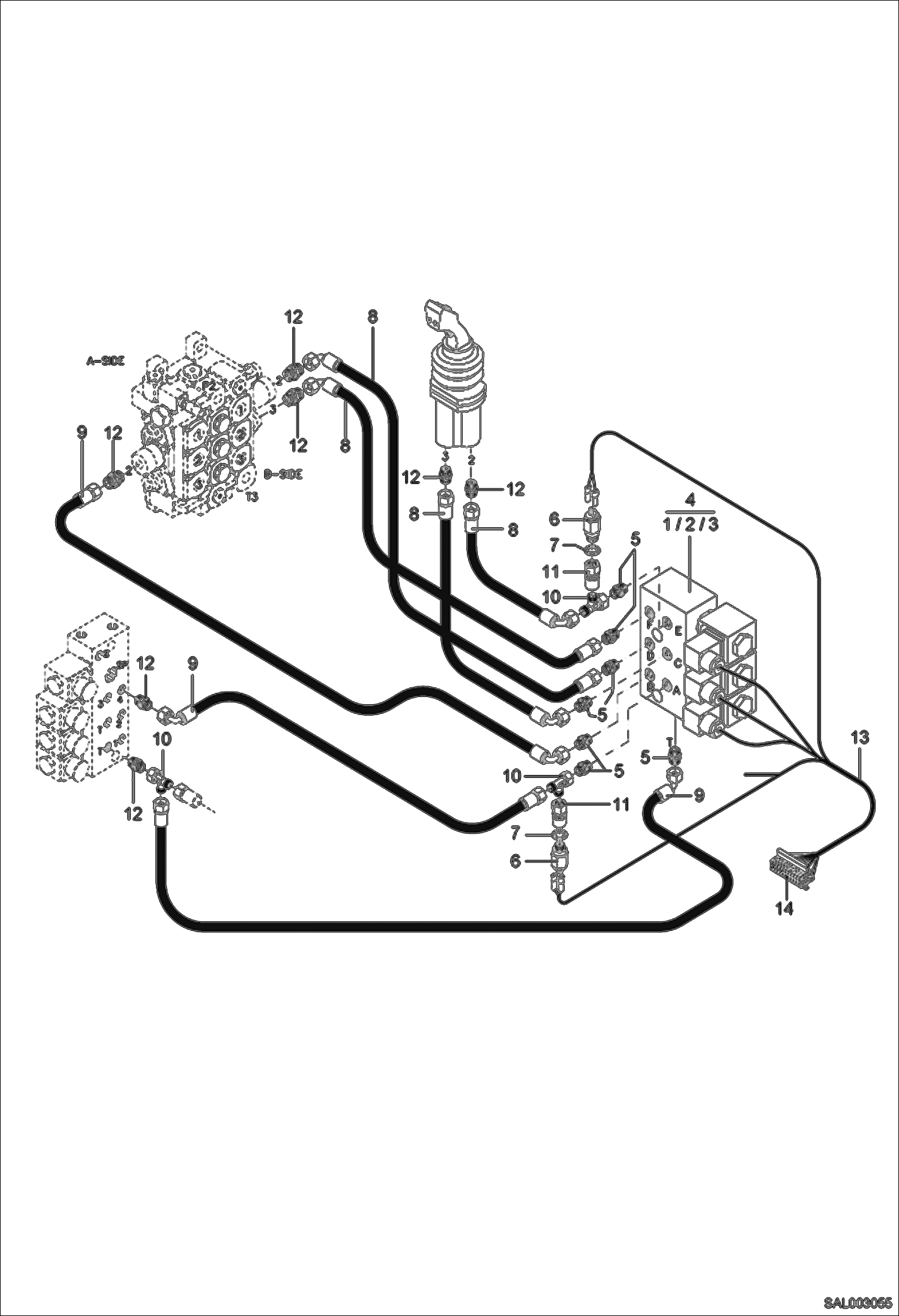

Запчасти Bobcat AL440 BUCKET RETURN POSITIONER WITH LIFTING HEIGHT LIMIT HYDRAULIC INSTALLATION

1

1045707225

BOLT M10X80

2

1343707059

WASHER 10,5X25X4

3

1212251013

NUT M10

4

5572100050

CONTROL VALVE

5

1915060255

FITTING

6

5050143175

PRESSURE SWITCH

7

1636815354

SEAL RING

8

4506140371

HOSE

9

4506097351

HOSE

10

1919000689

FITTING

11

1943000101

CONNECTION

12

1915000753

FITTING

13

0453280015

WIRE HARNESS

14

5350249687

CONNECTOR
