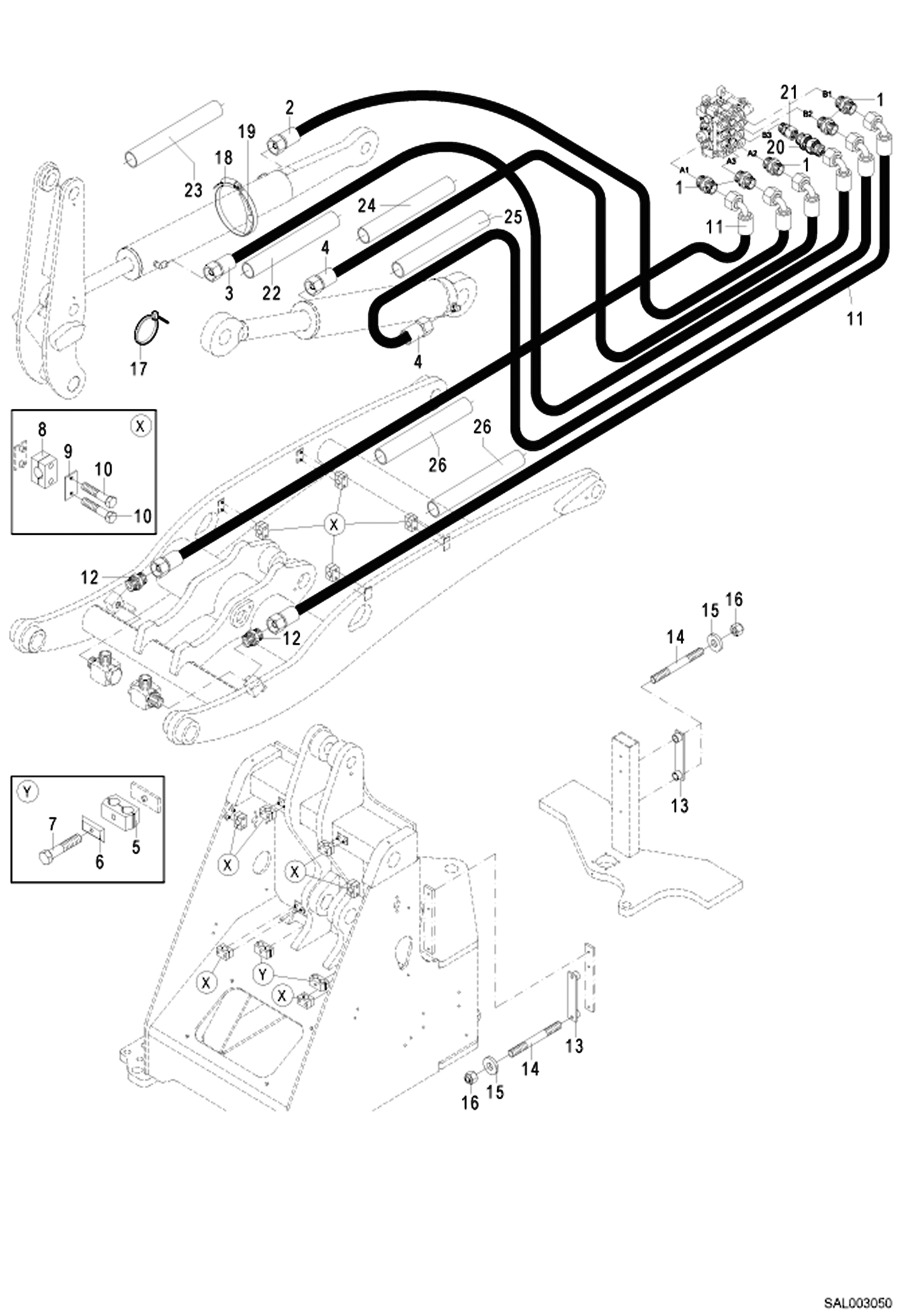

Запчасти Bobcat AL440 LOADING EQUIPMENT 1 HYDRAULIC INSTALLATION

1

1915060264

FITTING

2

4262330375

HOSE

3

4262400375

HOSE

4

4262290375

HOSE

5

5660199783

CLIP

6

5660200230

COVER PLATE

7

1007707319

BOLT M8X45

8

5660199787

HOSE CLIP

9

5660200130

COVER

10

1007707014

BOLT M 6X40

11

4262430375

HOSE

12

1915060563

FITTING

13

6337004001

HOSE CLIP

14

1123311519

STUD M 8X50

15

1343707057

WASHER

16

1212251011

NUT M 8

17

5350650280

BINDER 7,8X290

18

5660095400

HOSE CLIP

19

0110012050

RUBBER LAYER

20

0337012204

THROTTLE

21

1938060155

FITTING

22

0453715091

PROTECTION, HOSE Option

23

0453715092

PROTECTION, HOSE Option

24

0453715093

PROTECTION, HOSE Option

25

0453715094

PROTECTION, HOSE Option

26

0453715095

PROTECTION, HOSE Option
