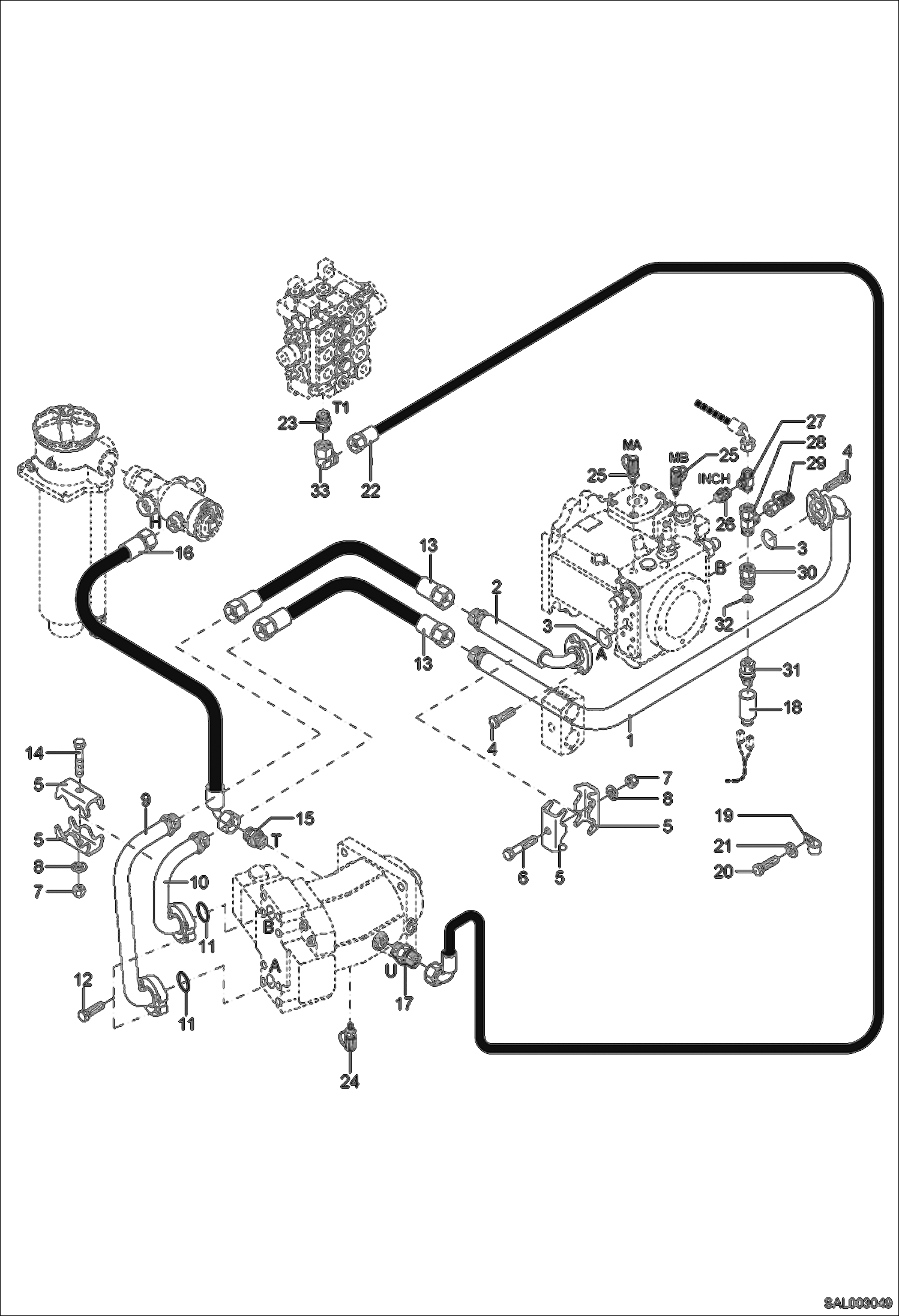

Запчасти Bobcat AL440 DRIVE HYDRAULIC INSTALLATION

1

5260310271

ELBOW

2

5260310269

ELBOW

2

INSTRUCTION NSS - Order 5260310269 - Was 5260310269-D - A

3

1971956318

O-RING

4

1008707124

BOLT M 10X30

5

0202627060

PIPE CLIP

6

1007707225

BOLT M 10X80

7

1212251013

NUT M10

8

1290707020

WASHER 10,5

9

5260310195

INTERMEDIATE PIECE

10

5260310197

INTERMEDIATE PIECE

11

1971956322

O-RING

12

1045707098

BOLT

13

4470101493

HOSE, 20 KM/H VERSION Standard 20 km/h version

13

4470110493

HOSE, 36 KM/H VERSION 36 km/h version

14

1007707125

BOLT M 10X75

15

1939060112

FITTING

16

4120112156

HOSE

17

1939060118

FITTING

18

5472661555

GUARD CAP

19

5000136700

HOSE CLIP

20

1008707018

BOLT M8X20

21

1343707057

WASHER 8,4

22

4112091351

HOSE

23

1915060264

FITTING

24

5066253810

CONNECTION, METER

25

5066253605

METER CONNECTION

26

1915000761

FITTING

27

1919060151

FITTING

28

1919060351

FITTING

29

5066234200

METER CONNECTION

30

1943000101

CONNECTION

31

7031402

SWITCH, PRESS Was 5050143173 - A

32

1636815354

SEAL RING 13X18X1,5

33

1924060154

ELBOW FITTING
