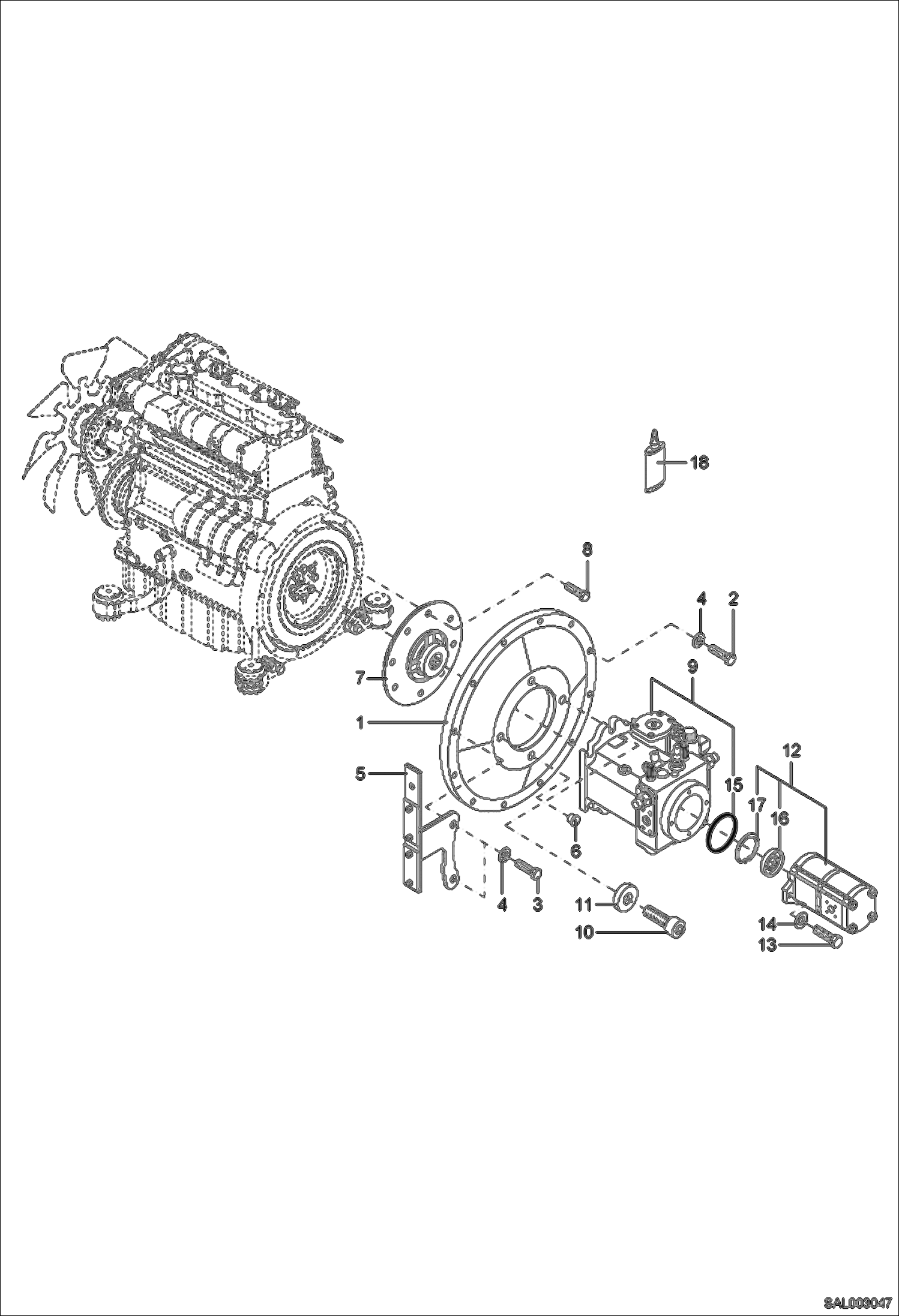

Запчасти Bobcat AL440 PUMPS MOUNTING HYDRAULIC INSTALLATION

1

5105660741

MOUNTED FLANGE

2

1008707324

BOLT M 10X35

3

1008707424

BOLT M10X40

4

1290707020

WASHER 10,5

5

0451017005

BRACKET

6

1980930918

PLUG

7

5105660739

COUPLING

8

1008707318

BOLT M8X25

9

5364662425

VARIABLE DISPLACEMENT PUMP W/Ref. 15

10

1045707141

BOLT M 16X45

11

0396017002

WASHER

12

5100620015

GEAR TYPE PUMP W/Ref. 16-17

13

1008707030

BOLT M 12X35

14

1290707022

WASHER 13

15

1971956233

O-RING

16

5100659033

SHAFT SEAL

17

5100659034

CIRCLIP

18

MCS001035A

GLUE SL 2042
